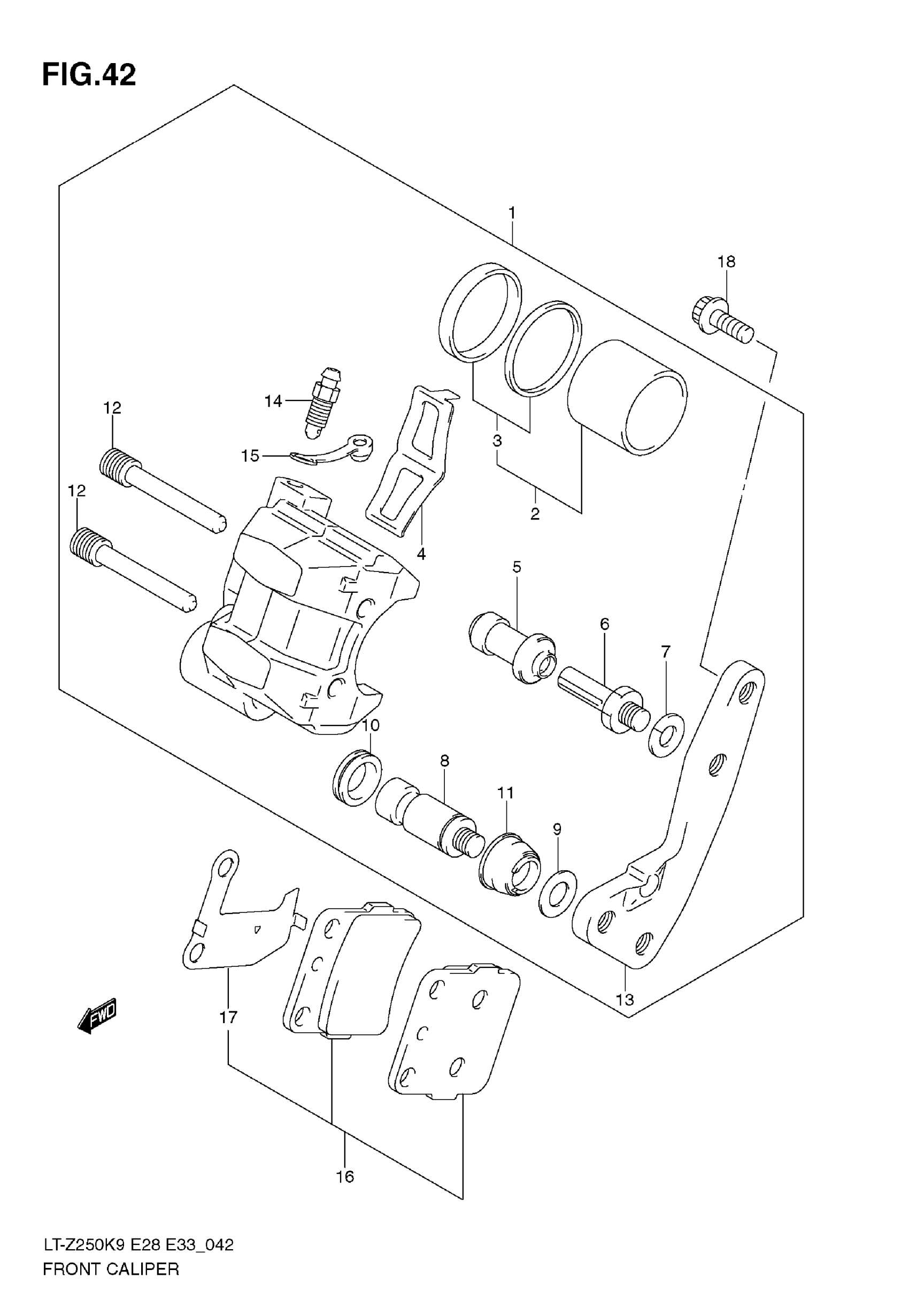

Suzuki LT-Z250 (2009) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-38F30-999

$263.63

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 15

59300-38F30-999

$263.63

2

PISTON SET

59100-38850

$40.51

3

SEAL SET, PISTON

59100-38860

$15.55

4

SPRING, PAD

59315-13A00

$12.43

5

BOOT

59386-13A00

$7.28

6

PIN

59382-13A00

$7.24

7

WASHER

59314-13A00

$2.28

8

PIN, SLIDE

59105-38F00

$22.32

9

SPRING

59306-13A00

$3.57

10

PLUG, DUST

59384-13A00

$4.93

11

BOOT

59303-13A00

$5.46

12

PIN

59345-00B20

$13.38

13

BRACKET, RH

59151-38F00

$60.38

13

BRACKET, LH

59351-38F00

$60.38

14

BLEEDER

59121-01A00

$7.99

15

CAP

59122-01A00

$3.97

16

PAD & SHIM SET, R

59300-42860

$68.63

16

PAD & SHIM SET, L | Includes Item(s) 17 - 17

59300-42870

$68.63

17

SHIM, RH

59371-13A00

$10.58

17

SHIM, LH

69372-00B20

$12.43

18

BOLT

09106-08174

$3.08
