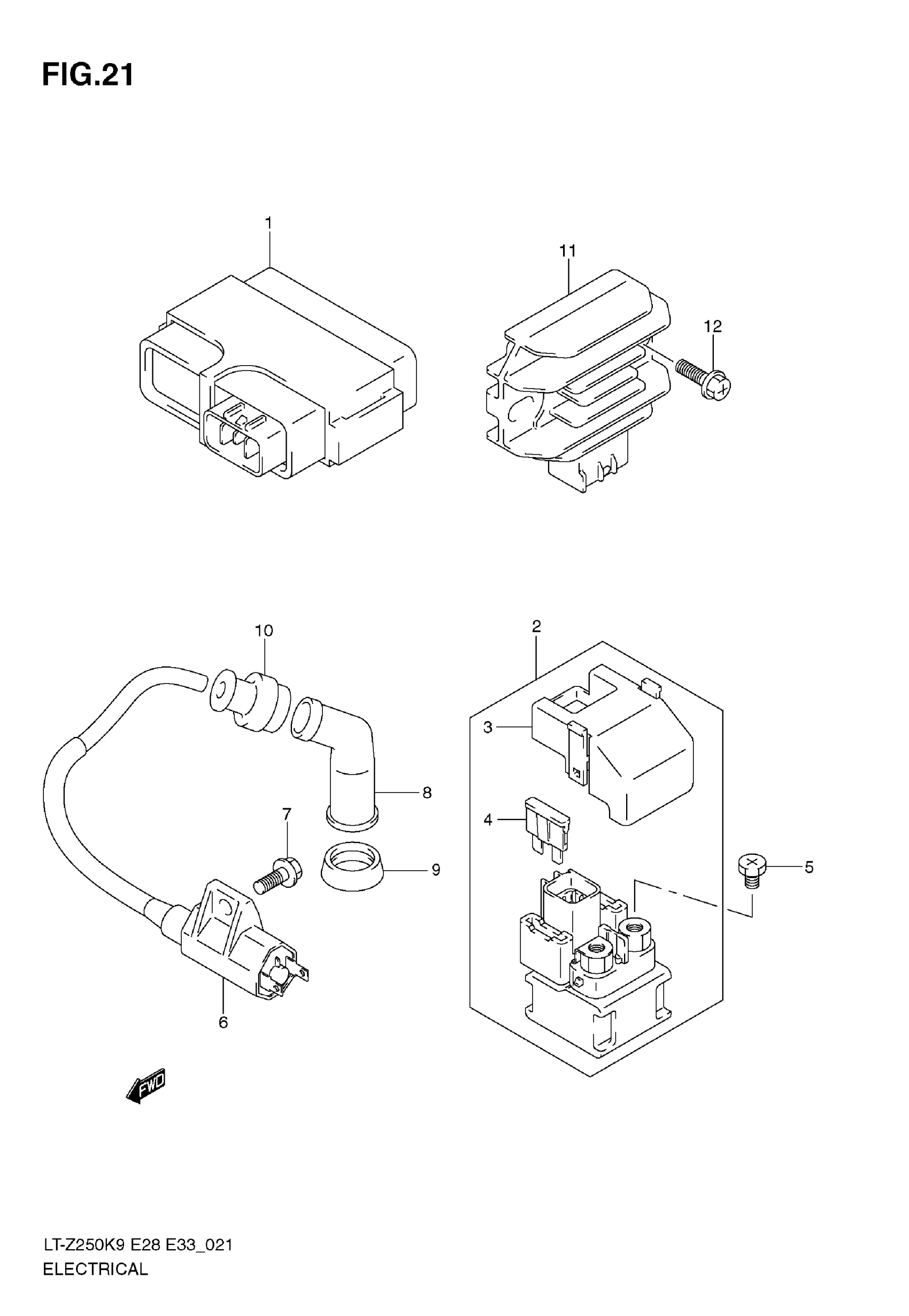

Suzuki LT-Z250 (2009) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT

32900-05G40

Unavailable

2

RELAY ASSY,STAR | Includes Item(s) 3 - 4 This part replaces 31800-47E00.

31800-47E01

$80.01

3

COVER

31861-47E00

$16.15

4

FUSE (20A)

09481-20102

$2.98

5

SCREW (6X8)

09128-06013

$1.49

6

COIL ASSY, IGNITION

33410-05G00

$95.37

7

BOLT

01550-0616B

$2.48

8

CAP, SPARK PLUG

33510-43010

$24.99

9

SEAL, SPARK PLUG

33541-47D00

$7.83

10

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

11

RECTIFIER ASSY

32800-05F20

$223.65

12

BOLT

02162-0625B

$2.10
