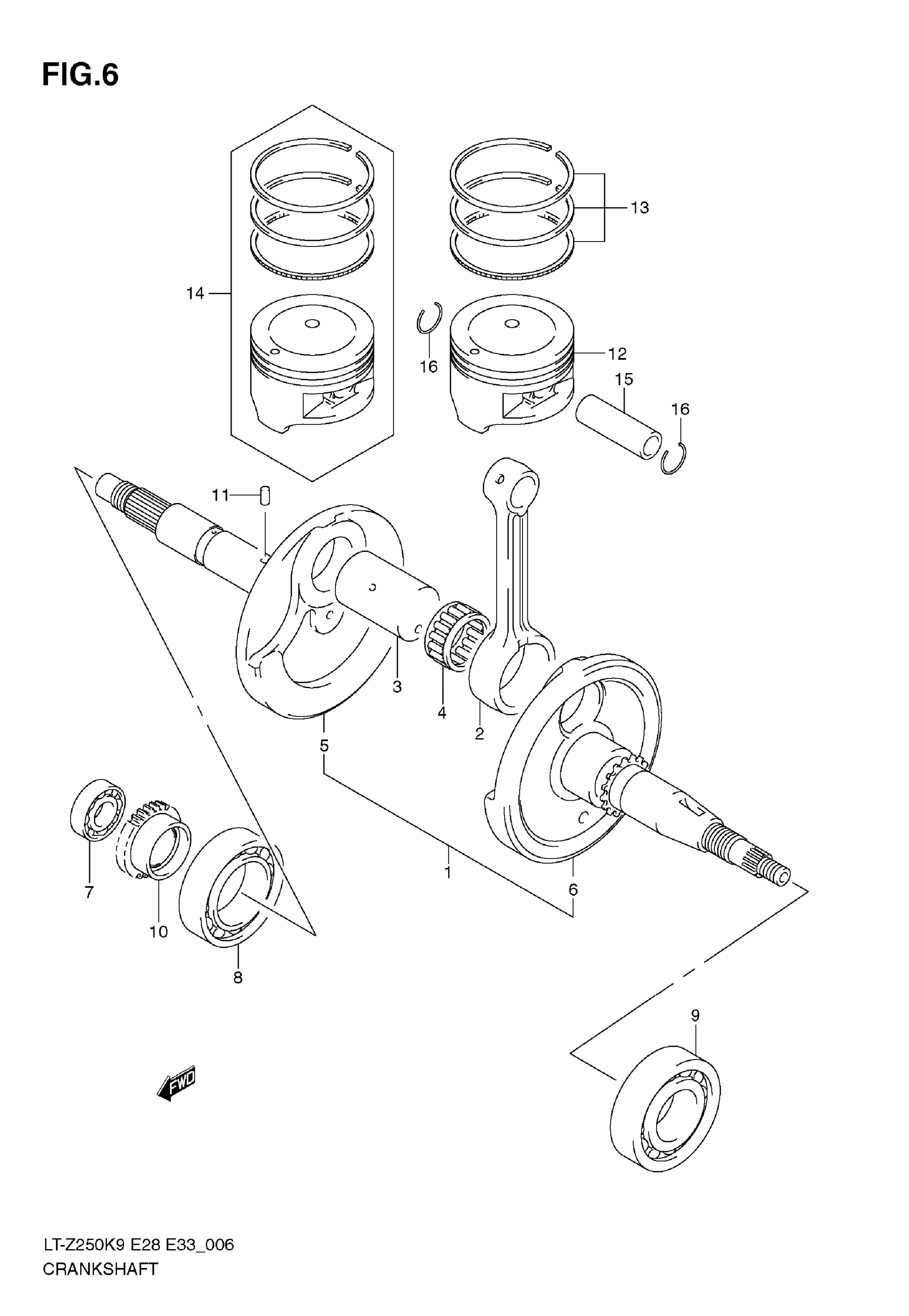

Suzuki LT-Z250 (2009) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6

12200-21G02

$1,024.20

2

ROD, CONNECTING

12161-19B03

$134.48

3

PIN, CRANK

12210-21G00

$49.18

4

BEARING (30X39X18)

09263-30033-0B0

$76.77

5

CRANKSHAFT, RH

12220-21G01

Unavailable

6

CRANKSHAFT, LH

12261-21G00

Unavailable

7

BEARING, RH (15X35X11)

09262-15038

$32.90

8

BEARING, MDL (28X68X18)

09262-28014

$57.95

9

BEARING, LH (35X72X17)

09262-35073

$41.40

10

GEAR, OIL PUMP DRIVE (NT:30)

16321-19B00

Unavailable

11

PIN (4X13.8)

04221-04089

$1.49

12

PISTON

12111-05G01-0F0

$76.08

13

RING SET, PISTON (STD)

12140-05G00

$41.60

13

RING SET, PISTON (OS:0.5) | OPT

12140-05G00-050

$52.77

14

PISTON SET (OS:0.5) | OPT

12100-05G01-050

$133.98

15

PIN, PISTON

12151-22A02

$12.15

16

CIRCLIP

09381-16004

$1.58
