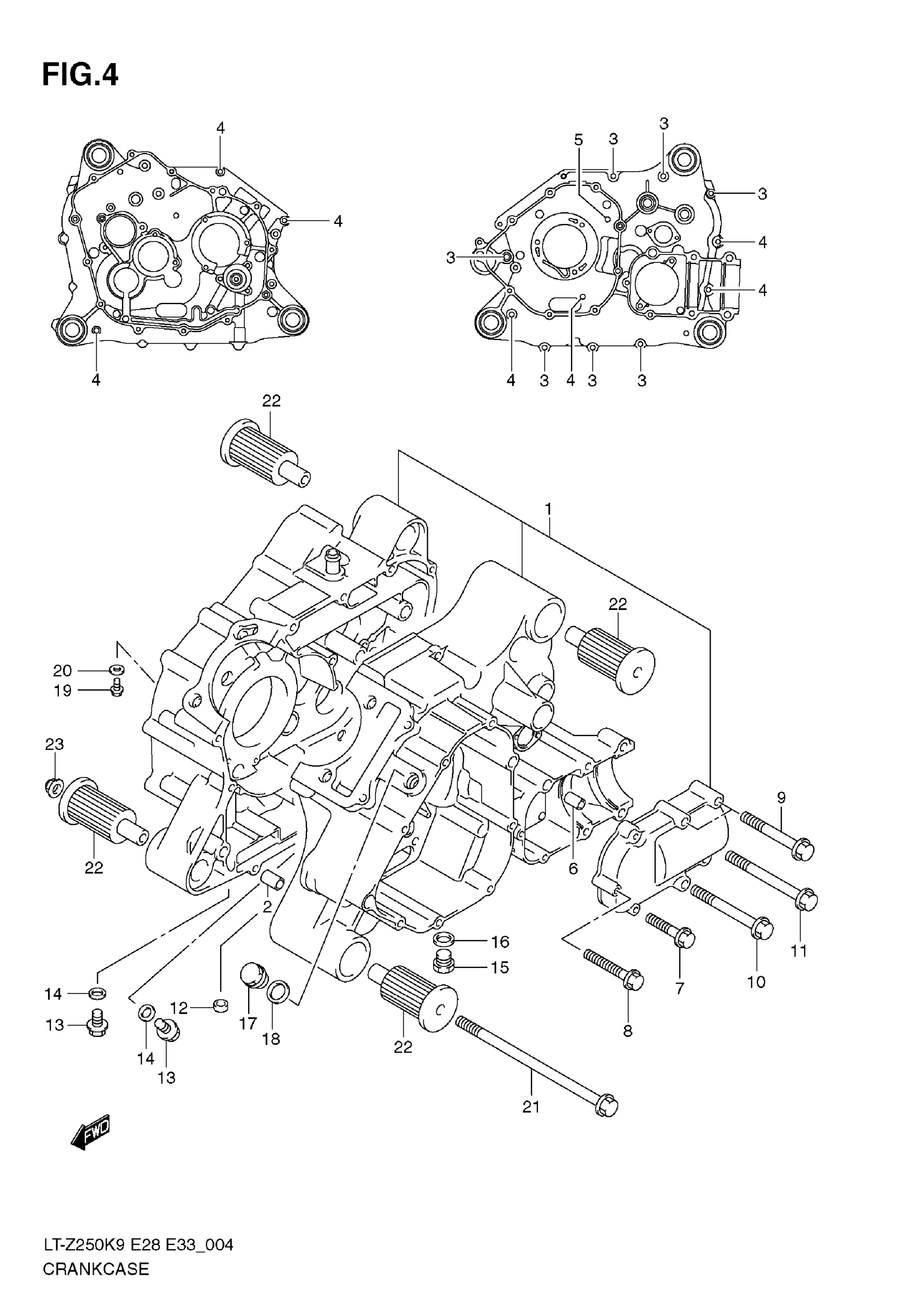

Suzuki LT-Z250 (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 11

11301-05821

Unavailable

2

PIN (10.4X13X18)

04211-11189

$1.78

3

BOLT

01547-0640B

$2.75

4

BOLT

01547-0655B

$2.75

5

BOLT

01547-0665B

$3.18

6

PIN, SEC CASE

04211-11189

$1.78

7

BOLT, SEC CASE

01547-0630B

$2.73

8

BOLT, SEC CASE

01547-0640B

$2.75

9

BOLT, SEC CASE

01550-0850B

$4.17

10

BOLT, SEC CASE

01550-0860B

$4.85

11

BOLT, SEC CASE

01550-0870B

Unavailable

12

JET, OIL GALLERY MISSION

11329-09410

Unavailable

13

PLUG, OIL GALLERY

01550-0610B

$2.42

14

GASKET

09168-06018

$1.77

15

PLUG, OIL GALLERY

01550-1016B

$4.10

16

GASKET

09168-10002

$2.13

17

PLUG, TDC

09247-14015

$4.45

18

GASKET

09168-14002

$2.26

19

PLUG, OIL DRAIN

09247-12104

$2.73

20

GASKET

09168-12002

$1.59

21

BOLT

09103-10278

$12.40

22

BUSH,ENG MTG This part replaces 11651-05G01.

11651-05G02

$19.12

23

NUT

09159-10115

$3.55
