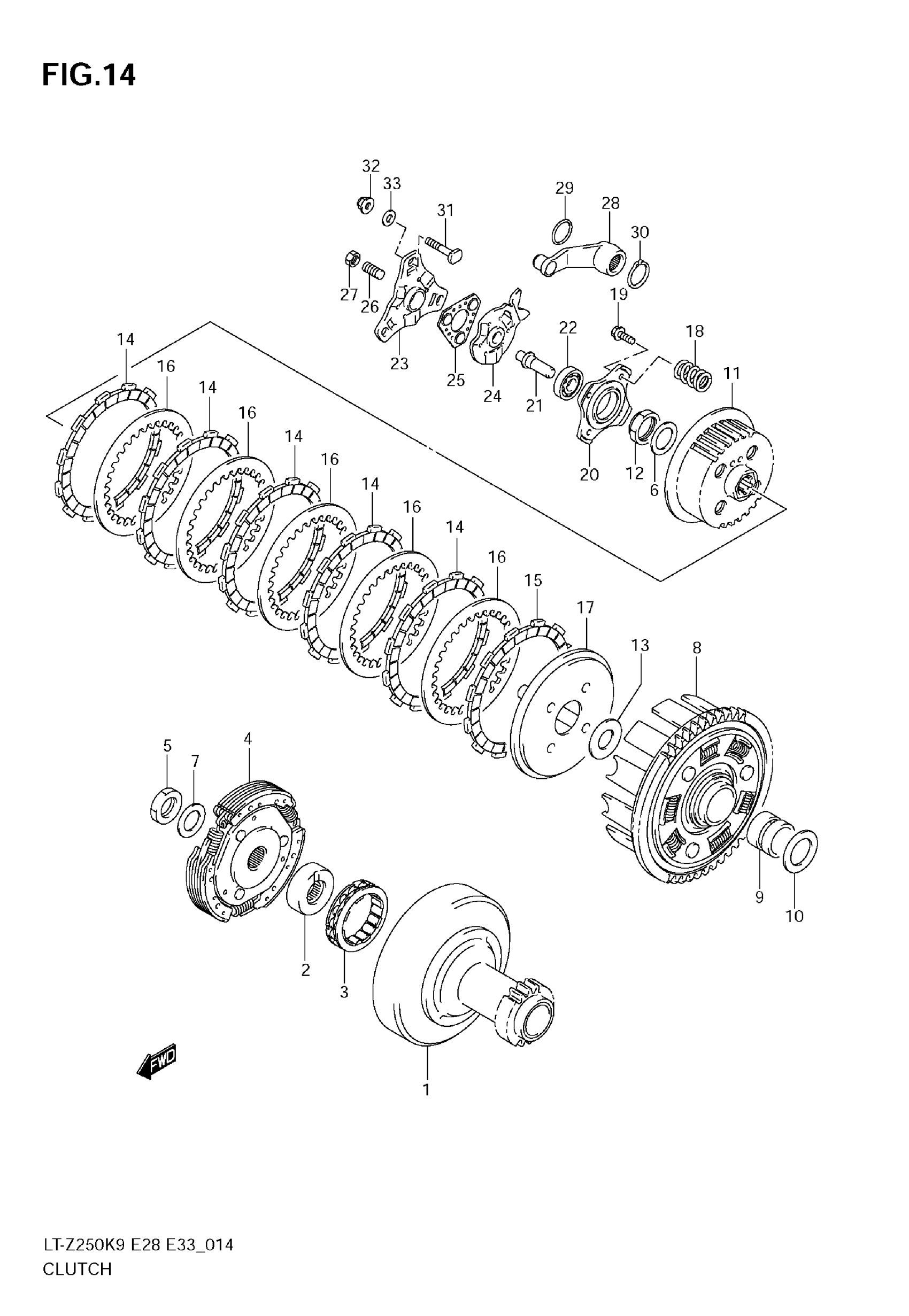

Suzuki LT-Z250 (2009) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:21)

21110-21G00

$216.72

2

RACE, INNER

21631-19B11

$36.17

3

CLUTCH, ONE WAY

21273-19B10

$163.13

4

CLUTCH ASSY

21500-05G10

$278.25

5

NUT

09140-18012

$8.37

6

LOCK WASHER (ID:20.1)

09164-20007

$4.60

7

LOCK WASHER (ID:18.3) This part replaces 09164-18007.

09164-18001

$3.24

8

GEAR ASSY, PRIMARY (NT:64)

21200-21G00

Unavailable

9

SPACER (22X28X23)

09180-22035

$21.22

10

WASHER (22X36X1.0)

09181-22251

$3.78

11

HUB, CLUTCH

21410-05G00

$121.77

12

NUT

09140-20019

$5.77

13

WASHER

08211-20323

$3.03

14

PLATE, DRIVE

21441-22A01

$14.73

15

PLATE, DRIVE NO.2

21441-29B01

$26.70

16

PLATE, DRIVEN (T:2.0)

21451-36200

$7.58

17

DISC, PRESSURE

21462-24501

$53.90

18

SPRING

09440-19017

$4.33

19

BOLT

01550-0620B

$2.39

20

PLATE, RELEASE

21465-24500

$19.15

21

PIECE, PUSH

23121-05G00

$25.33

22

BEARING (12X28X8)

09262-12001

$18.47

23

GUIDE, BALL OUTER

23231-05G21

Unavailable

24

GUIDE, BALL INNER

23211-05G21

$40.10

25

BALL, RELEASE

23250-31003

$28.18

26

SCREW, ADJUSTER

09134-08009

$3.87

27

NUT, ADJUSTER

09140-08021

$2.63

28

ARM, RELEASE

23220-05G20

Unavailable

29

WASHER, CLUTCH RLSE ARM

08211-10243

$3.85

30

CIRCLIP, CL RLSE ARM

08331-3114A

$1.91

31

BOLT

09119-06103

$2.05

32

NUT

08313-2006B

$2.85

33

SEAL, BOLT

09168-06023

$2.35
