Description

Price

1

CAM SHAFT

12711-18A00

$182.90

2

SPROCKET (NT:32)

12741-21G00

$49.22

3

PIN

09261-05005

$1.49

4

WASHER, SPROCKET

12747-05202

$2.51

5

BOLT (6X10.5)

09100-06166

$3.03

6

C-RING

09390-22002

$2.27

7

ARM ASSY, VALVE ROCKER | Includes Item(s) 8 - 9

12850-25C00

$43.16

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

SHAFT, VALVE ROCKER ARM

12861-05201

$19.72

11

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

12

WASHER

09164-12021

$2.03

13

GASKET

09168-06023

$2.35

14

BOLT

02162-0625B

$2.10

15

VALVE, INTAKE

12911-05G00

$39.68

16

VALVE, EXHAUST

12912-18A00

$62.11

17

SPRING, VALVE

12921-21G00

$12.73

18

RETAINER, SPRING

12931-19B01

$11.95

19

COTTER, VALVE

12932-24400

$1.94

20

SEAT, SPRING

12933-19B00

$8.30

21

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70

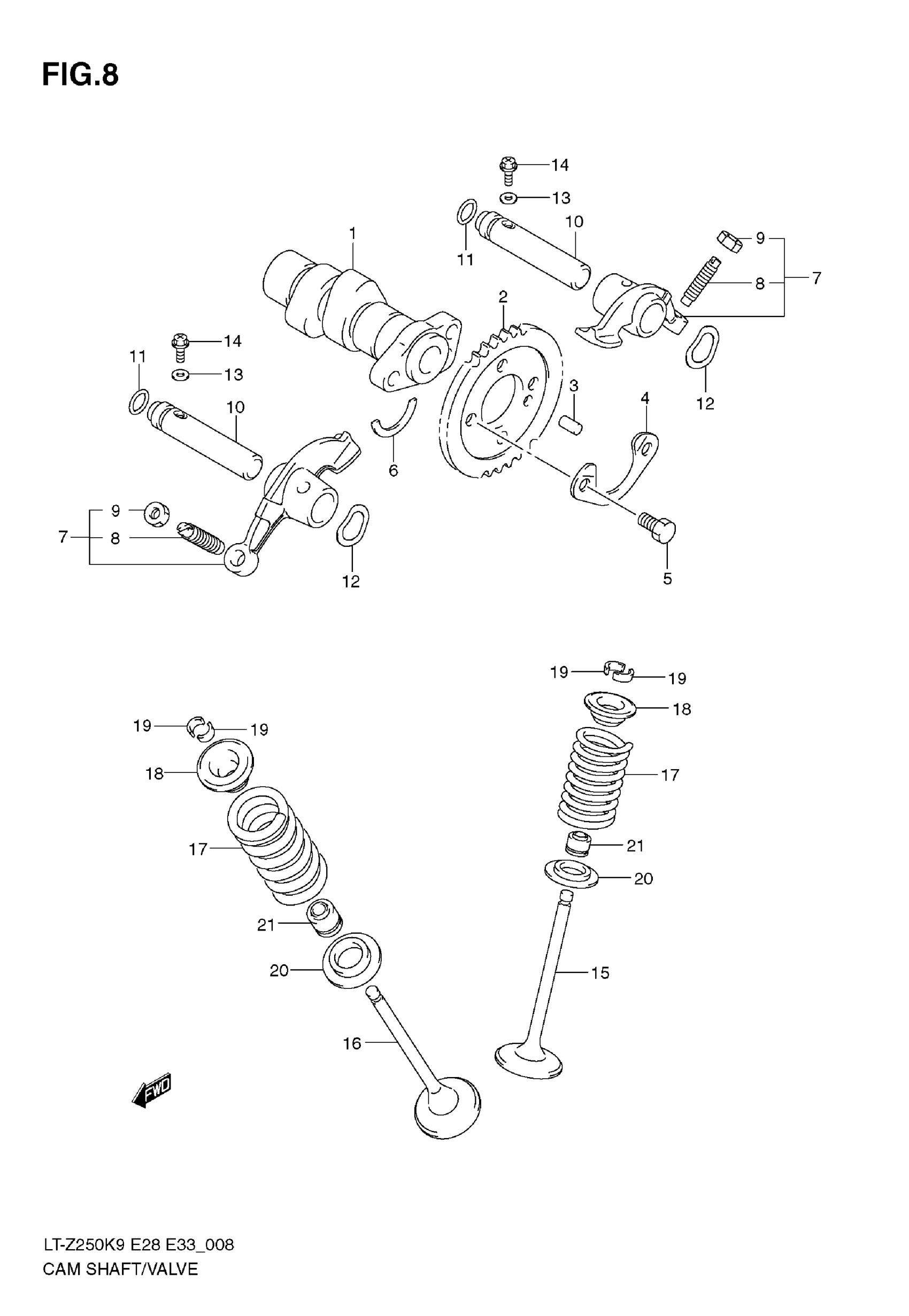

Suzuki LT-Z250 (2009) CAM SHAFT/VALVE Diagram
