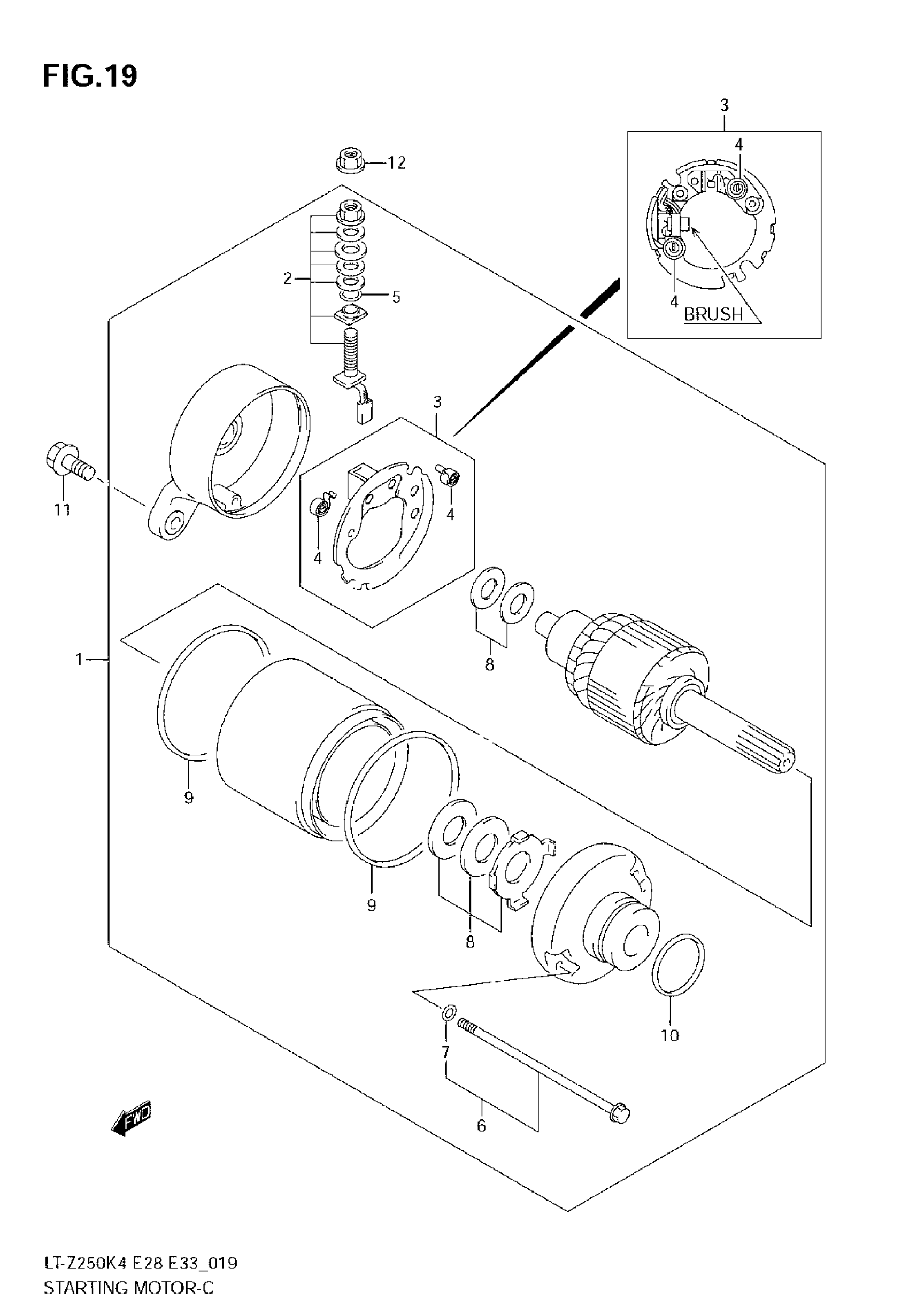

Suzuki LT-Z250 (2008) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-02C10

$649.60

2

BRUSH TERMINAL SET

31130-13E00

$44.18

3

BRUSH HOLDER SET

31132-33E00

$67.07

4

SPRING, BRUSH

31135-31300

$4.96

5

O RING

31143-49040

$3.71

6

BOLT SET

31280-19F00

$20.45

7

O RING

31156-13E00

$4.35

8

WASHER SET

31170-19B10

$12.57

9

O RING

31264-13E00

$6.68

10

O RING (D:3.1,ID:24.4)

09280-25002

$1.99

11

BOLT

01547-0625B

$2.45

12

NUT

08361-3506A

$1.80
