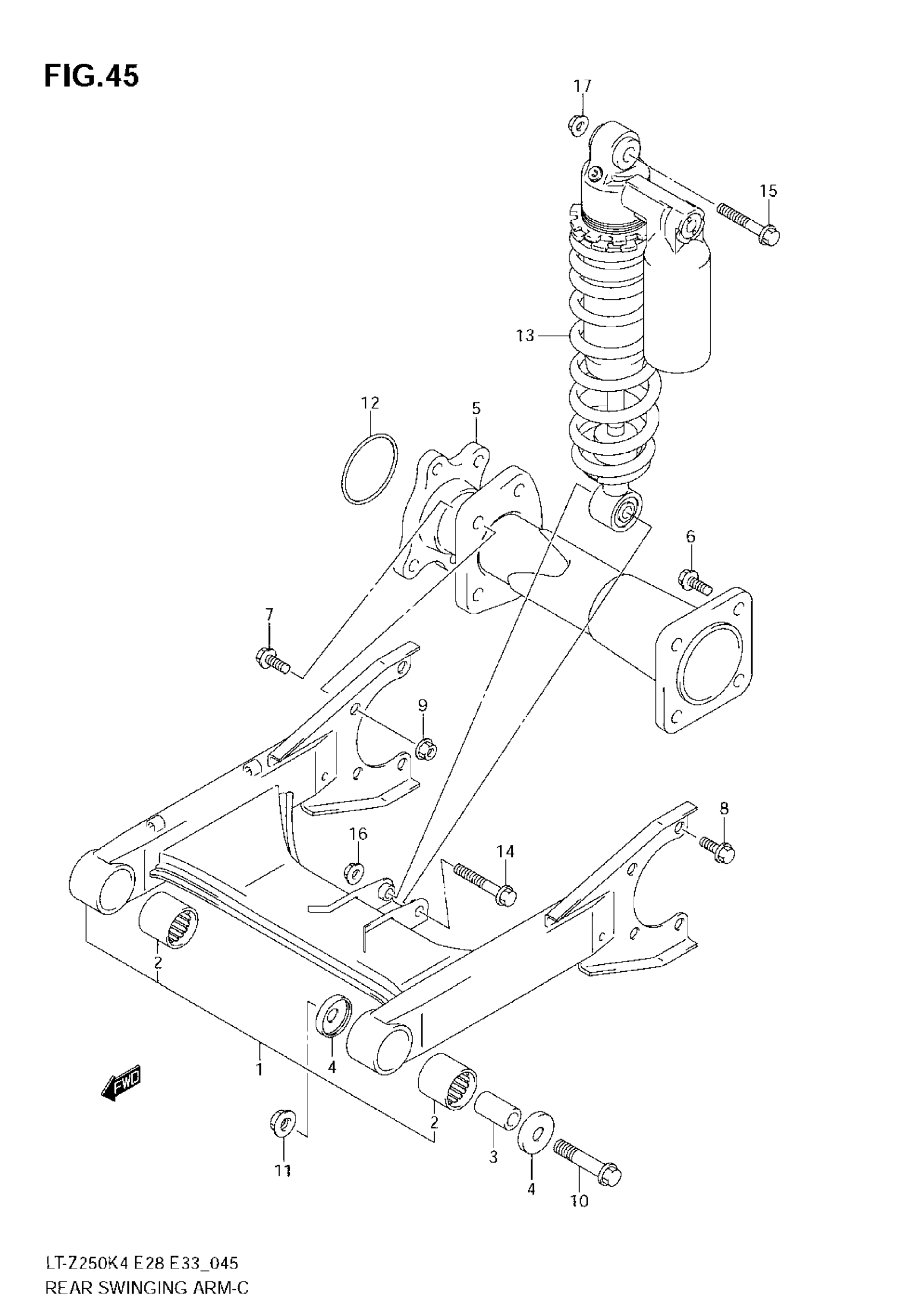

Suzuki LT-Z250 (2008) REAR SWINGINGARM (MODEL K4/K5) Diagram

#

Description
Price

1

SWINGINGARM SET, REAR | Includes Item(s) 2

61100-21841-YD8

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

3

SPACER, RR SWGARM PIVOT

61251-21G00

$22.52

4

COVER This part replaces 62624-08D00.

62624-08D01

$8.73

5

HOUSING, RR AXLE, R

61300-21G00-YD8

Unavailable

6

BOLT, AXLE HOUSING

09103-10364

Unavailable

7

BOLT, RR SWGARM BRACKET, R

09103-10216

$4.17

8

BOLT, RR SWGARM BRACKET, L

09103-10313

Unavailable

9

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

10

BOLT, PIVOT

09103-12072

$8.73

11

NUT, PIVOT

09159-12054

$7.44

12

O RING, RR AXLE HOUSING REAR

09280-70005

$6.23

13

NO DESCRIPTION AVAILABLE | MODEL K4 E33 This part replaces 62100-21G20-37W.

62100-21G21-37W

Unavailable

13

ABSORBER ASSY, REAR SHOCK (RED) | MODEL K4 E28

62100-21G30-37W

Unavailable

13

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL K5 E33 FOR YU1

62100-21G21-163

Unavailable

13

ABSORBER ASSY, REAR SHOCK (WHITE) | MODEL K5 E33 FOR 30H

62100-21G21-28W

Unavailable

13

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL K5 E28 FOR YU1

62100-21G31-163

Unavailable

13

ABSORBER ASSY, REAR SHOCK (WHITE) | MODEL K5 E28 FOR 30H

62100-21G31-28W

Unavailable

14

BOLT | LOWER

09103-10213

$5.77

15

BOLT | UPPER

09103-12042

$8.50

16

NUT, REAR SWGARM BRACKET | LOWER This part replaces 09159-10058.

09159-10115

$3.55

17

NUT | UPPER

08319-3112A

$3.76
