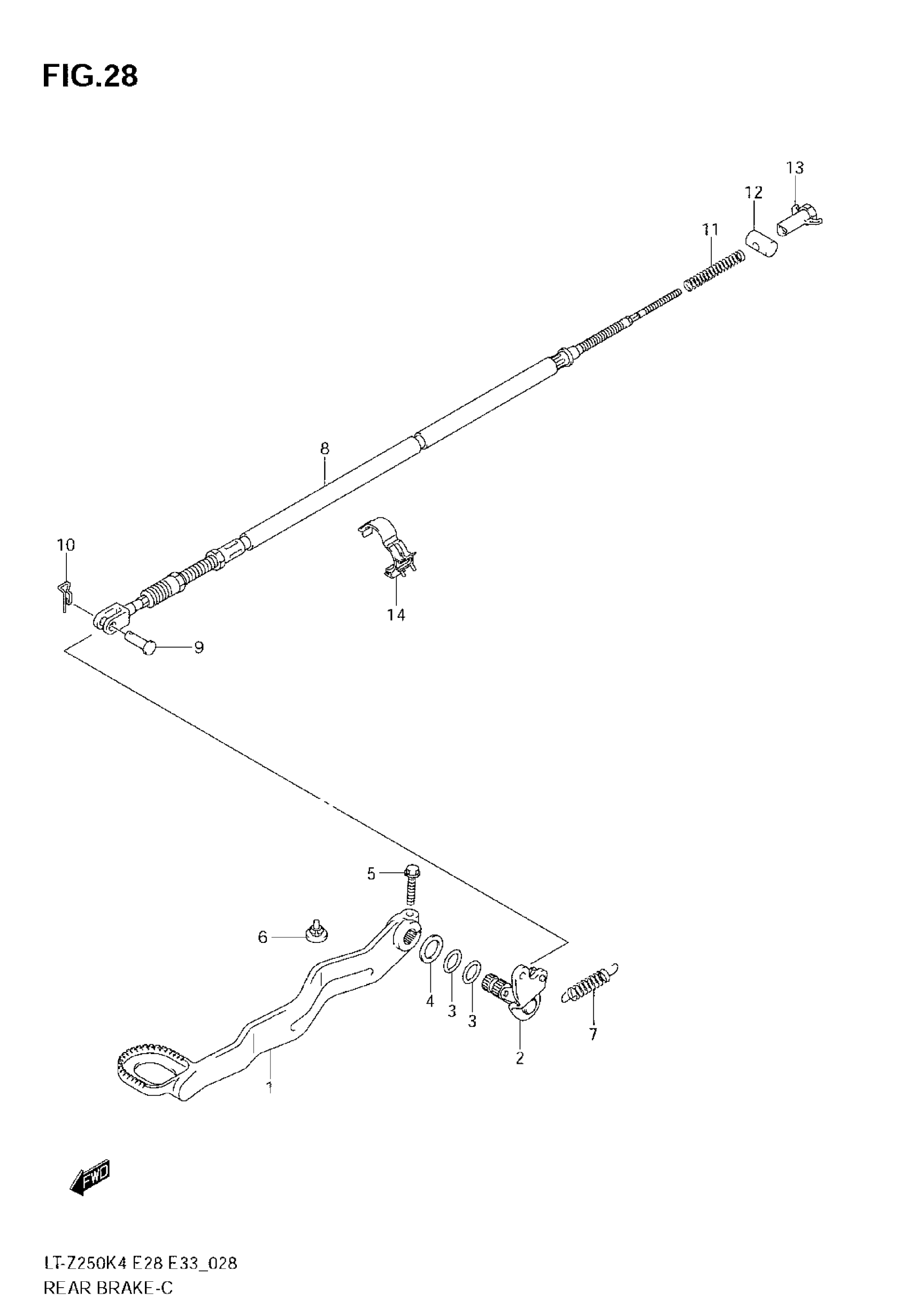

Suzuki LT-Z250 (2008) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-21G00

Unavailable

2

ARM, BRAKE PEDAL | MODEL K4 This part replaces 43120-21G00.

43120-21G01

Unavailable

2

ARM, BRAKE PEDAL | MODEL K5/K6/K7/K8

43120-21G01

Unavailable

3

O RING

09280-14011

$4.77

4

WASHER This part replaces 09160-14055-A05.

09160-14055

$2.39

5

BOLT

01550-0625B

$2.42

6

CUSHION This part replaces 09321-08022.

09321-08026

$1.94

7

SPRING, RETURN

09443-11030

$3.70

8

CABLE, REAR BRAKE | MODEL K4 This part replaces 58510-21G00.

58510-21G10

$60.07

8

CABLE, REAR BRAKE | MODEL K5/K6/K7/K8

58510-21G10

$60.07

9

PIN, FRONT

09200-05001

$1.65

10

CLIP

09385-06012

$1.89

11

SPRING

09440-08042

$2.92

12

PIN, REAR

09209-13006

$5.24

13

NUT

09150-06015

$3.56

14

CLAMP

09403-20403

$3.58
