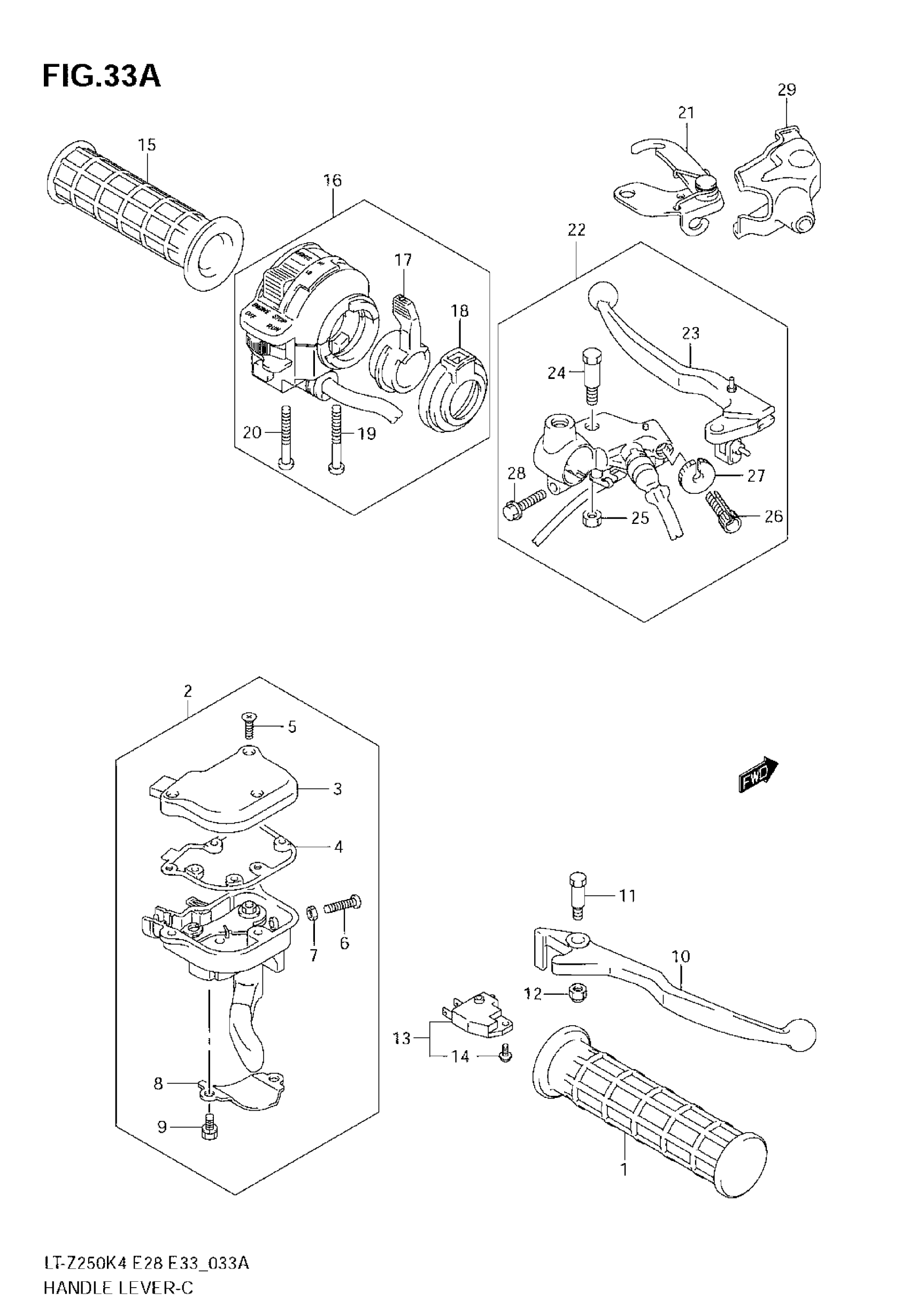

Suzuki LT-Z250 (2008) HANDLE LEVER (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

GRIP

57211-21G10

$10.15

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 9

57100-38F60

$152.07

3

CAP

57121-38F50

$53.18

4

GASKET

57157-38F50

$22.10

5

SCREW

57128-07G00

$10.17

6

SCREW

02112-0520B

$1.84

7

NUT This part replaces 08310-0005B.

08310-0005A

$1.84

8

HOLDER

57126-07G00

$29.10

9

BOLT

57127-07G00

$11.95

10

LEVER,FRONT BRAKE

57421-39D20

$23.07

11

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.28

12

NUT,LEVER PIVOT

57433-09F00

$3.56

13

SWITCH ASSY,FR BRAKE | Includes Item(s) 14 This part replaces 57460-17C11.

57460-14J02

$38.46

14

SCREW

57465-17C00

$2.19

15

GRIP

57211-21G10

$10.15

16

SWITCH ASSY,HAN | Includes Item(s) 17 - 20 This part replaces 37400-09F00.

37400-09F02

$149.91

17

LEVER, CHOKE

37571-19B01

$12.15

18

COVER, CHOKE

37576-19B01

$6.79

19

SCREW

02112-05457

$1.86

20

SCREW

02112-05407

$2.06

21

.STOPPER,BRAKE LEVER

57790-38FA0

$45.37

22

LEVER ASSY,RR B | Includes Item(s) 23 - 28 This part replaces 57500-38FB1.

57500-38FB2

$89.28

23

LEVER SET, BRAKE

57620-21821

$50.23

24

.BOLT,PIVOT

57431-09F00

$12.90

25

NUT

08319-2106B

$2.32

26

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$11.64

27

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$8.36

28

..BOLT

01547-0620B

$2.45

29

COVER,BRAKE LEVER This part replaces 57541-38FA0.

57541-38FA1

$8.70
