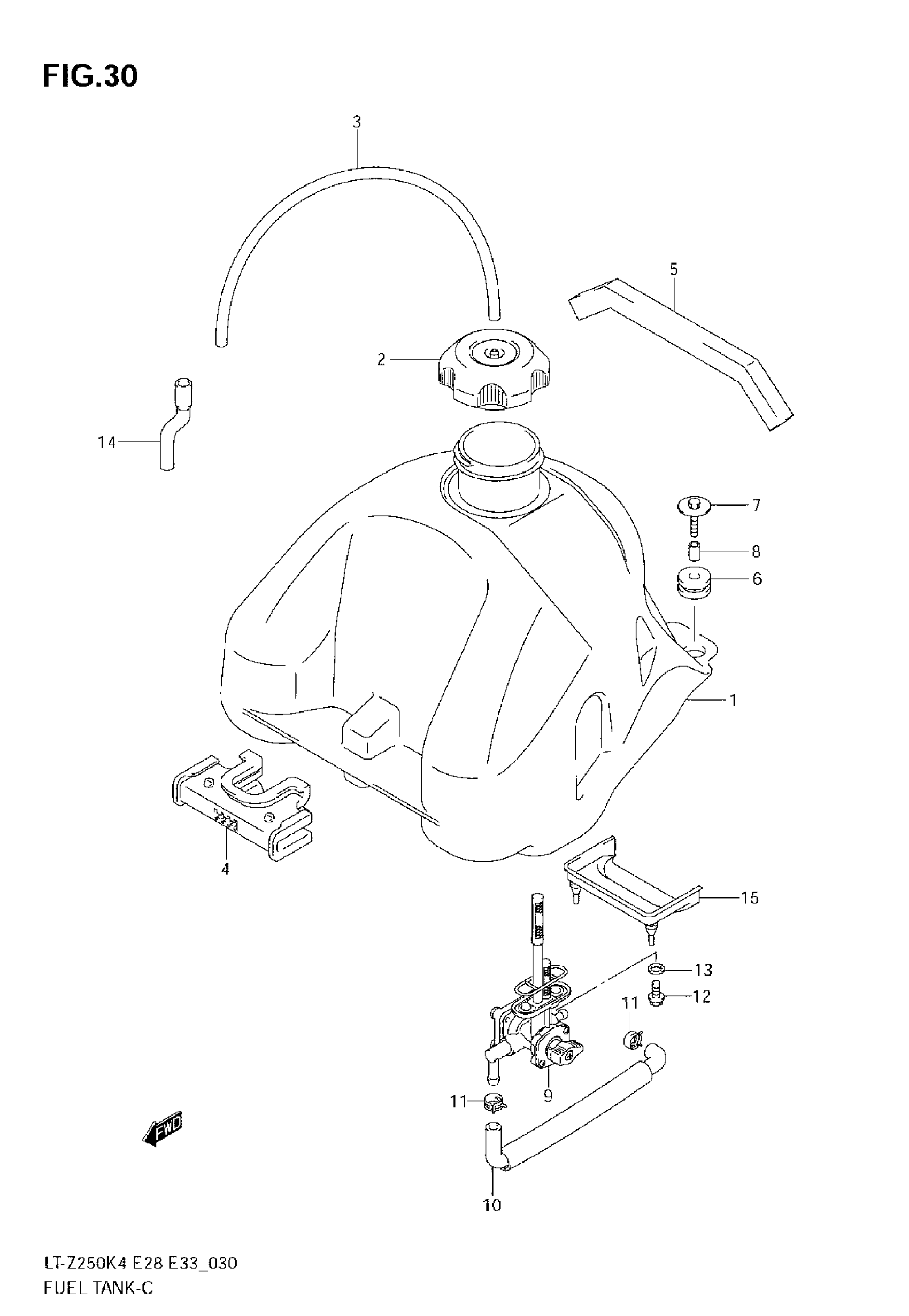

Suzuki LT-Z250 (2008) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL | MODEL K4 This part replaces 44100-05G01.

44100-05G02

Unavailable

1

TANK ASSY, FUEL | MODEL K5/K6/K7

44100-05G02

Unavailable

1

TANK ASSY, FUEL | MODEL K8

44100-05G10

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

CUSHION,FUEL TA This part replaces 44511-03G00.

44511-03G01

$20.92

5

CUSHION

47451-38A01

$4.43

6

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

7

BOLT

09116-06190

$2.34

8

SPACER

09180-06293

$2.58

9

COCK ASSY,FUEL | MODEL K4/K5/K6 This part replaces 44300-21G00.

44300-21G01

$92.88

9

COCK ASSY,FUEL | MODEL K7/K8 This part replaces 44300-21G10.

44300-21G11

$195.25

10

HOSE,FUEL This part replaces 44420-21G00.

44420-21GR0

$24.55

11

CLIP

09401-11415

$2.23

12

BOLT

01547-0616B

$2.45

13

GASKET

09168-06026

$3.10

14

HOSE,BREATHER This part replaces 44433-21G00.

44433-21G01

$11.10

15

RUBBER, CLEANER INLET

47157-21G00

Unavailable
