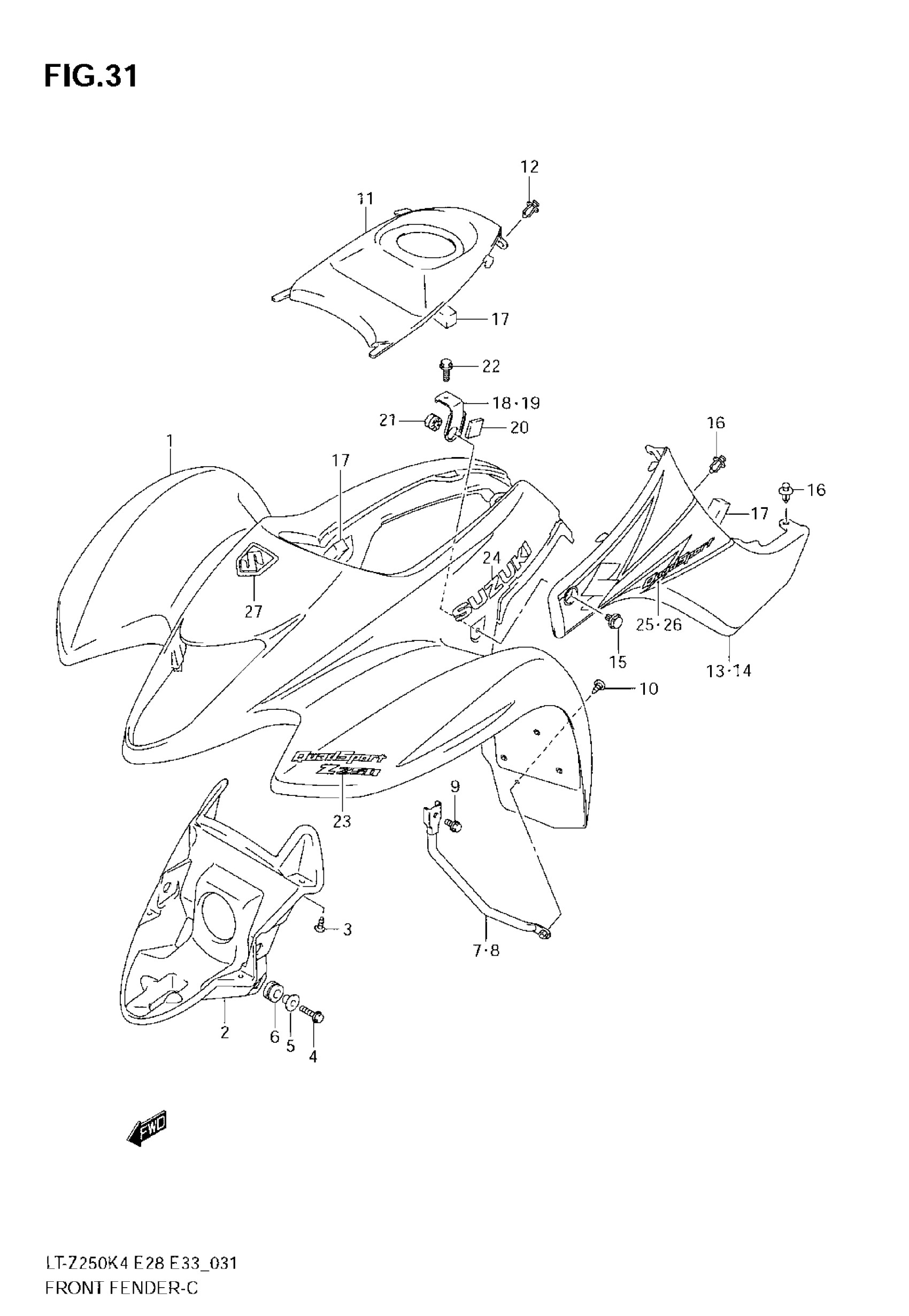

Suzuki LT-Z250 (2008) FRONT FENDER (MODEL K4) Diagram

#

Description
Price

1

FENDER, FRONT (YELLOW) This part replaces 53111-21G00-YU1.

53111-21G01-YU1

Unavailable

1

FENDER, FRONT (WHITE) This part replaces 53111-21G00-30H.

53111-21G01-30H

Unavailable

2

FENDER, INNER

53118-21G00

$117.83

3

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

4

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

5

SPACER

09169-06074

$7.95

6

CUSHION

09320-11008

$2.60

7

BRACKET, RH

53210-21G00

$42.45

8

BRACKET, LH

53220-21G00

$53.13

9

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

10

SCREW

09139-06083

$2.26

11

FENDER, CENTER (YELLOW) This part replaces 53119-21G00-YU1.

53119-21G01-YU1

Unavailable

11

FENDER, CENTER (WHITE) This part replaces 53119-21G00-30H.

53119-21G01-30H

Unavailable

12

CLIP

09409-07333

$2.31

13

COVER, SIDE RH (YELLOW) This part replaces 53112-21G00-YU1.

53112-21G01-YU1

$127.83

13

COVER, SIDE RH (WHITE) This part replaces 53112-21G00-30H.

53112-21G01-30H

$125.45

14

COVER, SIDE LH (YELLOW) This part replaces 53122-21G00-YU1.

53122-21G01-YU1

Unavailable

14

COVER, SIDE LH (WHITE) This part replaces 53122-21G00-30H.

53122-21G01-30H

$125.45

15

CLIP, FRONT

09409-08335

$2.47

16

CLIP

09409-07333

$2.31

17

CUSHION, CENTER This part replaces 53145-21G00.

53145-05G00

$15.23

18

BRACKET, RH

53113-21G00

Unavailable

19

BRACKET, LH

53114-21G00

Unavailable

20

CUSHION

94422-06G00

$5.82

21

CUSHION, NO.2

09320-08071

$3.25

22

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

23

EMBLEM, "QUADSPORT" | FOR YU1

68151-21G00-KD1

Unavailable

23

EMBLEM, "QUADSPORT" | FOR 30H

68151-21G00-JV6

Unavailable

24

EMBLEM,SUZUKI | FOR YU1 This part replaces 68661-29F00-GY8.

68661-29F01-GY8

$20.20

24

EMBLEM,SUZUKI | FOR 30H This part replaces 68661-29F00-8YM.

68661-29F01-8YM

$19.47

25

TAPE, RH | FOR YU1

68155-21G00-KD2

Unavailable

25

TAPE, RH | FOR 30H

68155-21G10-YDS

Unavailable

26

TAPE, LH | FOR YU1

68156-21G00-KD2

Unavailable

26

TAPE, LH | FOR 30H

68156-21G10-YDS

Unavailable

27

EMBLEM, "S"

68281-07G00

Unavailable
