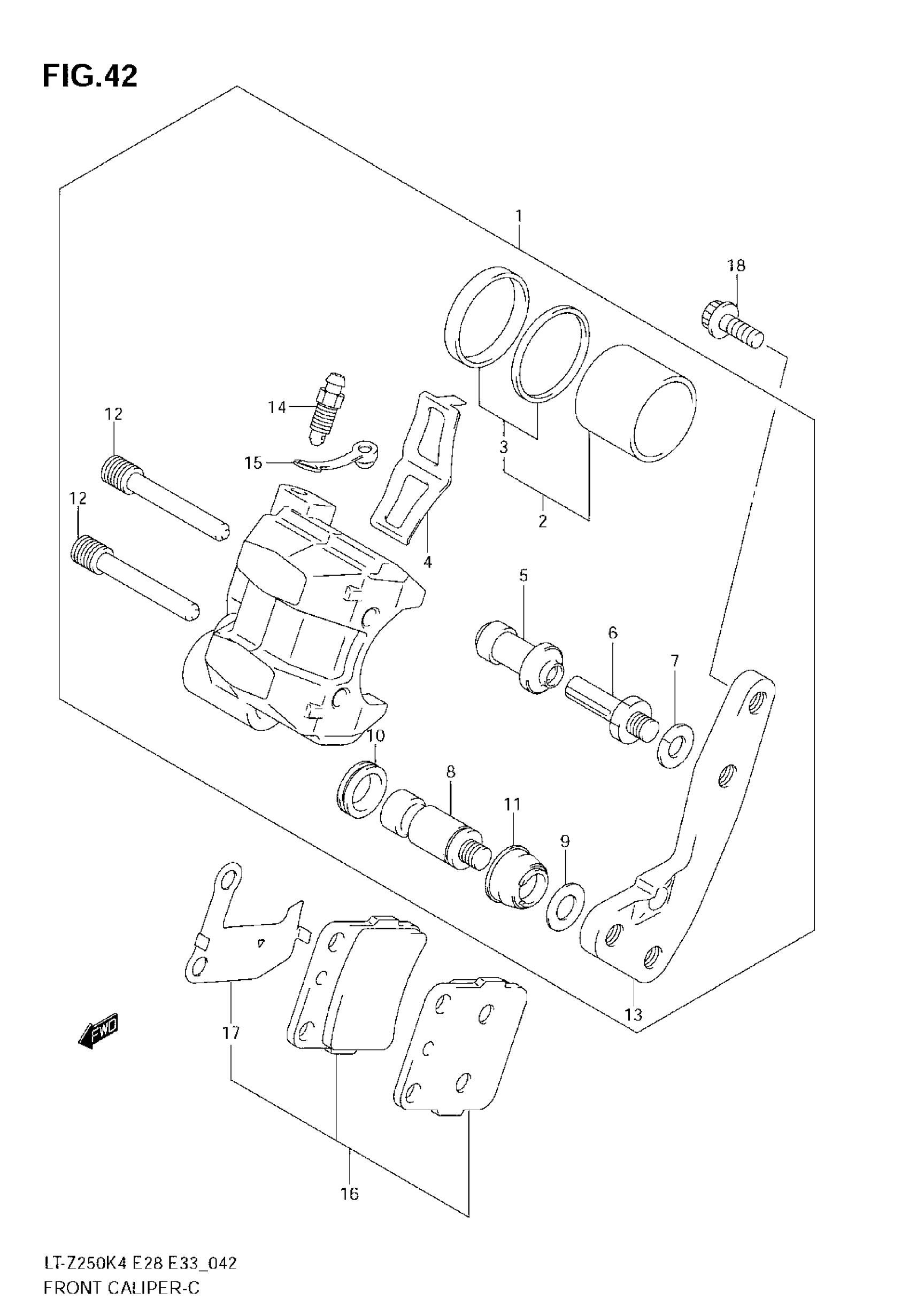

Suzuki LT-Z250 (2008) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-38F30-999

$236.90

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 15

59300-38F30-999

$236.90

2

PISTON SET

59100-38850

$30.52

3

SEAL SET, PISTON

59100-38860

$13.77

4

SPRING, PAD

59315-13A00

$11.02

5

BOOT

59386-13A00

$7.95

6

PIN

59382-13A00

$7.69

7

WASHER

59314-13A00

$2.02

8

PIN, SLIDE

59105-38F00

$19.78

9

SPRING

59306-13A00

$3.15

10

PLUG, DUST

59384-13A00

$5.24

11

BOOT

59303-13A00

$5.80

12

PIN

59345-00B20

$14.20

13

BRACKET, RH

59151-38F00

$53.50

13

BRACKET, LH

59351-38F00

$53.50

14

BLEEDER

59121-01A00

$8.73

15

CAP

59122-01A00

$4.34

16

PAD & SHIM SET, R

59300-42860

$62.97

16

PAD & SHIM SET, L | Includes Item(s) 17 - 17

59300-42870

$62.97

17

SHIM, RH

59371-13A00

$9.37

17

SHIM, LH

69372-00B20

$11.02

18

BOLT | MODEL K4 This part replaces 07120-08163.

07120-0816A

$3.05

18

BOLT | MODEL K5/K6/K7/K8

09106-08174

$3.37
