2008 Suzuki LT-Z250 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2008 Suzuki LT-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

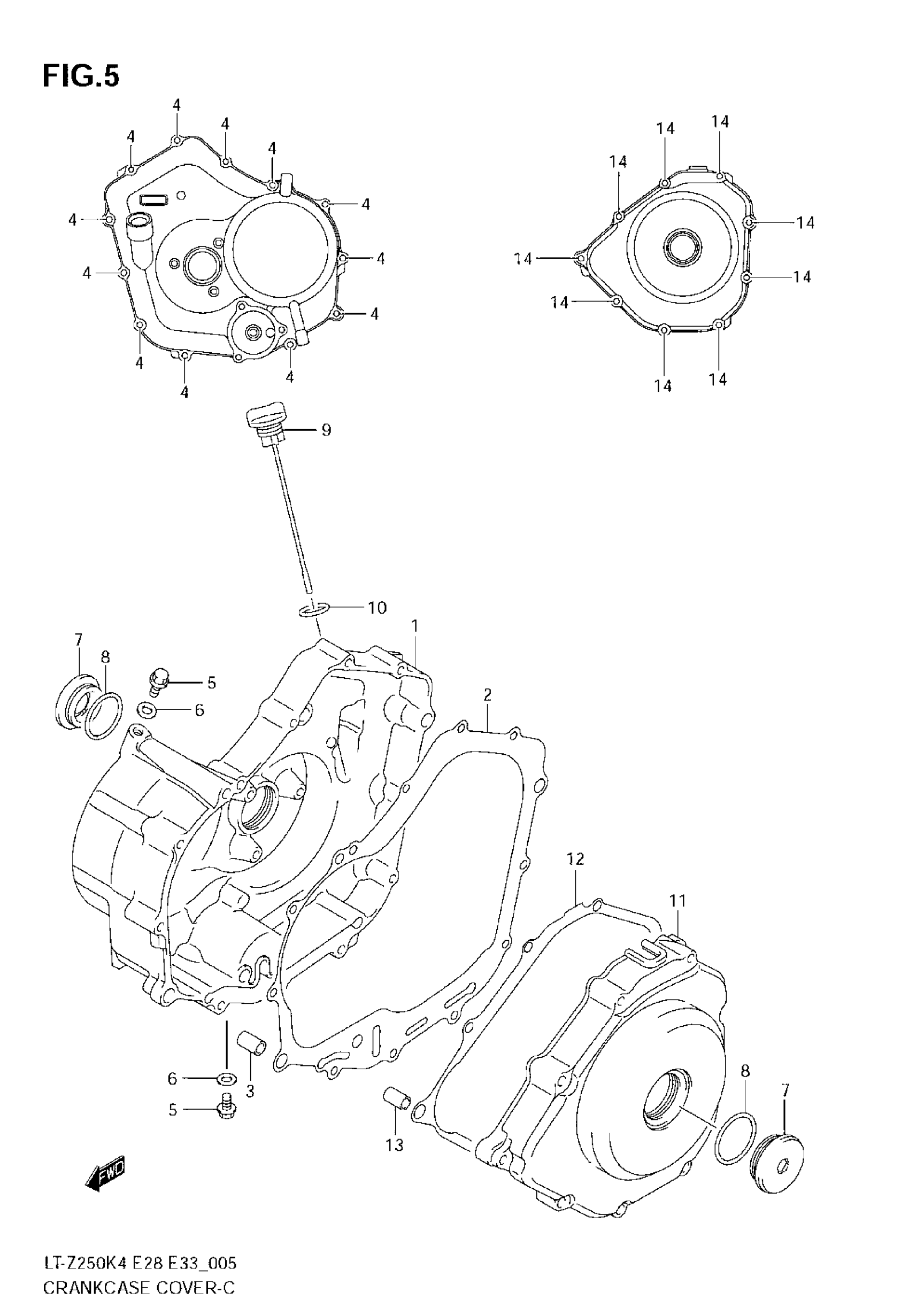

2008 Suzuki LT-Z250 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-05G10

1
Out of stock

2

GASKET, CLUTCH COVER

11482-05G01

1
Out of stock

3

PIN

04211-11189

2
Out of stock

4

BOLT

01547-0640B

12
Out of stock

5

PLUG, OIL GALLERY

01550-0610B

2
Out of stock

6

GASKET

09168-06018

2
Out of stock

7

CAP, CLUTCH RELEASE ADJUST

09259-36016-20H

2
Out of stock

8

.O-RING (D:3.1,ID:32.7)

09280-33004

2
Out of stock

9

GAUGE, OIL LEVEL

11971-05G00

1
Out of stock

10

O RING

09280-17003

1
Out of stock

11

COVER, MAGNETO

11351-05G10

1
Out of stock

12

GASKET, MAGNETO COVER

11483-05G00

1
Out of stock

13

PIN (10.4X13X18)

04211-11189

2
Out of stock

14

BOLT

01547-0640B

9
Out of stock
