Description

Price

1

CAM SHAFT

12711-18A00

$203.53

2

SPROCKET (NT:32)

12741-21G00

$55.55

3

PIN

09261-05005

$1.43

4

WASHER, SPROCKET

12747-05202

$2.53

5

BOLT (6X10.5)

09111-06032

$2.12

6

C-RING

09390-22002

$2.33

7

ARM ASSY, VALVE ROCKER | Includes Item(s) 8 - 9

12850-25C00

$39.51

8

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

SHAFT, VALVE ROCKER ARM

12861-05201

$22.25

11

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

12

WASHER

09164-12021

$2.01

13

GASKET

09168-06023

$2.01

14

BOLT

02162-0625B

$1.46

15

VALVE, INTAKE

12911-05G00

$37.35

16

VALVE, EXHAUST

12912-18A00

$58.48

17

SPRING, VALVE

12921-21G00

$11.99

18

RETAINER, SPRING

12931-19B01

$13.50

19

COTTER, VALVE

12932-24400

$1.98

20

SEAT, SPRING

12933-19B00

$9.37

21

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04

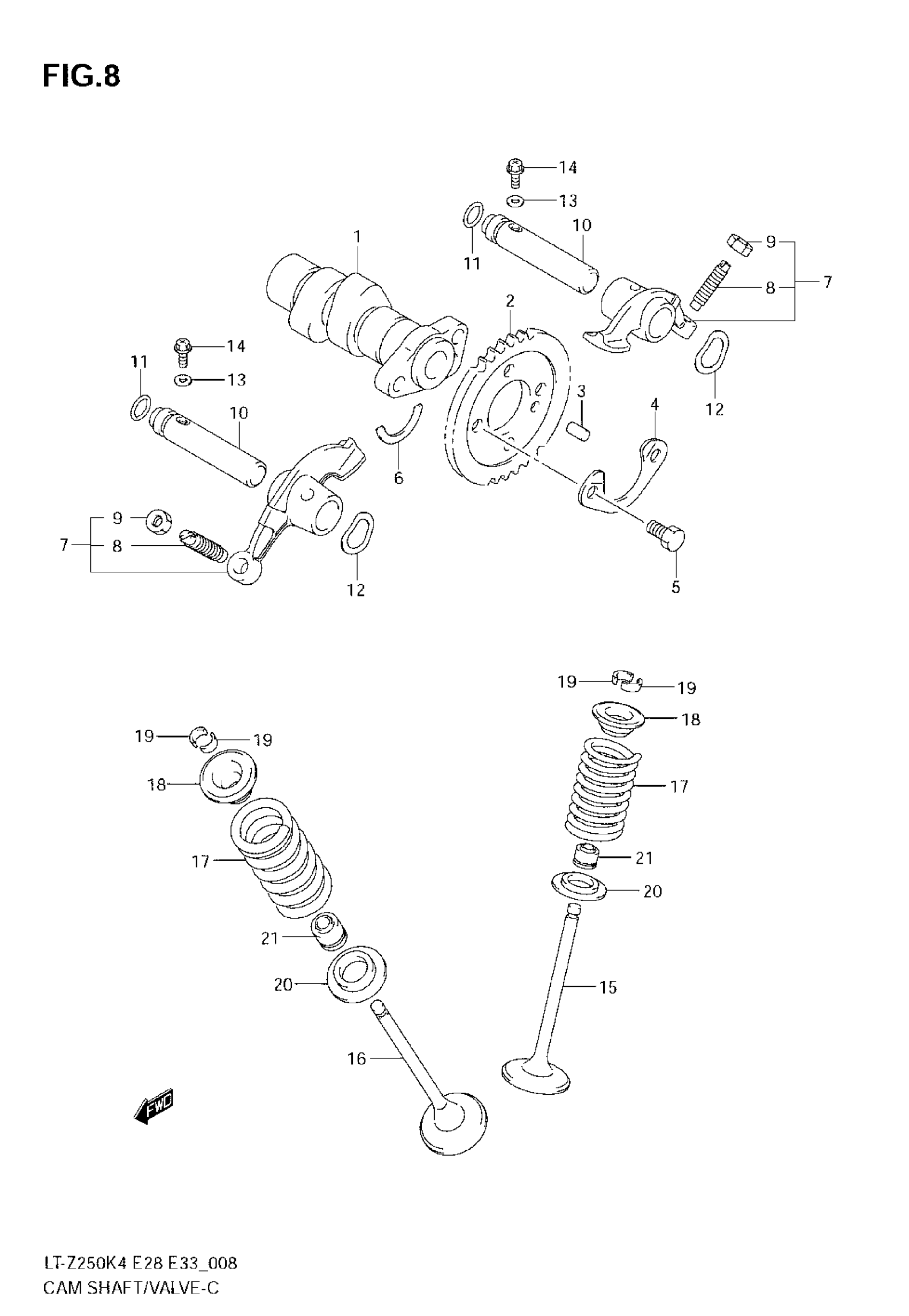

Suzuki LT-Z250 (2008) CAM SHAFT/VALVE Diagram
