2008 Suzuki LT-Z250 Carburetor Diagram

← All diagrams

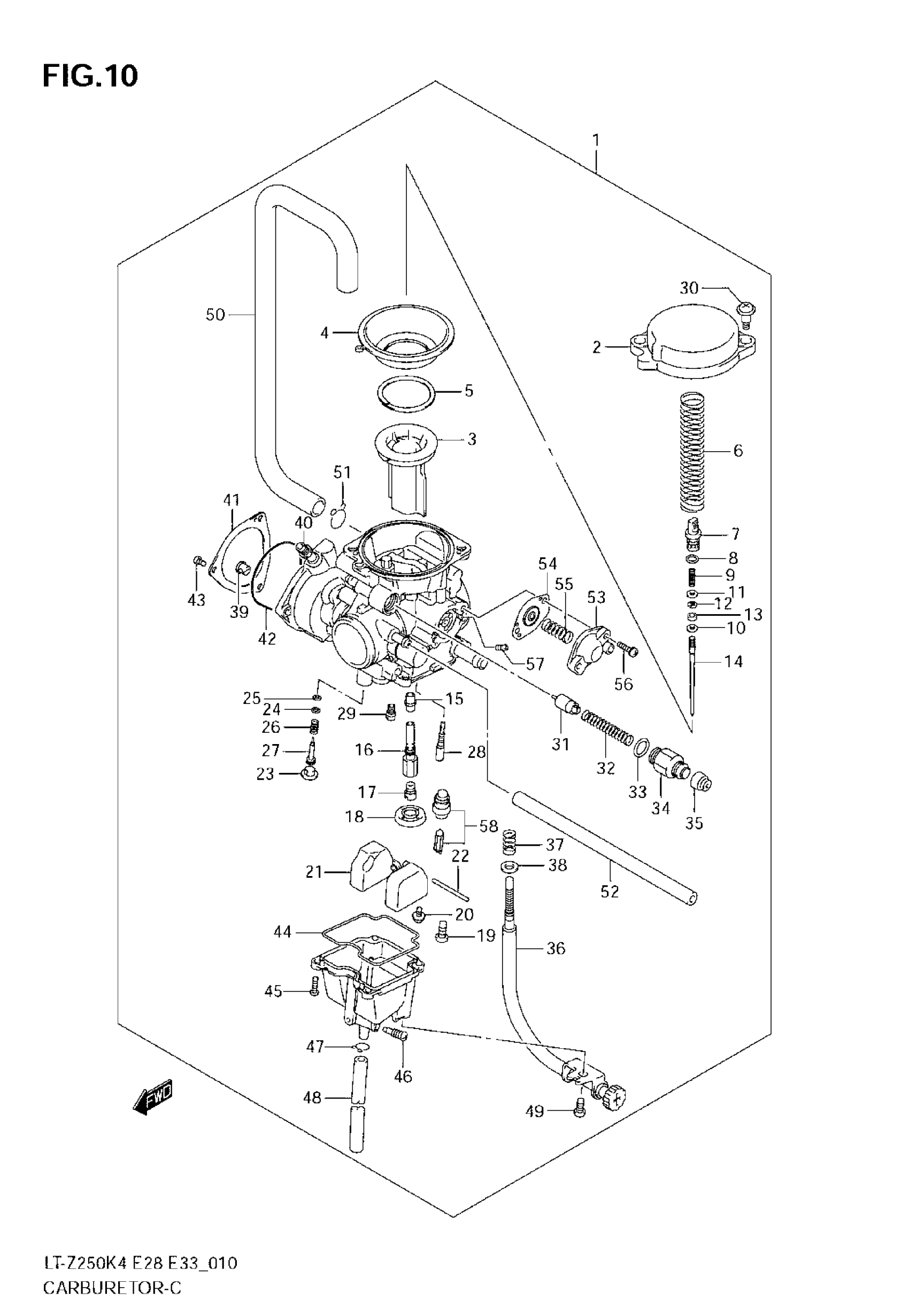

Find the part on the Carburetor diagram for your 2008 Suzuki LT-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki LT-Z250 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY | E28

13200-21G00

—
Out of stock

1

1

$632.05

In stock

2

DIAPHRAGM COVER

13502-20B00

1

$55.78

In stock

3

PISTON VALVE

13501-13E20

1
Out of stock

4

DIAPHRAGM This part replaces 13507-05G00.

13507-05G01

1
Out of stock

5

RING

13504-16E00

1

$7.03

In stock

6

SPRING

13573-13E20

1
Out of stock

7

HOLDER

13418-33E00

1

$5.66

In stock

8

O RING

09280-05004

1

$2.50

In stock

9

SPRING

13481-13F00

1
Out of stock

10

WASHER

13291-29FA0

1

$2.93

In stock

11

WASHER

13382-19E00

1

$3.65

In stock

12

E RING

13394-17E60

1

$2.19

In stock

13

RING

13387-13F00

1

$8.14

In stock

14

NEEDLE, JET

13383-21G00

1
Out of stock

15

JET, NEEDLE

13341-19E60

1
Out of stock

16

HOLDER, JET | MODEL K4 This part replaces 13342-21G00.

13342-21G10

1
Out of stock

16

HOLDER, JET | MODEL K5/K6/K7/K8

13342-21G10

1
Out of stock

17

JET, MAIN

09491-25010

1
Out of stock

18

HOLDER

13387-08G00

1
Out of stock

19

1

$1.15

In stock

20

SCREW

13602-05A10

1

$3.55

In stock

21

FLOAT ASSY

13250-04F00

1

$34.63

In stock

22

.PIN, FLOAT

13254-01010

1

$4.80

In stock

23

CAP | E28

13282-21G00

—
Out of stock

23

PLUG | E33

13281-05A00

1
Out of stock

24

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

25

WASHER

13291-29900

1
Out of stock

26

SPRING,THROTTLE SCREW

13268-48700

1

$4.33

In stock

27

ADJUSTER

13279-21G00

1
Out of stock

28

JET, PILOT

09492-20024

1
Out of stock

29

JET, MAIN

09491-57003

1
Out of stock

30

SCREW

13247-33E00

2

$2.93

In stock

31

PLUNGER ASSY

13411-39D20

1

$30.40

In stock

32

SPRING

13417-07F00

1

$7.20

In stock

33

1

$2.01

In stock

34

HOLDER, GUIDE

13418-07F00

1

$16.05

In stock

35

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

36

ADJUST SCREW ASSY

13267-07G00

1
Out of stock

37

SPRING

13268-03110

1

$6.15

In stock

38

WASHER

13615-05G00

1
Out of stock

39

CABLE GUIDE

13579-05G00

1
Out of stock

40

NUT

13607-98410

1
Out of stock

41

COVER

13502-02C10

1

$18.58

In stock

42

O RING

13673-20B00

1
Out of stock

43

3

$1.67

In stock

44

O RING

13258-04F00

1

$9.87

In stock

45

SCREW

02112-04107

4

$1.67

In stock

46

1

$4.97

In stock

47

CLIP | MODEL K4

09401-08410

1
Out of stock

48

HOSE

13684-21G00

—
Out of stock

49

SCREW

02112-05107

1
Out of stock

50

HOSE This part replaces 13683-21G00.

13683-21G01

1
Out of stock

51

CLIP | MODEL K4

13671-21G00

—
Out of stock

52

.HOSE | L:600!160 This part replaces 09352-50903-600.

09352-50006-600

1
Out of stock

53

COVER ASSY

13502-10F00

1

$44.80

In stock

54

DIAPHRAGM ASSY This part replaces 13480-055A0.

13480-055A1

1
Out of stock

55

SPRING

13271-13F00

1
Out of stock

56

SCREW

13601-04148

2
Out of stock

57

JET, PILOT AIR

09493-34003

1
Out of stock

58

VALVE ASSY,NEED This part replaces 13370-21G00.

13370-21G01

1
Out of stock
