2008 Suzuki LT-Z250 Air Cleaner Diagram

← All diagrams

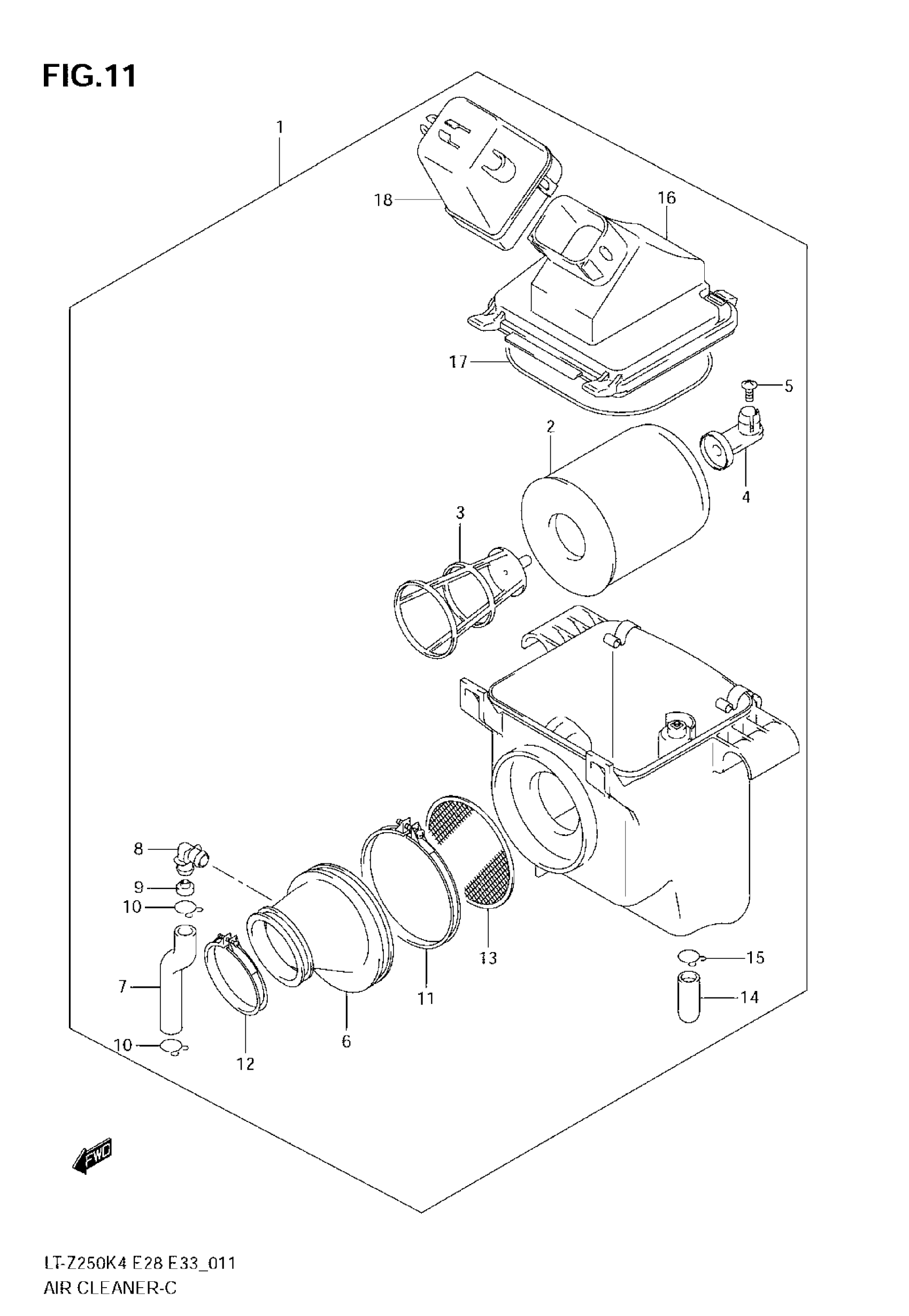

Find the part on the Air Cleaner diagram for your 2008 Suzuki LT-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki LT-Z250 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

FILTER ASSY

13780-05G00

1

$32.61

In stock

3

HOLDER, FILTER

13791-05G01

1

$13.19

In stock

4

STOPPER, HOLDER

13792-05G00

1

$4.70

In stock

5

SCREW

02142-0616B

1
Out of stock

6

1

$26.87

In stock

7

1

$11.31

In stock

8

JOINT

13858-14D20

1
Out of stock

9

1

$6.32

In stock

10

CLIP

09401-14301

2

$2.50

In stock

11

CLAMP (CLEANER SIDE)

09402-98208

1

$7.00

In stock

12

1

$5.20

In stock

13

TRAP, FLAME

13810-05G00

1

$13.73

In stock

14

1

$5.63

In stock

15

CLIP

09401-14301

1

$2.50

In stock

16

1

$66.45

In stock

17

GASKET

13746-05G00

1

$5.50

In stock

18

GUARD INLET

13896-21G00

1

$40.97

In stock
