2005 Suzuki LT-V700F (CA) Wheel/tire Diagram

← All diagrams

Find the part on the Wheel/tire diagram for your 2005 Suzuki LT-V700F (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

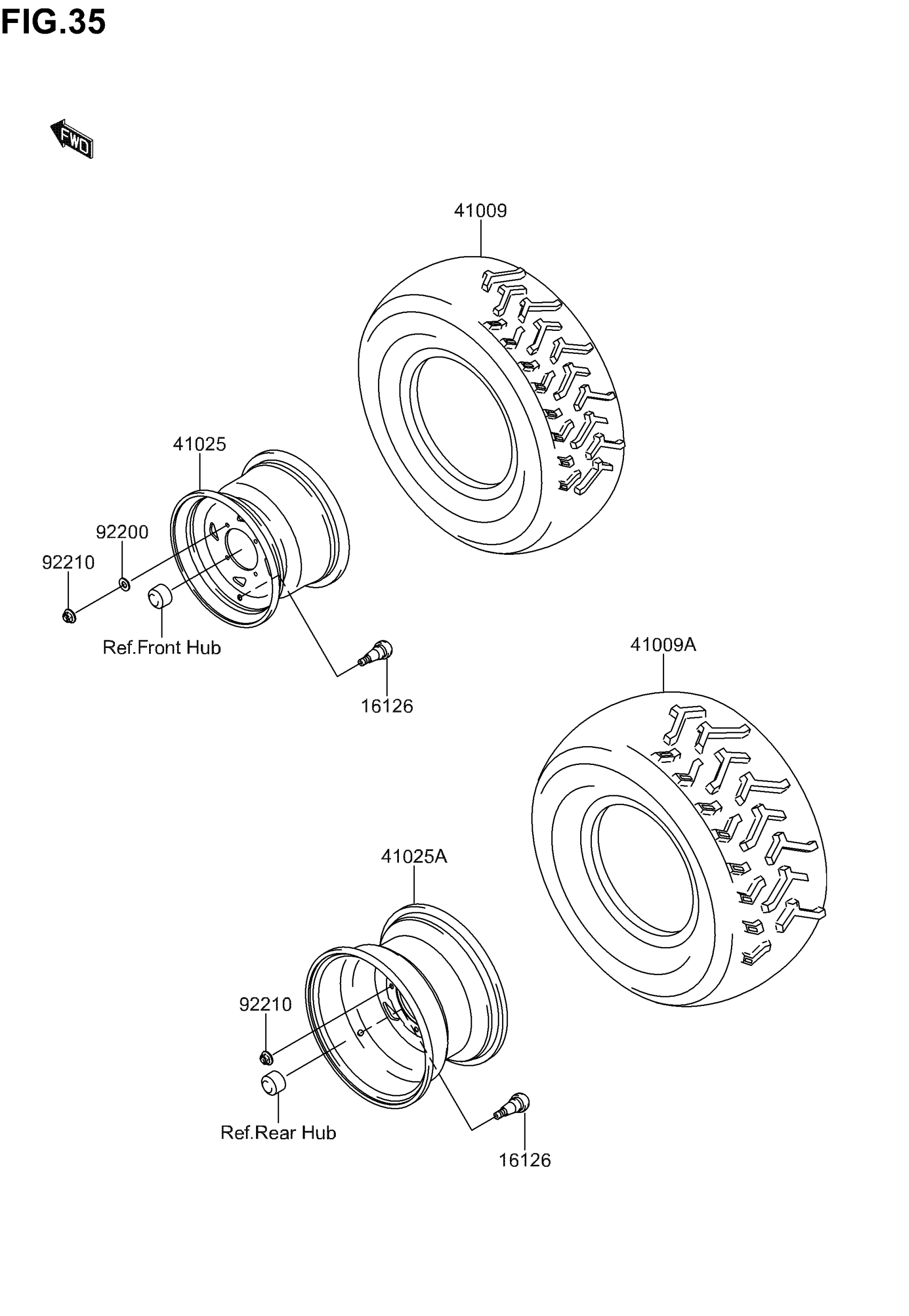

2005 Suzuki LT-V700F (CA) Wheel/tire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE

K1612-64001

4
Out of stock

41009

NO DESCRIPTION AVAILABLE This part replaces K4100-91117.

K4100-90149

2
Out of stock

41009A

TIRE,RR,AT25X10-12,KT127A

K4100-91380

2
Out of stock

41025

RIM,FR,12X6.0,SILVER

KK410-25137-55A

2
Out of stock

41025A

RIM,RR,12X7.5AT,SILVER

KK410-25142-65A

2
Out of stock

92200

WASHER,10.5X25X1.6

K9220-01595

8
Out of stock

92210

NUT,FLANGED,10MM

K9221-01325

16
Out of stock
