2005 Suzuki LT-V700F (CA) Rear HUB Diagram

← All diagrams

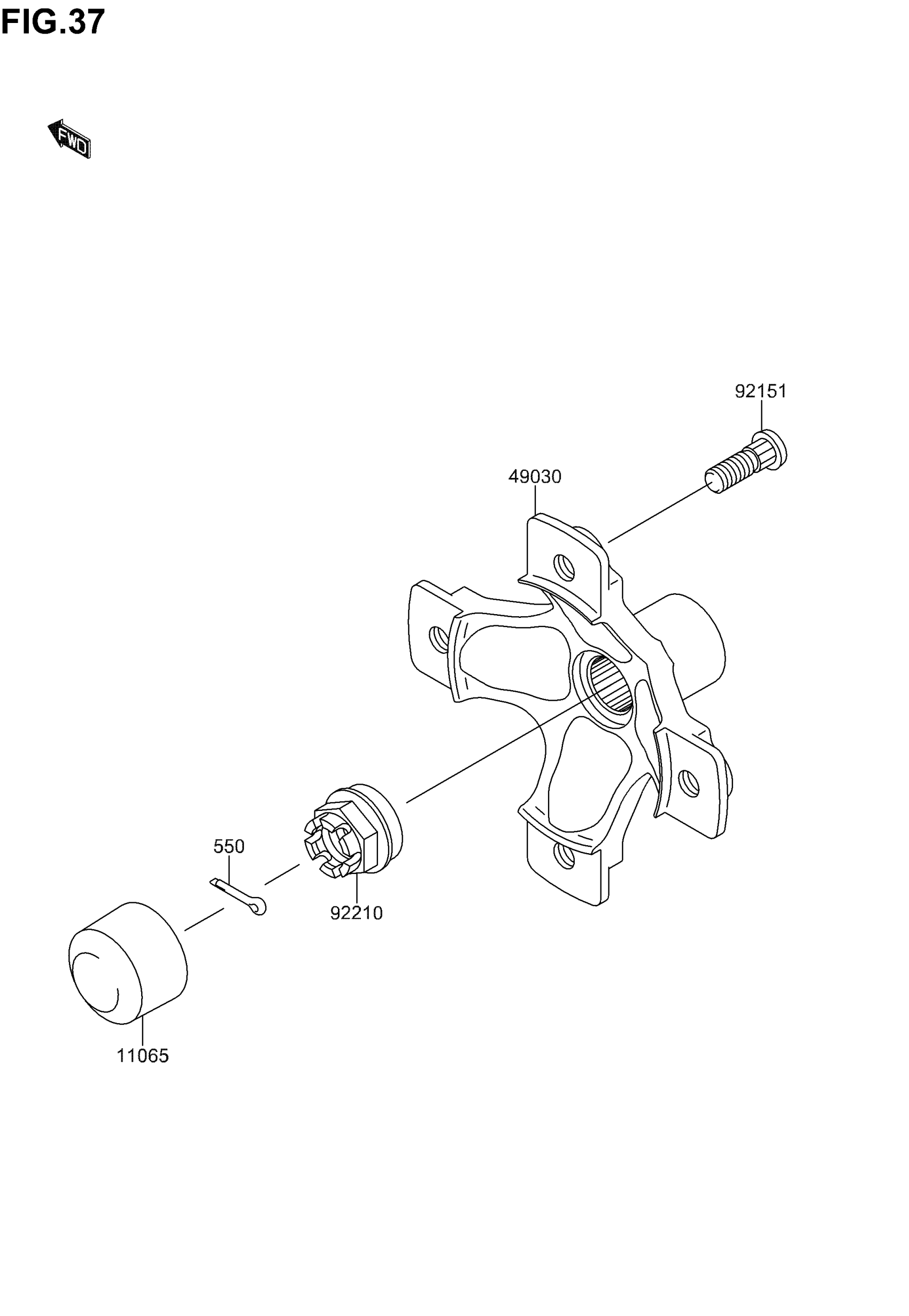

Find the part on the Rear HUB diagram for your 2005 Suzuki LT-V700F (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-V700F (CA) Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,WHEEL

K1106-50049

2
Out of stock

49030

HUB,RR This part replaces K4903-01140.

K4903-00047

2
Out of stock

92151

BOLT,10X29.5

K9215-11392

8

$3.92

In stock

92210

NUT,CASTLE,20MM

K9221-01381

2
Out of stock

550

PIN-COTTER,4.0X This part replaces KK550-D4025.

K550A-A4025

2
Out of stock
