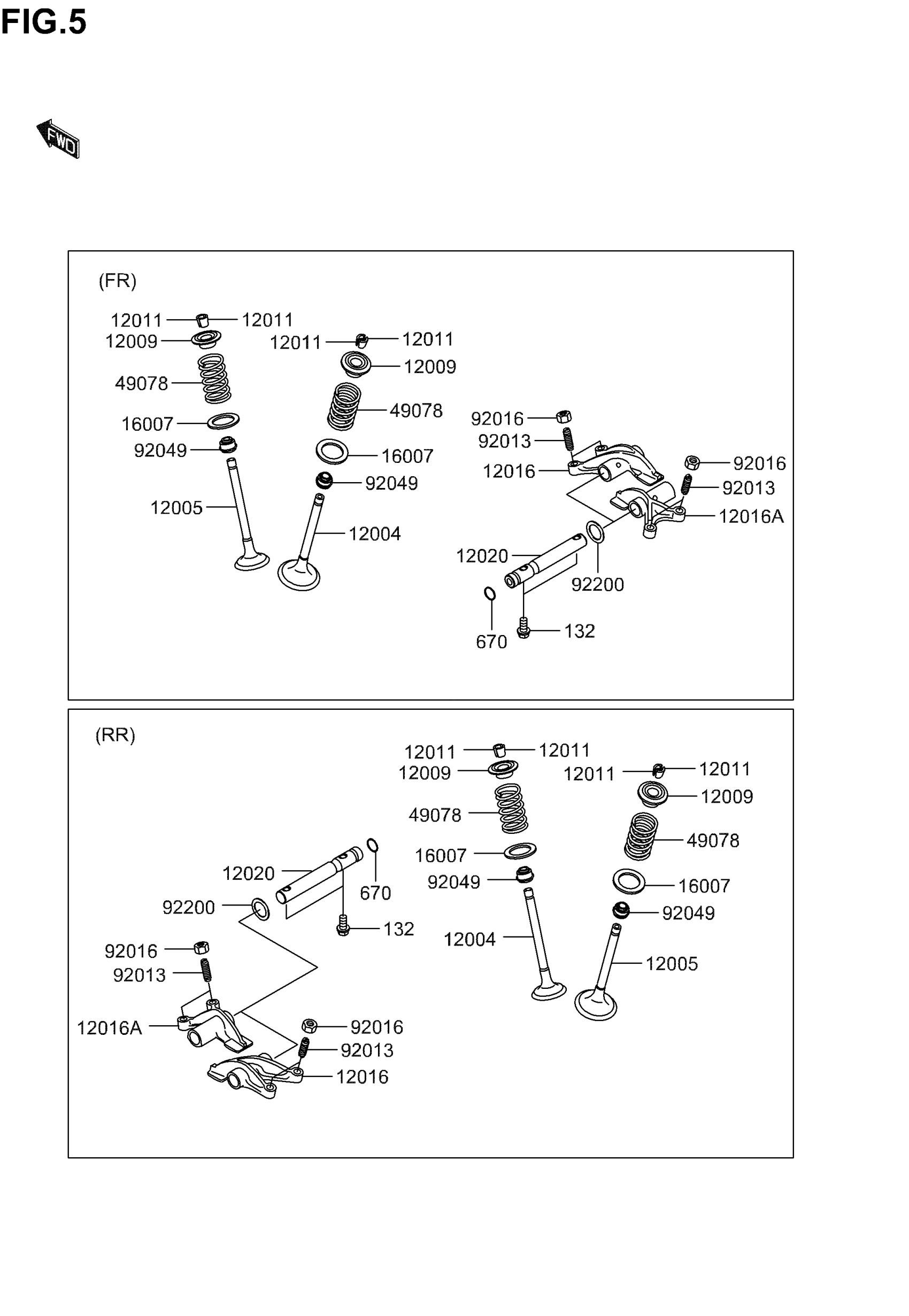

Find the part on the Valve diagram for your 2005 Suzuki LT-V700F (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-V700F (CA) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE,INTAKE This part replaces K1200-40007.

K1200-40717

4
Out of stock

12005

VALVE,EXHAUST This part replaces K1200-50016.

K1200-50047

4
Out of stock

12009

RETAINER-VALVE SPRING

K1200-91056

8
Out of stock

12011

COLLET

K1201-11051

16
Out of stock

12016

ARM-ROCKER,EXHAUST

K1201-61128

2
Out of stock

12016A

ARM-ROCKER,INTAKE

K1201-61129

2
Out of stock

12020

SHAFT-ROCKER

K1202-01083

4
Out of stock

16007

SEAT-SPRING,17.5X23.8X0.5

K1600-71178

8
Out of stock

49078

SPRING-ENGINE VALVE

K4907-80014

8
Out of stock

92013

SCREW,6MM

KK920-13009

8
Out of stock

92016

NUT,6MM

KK920-16061

8
Out of stock

92049

SEAL-OIL,VSB58.558

K9204-91218

8
Out of stock

92200

WASHER,ROCKER ARM

K9220-01508

4
Out of stock

132

BOLT-FLANGED-SMALL

KK132-Y0612

8
Out of stock

670

O RING,9MM

KK670-D1509

4
Out of stock
