2005 Suzuki LT-V700F (CA) Crankshaft Diagram

← All diagrams

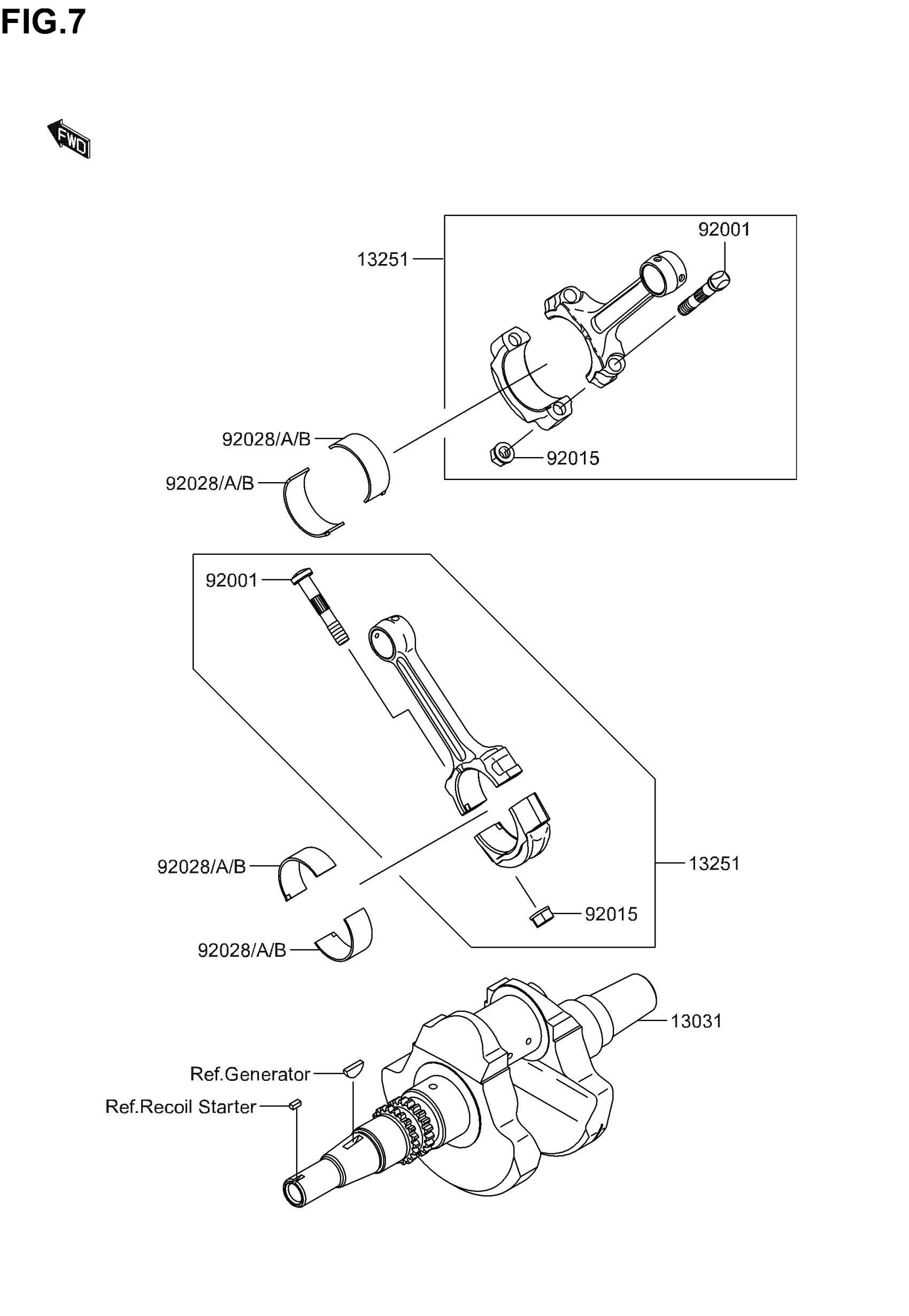

Find the part on the Crankshaft diagram for your 2005 Suzuki LT-V700F (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-V700F (CA) Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

K1303-10030

1
Out of stock

13251

ROD-ASSY-CONNECTING

K1325-11143

2
Out of stock

92001

BOLT,CONNECTING ROD

K9200-11980

4
Out of stock

92015

NUT,FLANGED,8MM

K9201-51311

4
Out of stock

92028

BUSHING,CONNECTING ROD,GREEN

K9202-81961

1
Out of stock

92028A

BUSHING,CONNECTING ROD,YELLOW

K9202-81962

4
Out of stock

92028B

BUSHING,CONNECTING ROD,BROWN

K9202-81963

1
Out of stock
