2005 Suzuki LT-V700F (CA) Radiator Diagram

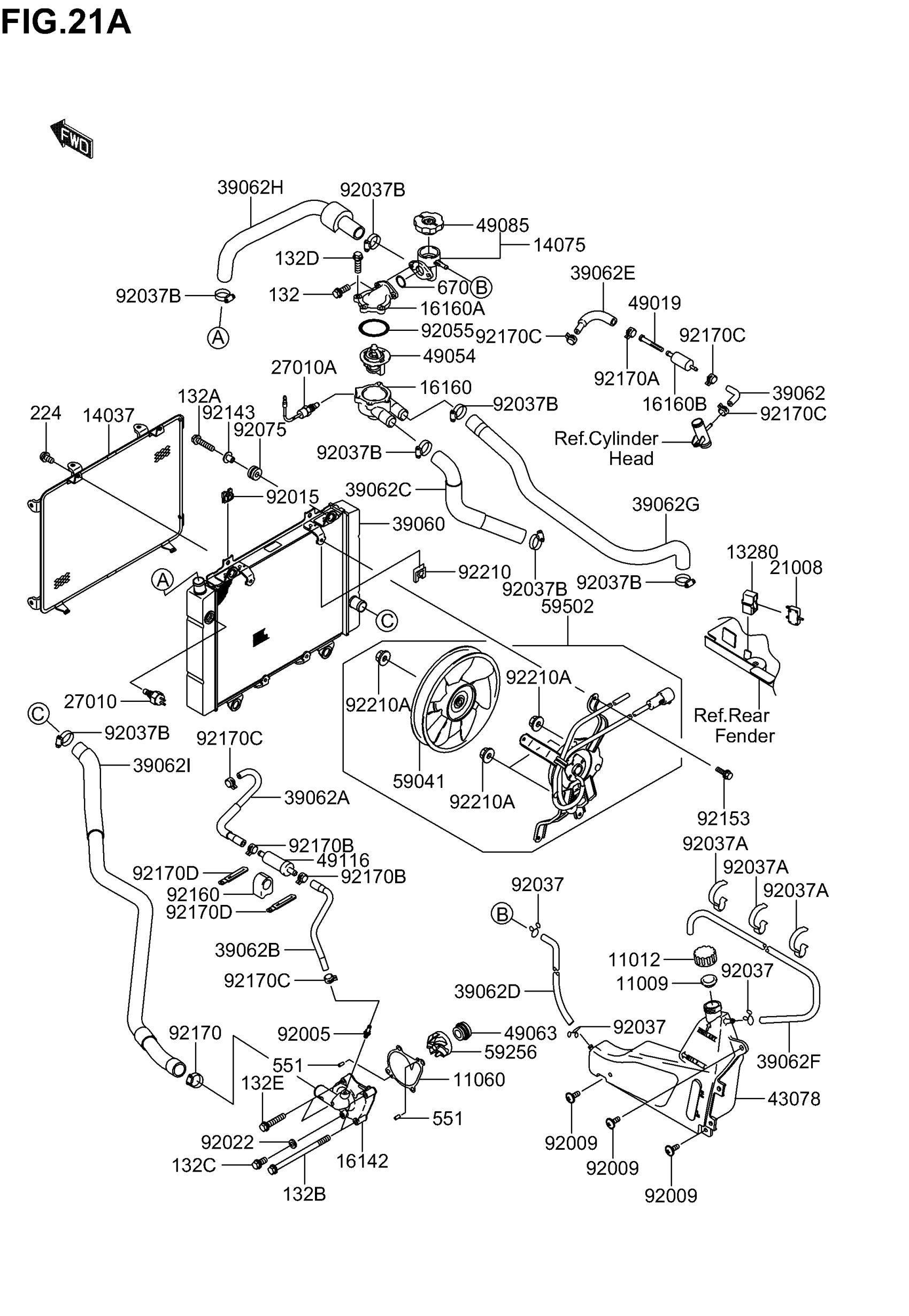

Find the part on the Radiator diagram for your 2005 Suzuki LT-V700F (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11009
GASKET,RESERVOIR TANK CAP
K1100-91145
11012
CAP
K1101-21084
11060
GASKET,WATER PUMP
K1106-01964
13280
HOLDER,BREAKER
K1328-00082
14037
SCREEN,RADIATOR
K1403-71283
14075
CAP-ASSY,PRESSURE
K1407-51105
16142
COVER-PUMP,WATER
K1614-20002
16160
BODY,THERMOSTAT,LWR
K1616-01112
16160A
BODY,THERMOSTAT,UPP
K1616-01113
16160B
BODY
K1616-01359
21008
BREAKER,FAN MOTOR
K2100-80001
27010A
SWITCH,SENSOR WATER
K2701-01346
39060
RADIATOR
K3906-00011
39062
HOSE-COOLING,HEAD-FILTER
K3906-21816
39062A
HOSE-COOLING,CARB-VALVE
K3906-21817
39062B
HOSE-COOLING,VALVE-WATER PUMP
K3906-21818
39062C
HOSE CLNG,HD FR This part replaces K3906-21820.
K3906-20181
39062D
HOSE-COOLING,THERMO-RESERV
K3906-21823
39062E
HOSE-COOLING,FILTER-CARB
K3906-21858
39062F
HOSE-COOLING,5.5X10.5X1030
K3906-21872
39062G
HOSE CLNG,HD RR This part replaces K3906-21874.
K3906-20182
39062H
NO DESCRIPTION AVAILABLE This part replaces K3906-21875.
K3906-20081
39062I
NO DESCRIPTION AVAILABLE This part replaces K3906-21893.
K3906-20183
43078
RESERVOIR This part replaces K4307-81171.
K4307-80066
49019
FILTER-WATER
K4901-91068
49054
THERMOSTAT
K4905-41055
49085
CAP-ASSY-PRESSURE
K4908-51067
49116
VALVE-ASSY
K4911-61190
59041
FAN
K5904-11062
59256
IMPELLER
K5925-61069
59502
FAN-ASSY
K5950-20012
92005
FITTING
K9200-51337
92015
NUT
K9201-51487
92022
WASHER,6.2X11X1
KK920-22304
92037A
CLAMP,HOSE
K9203-71552
92037B
CLAMP,COOLING HOSE
K9203-71589
92055
RING-O,44.7X2.4
K9205-51279
92143
COLLAR
K9214-31353
92153
BOLT
K9215-30531
92160
DAMPER,VALVE
K9216-01451
92170
CLAMP,COOLING HOSE
K9217-01286
92170A
CLAMP
K9217-01491
92170B
CLAMP
K9217-01492
92170C
CLAMP
K9217-01493
92210
NUT
K9221-01323
92210A
NUT
K9221-01396
132
BOLT-FLANGED-SMALL
KK132-H0616
132A
BOLT-FLANGED-SMALL,6X25
KK132-H0625
132B
BOLT-FLANGED-SMALL
KK132-J0690
132C
BOLT-FLANGED-SMALL
KK132-Y0612
132D
BOLT-FLANGED-SM This part replaces KK132-Y0620.
K132B-D0620
224
SCREW-PAN-WP-CROS
KK224-C0612
551
PIN-DOWEL,4X8
KK551-A0408
670
O RING,20MM
KK670-B2020
