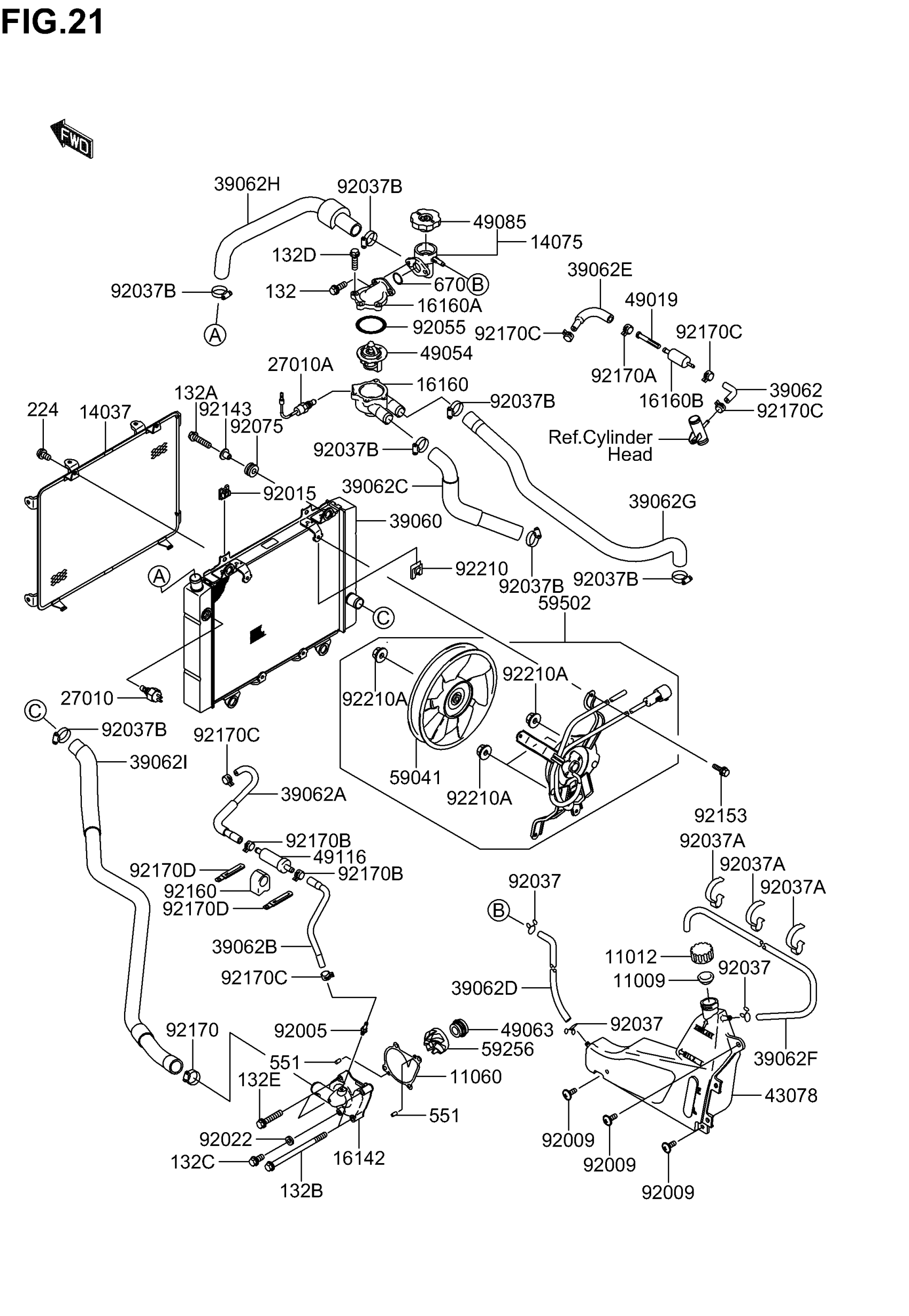

Suzuki LT-V700F (CA) (2005) RADIATOR(K4) Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

K1100-91145

Unavailable

11012

CAP

K1101-21084

Unavailable

11060

GASKET,WATER PUMP

K1106-01964

Unavailable

14037

SCREEN,RADIATOR

K1403-71283

Unavailable

14075

CAP-ASSY,PRESSURE

K1407-51105

Unavailable

16142

COVER-PUMP,WATER

K1614-20002

Unavailable

16160

BODY,THERMOSTAT,LWR

K1616-01112

Unavailable

16160A

BODY,THERMOSTAT,UPP

K1616-01113

Unavailable

16160B

BODY

K1616-01359

$7.75

27010

SWITCH,FAN

K2701-01202

$87.55

27010A

SWITCH,SENSOR WATER

K2701-01346

Unavailable

39060

RADIATOR

K3906-00011

Unavailable

39062

HOSE-COOLING,HEAD-FILTER

K3906-21816

Unavailable

39062A

HOSE-COOLING,CARB-VALVE

K3906-21817

Unavailable

39062B

HOSE-COOLING,VALVE-WATER PUMP

K3906-21818

Unavailable

39062C

HOSE CLNG,HD FR This part replaces K3906-21820.

K3906-20181

Unavailable

39062D

HOSE-COOLING,THERMO-RESERV

K3906-21823

Unavailable

39062E

HOSE-COOLING,FILTER-CARB

K3906-21858

Unavailable

39062F

HOSE-COOLING,5.5X10.5X1030

K3906-21872

Unavailable

39062G

HOSE CLNG,HD RR This part replaces K3906-21874.

K3906-20182

Unavailable

39062H

NO DESCRIPTION AVAILABLE This part replaces K3906-21875.

K3906-20081

Unavailable

39062I

NO DESCRIPTION AVAILABLE This part replaces K3906-21893.

K3906-20183

Unavailable

43078

RESERVOIR This part replaces K4307-81171.

K4307-80066

$106.03

49019

FILTER-WATER

K4901-91068

Unavailable

49054

THERMOSTAT

K4905-41055

Unavailable

49063

SEAL-MECHANICAL,WATER

K4906-31055

$30.98

49085

CAP-ASSY-PRESSURE

K4908-51067

$49.70

49116

VALVE-ASSY

K4911-61190

Unavailable

59041

FAN

K5904-11062

Unavailable

59256

IMPELLER

K5925-61069

Unavailable

59502

FAN-ASSY

K5950-20012

Unavailable

92005

FITTING

K9200-51337

Unavailable

92009

SCREW,6X16

K9200-91621

$1.70

92015

NUT

K9201-51487

Unavailable

92022

WASHER,6.2X11X1

KK920-22304

$2.76

92037

CLAMP,TUBE

KK920-37147

$5.42

92037A

CLAMP,HOSE

K9203-71552

Unavailable

92037B

CLAMP,COOLING HOSE

K9203-71589

Unavailable

92055

RING-O,44.7X2.4

K9205-51279

Unavailable

92075

DAMPER

KK920-75209

$3.67

92143

COLLAR

K9214-31353

Unavailable

92153

BOLT

K9215-30531

Unavailable

92160

DAMPER,VALVE

K9216-01451

Unavailable

92170

CLAMP,COOLING HOSE

K9217-01286

Unavailable

92170A

CLAMP

K9217-01491

Unavailable

92170B

CLAMP

K9217-01492

Unavailable

92170C

CLAMP

K9217-01493

Unavailable

92170D

CLAMP

K9217-01514

$3.75

92210

NUT

K9221-01323

Unavailable

92210A

NUT

K9221-01396

Unavailable

132

BOLT-FLANGED-SMALL

KK132-H0616

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

KK132-H0625

Unavailable

132B

BOLT-FLANGED-SMALL

KK132-J0690

Unavailable

132C

BOLT-FLANGED-SMALL

KK132-Y0612

Unavailable

132D

BOLT-FLANGED-SM This part replaces KK132-Y0620.

K132B-D0620

$1.70

132E

BOLT-FLANGED-SM This part replaces KK132-Y0630.

K132B-D0630

$1.97

224

SCREW-PAN-WP-CROS

KK224-C0612

Unavailable

551

PIN-DOWEL,4X8

KK551-A0408

Unavailable

670

O RING,20MM

KK670-B2020

Unavailable
