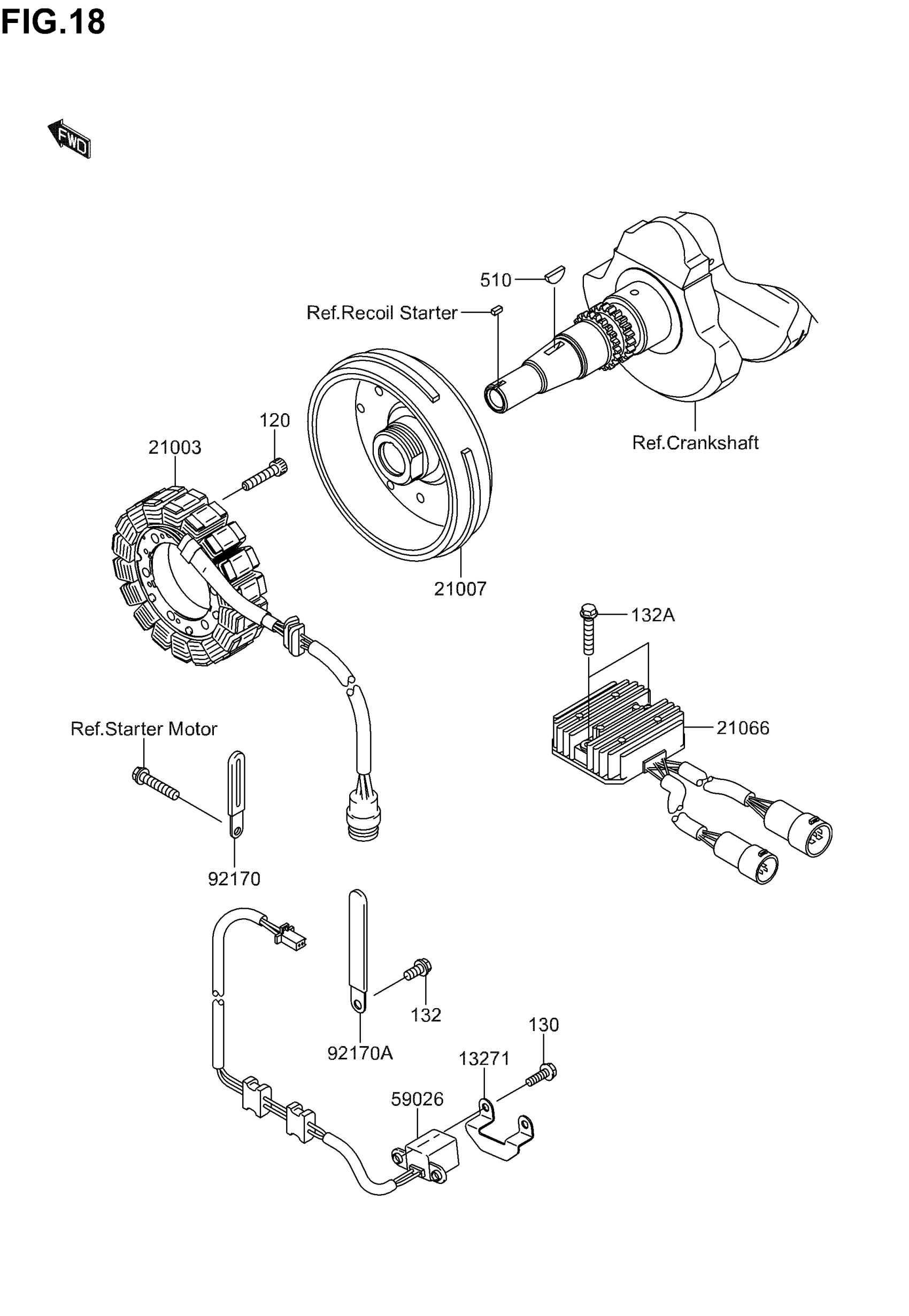

Suzuki LT-V700F (CA) (2005) GENERATOR Diagram

#

Description

Price

13271

PLATE

K1327-11369

Unavailable

21003

STATOR

K2100-31359

Unavailable

21007

ROTOR

K2100-71367

Unavailable

21066

REGULATOR,VOLTA This part replaces K2106-61112.

K2106-60047

Unavailable

59026

COIL-PULSING

K5902-61159

Unavailable

92170

CLAMP

K9217-01514

$3.75

92170A

CLAMP

K9217-01925

Unavailable

120

BOLT-SOCKET,6X28

KK120-P0628

Unavailable

130

NO DESCRIPTION AVAILABLE This part replaces KK130-G0516.

K130B-A0516

Unavailable

132

BOLT-FLANGED-SMALL

KK132-Y0612

Unavailable

132A

BOLT-FLANGED-SM This part replaces KK132-Y0630.

K132B-D0630

$1.97

510

KEY-WOODRUFF

KK510-A4200

Unavailable
