2005 Suzuki LT-V700F (CA) Front Fender Diagram

← All diagrams

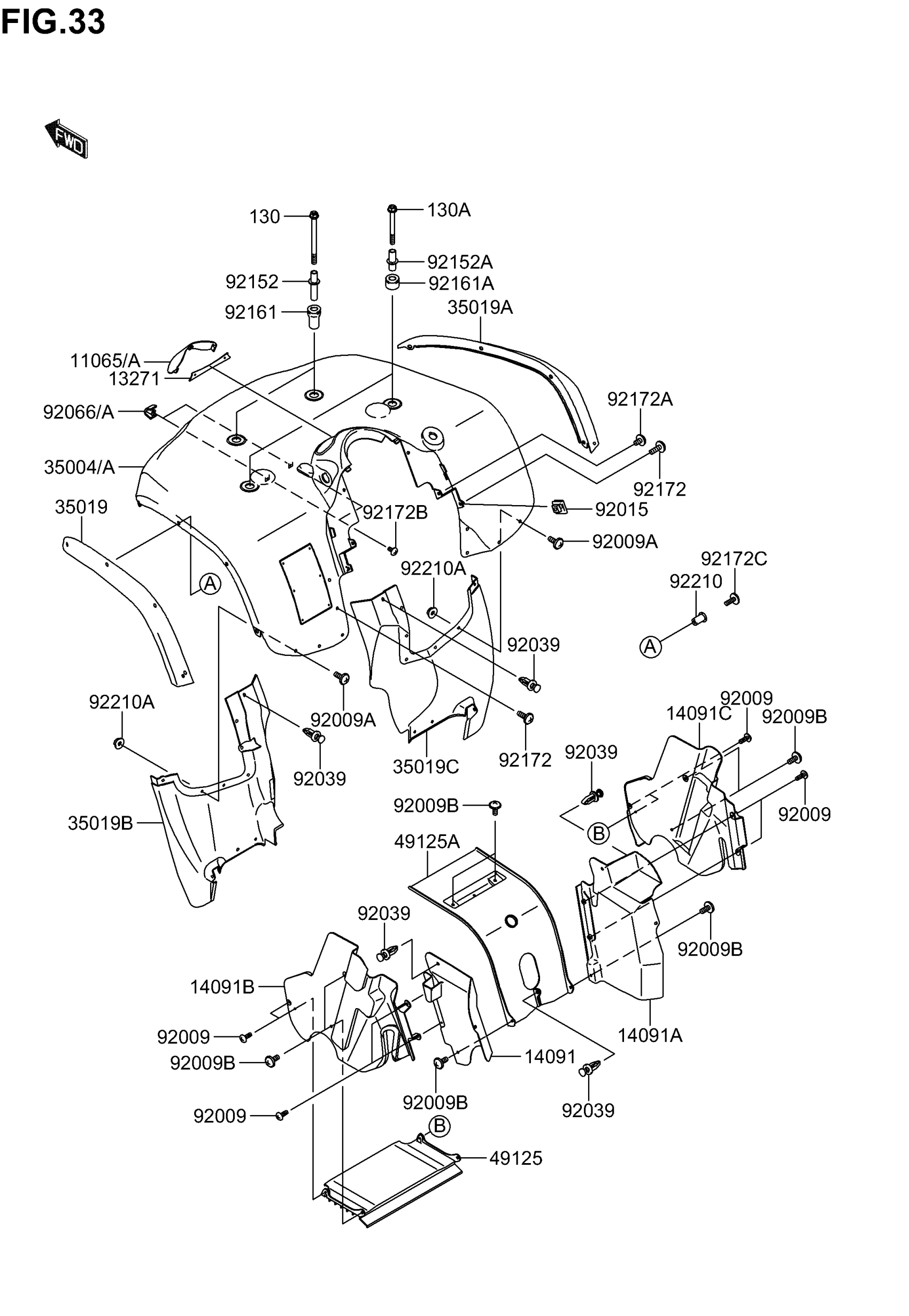

Find the part on the Front Fender diagram for your 2005 Suzuki LT-V700F (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-V700F (CA) Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,FR FENDER,C.YELLOW

K1106-51204-267

1
Out of stock

11065A

CAP,FR FENDER,G.BLUE

K1106-51204-278

1
Out of stock

13271

PLATE,FR FENDER CAP

K1327-11640

1
Out of stock

14091

COVER,SIDE,RR,LH

K1409-11282

1
Out of stock

14091A

COVER,SIDE,RR,RH

K1409-11283

1
Out of stock

14091B

COVER,SIDE,FR,LH

K1409-11428

1
Out of stock

14091C

COVER,SIDE,FR,RH

K1409-11429

1
Out of stock

35004

FENDER-FRONT,C.YELLOW

K3500-41452-267

1
Out of stock

35004A

FENDER-FRONT,G.BLUE

K3500-41452-278

1
Out of stock

35019

FLAP,FR,SIDE,LH,F.BLACK

KK350-19136-56Z

1
Out of stock

35019A

FLAP,FR,SIDE,RH,F.BLACK

KK350-19136-66Z

1
Out of stock

35019B

FLAP,FR,RR,LH,F.BLACK

KK350-19139-16Z

1
Out of stock

35019C

FLAP,FR,RR,RH,F.BLACK

KK350-19139-26Z

1
Out of stock

49125

SHROUD,FR,LWR

K4912-50006

1
Out of stock

49125A

SHROUD,FR,UPP

K4912-51081

1
Out of stock

92009

SCREW,TAPPING,5X14

K9200-91197

8
Out of stock

92009A

SCREW,6X16

K9200-91621

11

$1.93

In stock

92009B

SCREW,6X14

K9200-91662

8
Out of stock

92015

NUT,CLAMP,6MM

K9201-51678

2
Out of stock

92039

RIVET This part replaces K9203-91229.

K9203-90776

5
Out of stock

92066

PLUG,FRONT FENDER,C.YELLOW

K9206-60028-267

2
Out of stock

92066A

PLUG,FRONT FENDER,G.BLUE

K9206-60028-278

2
Out of stock

92152

COLLAR,L=90

K9215-20025

2
Out of stock

92152A

COLLAR,L=60.7

K9215-20026

2
Out of stock

92161

DAMPER,L=58.5

K9216-10035

2
Out of stock

92161A

DAMPER,L=25.5

K9216-11166

2
Out of stock

92172

SCREW,6X18

K9217-20002

3
Out of stock

92172A

SCREW,6X10

K9217-20005

2
Out of stock

92172B

SCREW,TAPPING,4X10

K9217-20172

2
Out of stock

92172C

SCREW,5X18

K9217-21063

8
Out of stock

92210

NUT,POP,5MM

K9221-00012

8
Out of stock

92210A

NUT,6MM

K9221-01368

12
Out of stock

130

BOLT-FLANGED This part replaces K130S-08105.

KKK13-0CB08-105

2
Out of stock

130A

BOLT-FLANGED This part replaces KK130-S0875.

K130C-B0875

2
Out of stock
