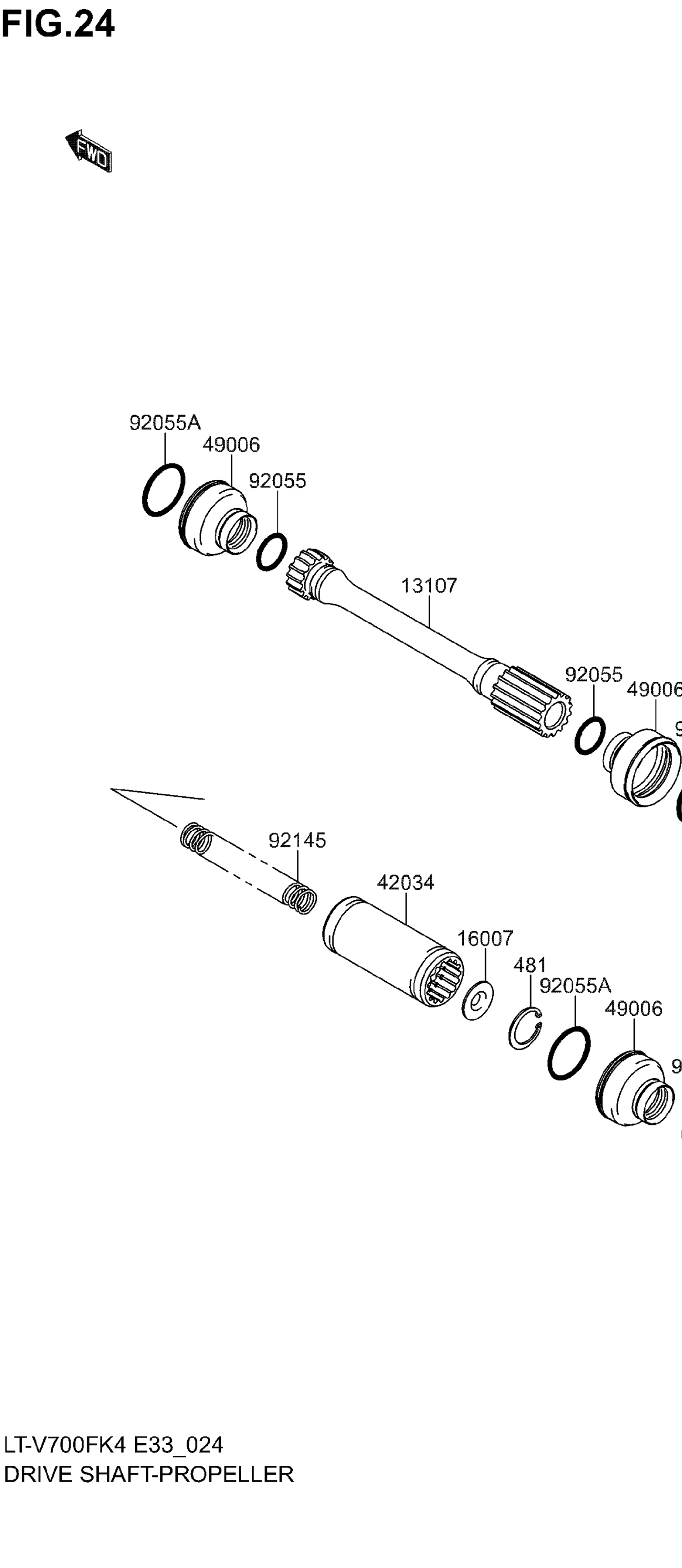

Suzuki LT-V700F (CA) (2005) DRIVE SHAFT-PROPELLER Diagram

#

Description

Price

13107

SHAFT,FR PROPELLER SHAFT

K1310-71505

Unavailable

16007

SEAT-SPRING,PRO This part replaces K1600-71205.

K1600-70042

Unavailable

42034

COUPLING,PROPELLER

K4203-41193

Unavailable

49006

BOOT

K4900-61362

Unavailable

92055

RING-O,18X24X3

K9205-51633

Unavailable

92055A

RING-O,30X35X2.5

K9205-51693

Unavailable

92145

SPRING,PROPELLER SHAFT

K9214-51304

Unavailable

481

CIRCLIP-TYPE-C,25MM

KK481-J2500

Unavailable
