2005 Suzuki LT-V700F (CA) Drive Converter Diagram

← All diagrams

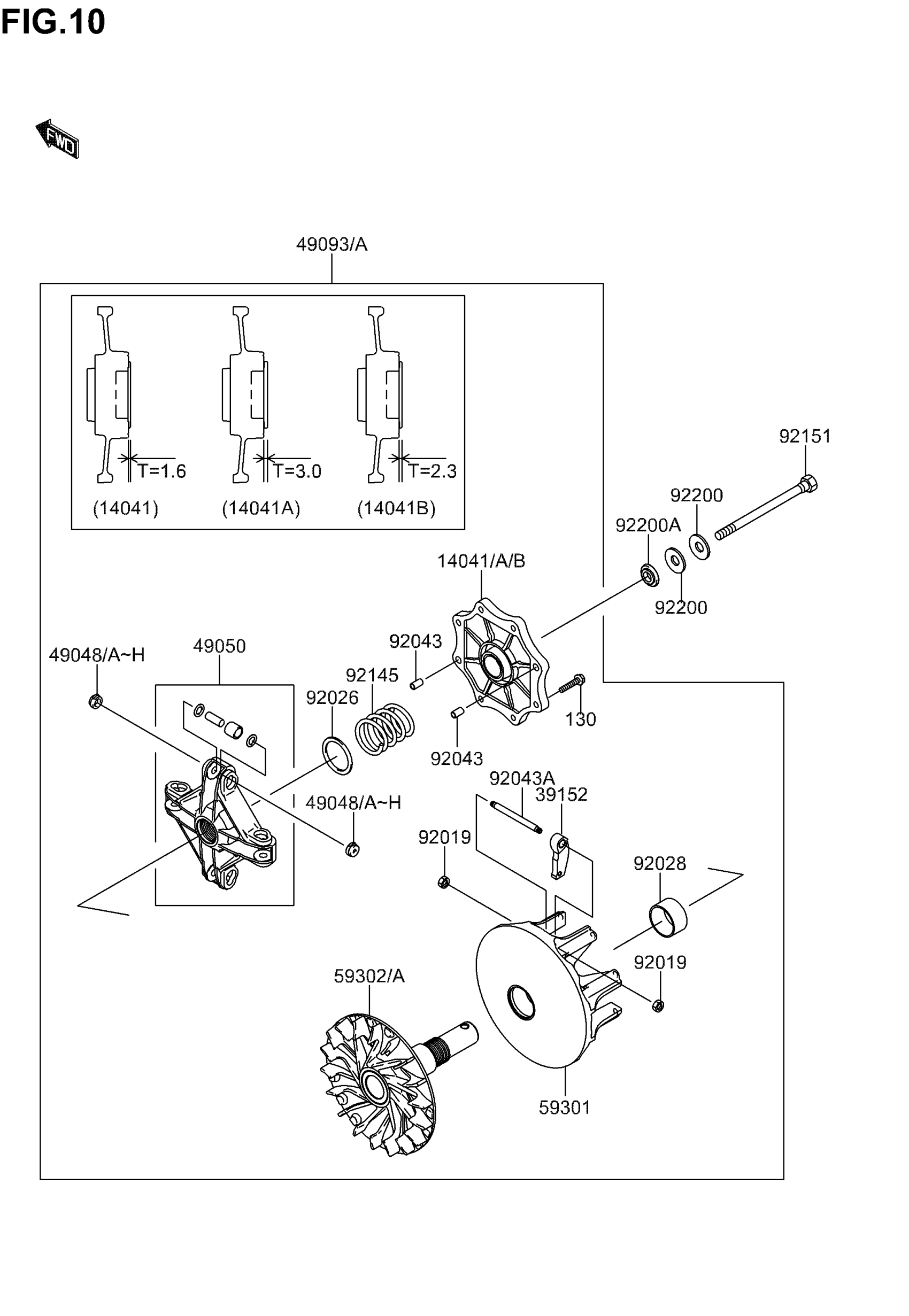

Find the part on the Drive Converter diagram for your 2005 Suzuki LT-V700F (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-V700F (CA) Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14041

NO DESCRIPTION AVAILABLE This part replaces K1404-11159.

K1404-10035

1
Out of stock

14041A

NO DESCRIPTION AVAILABLE This part replaces K1404-11160.

K1404-10036

1
Out of stock

14041B

COVER COMP,STD This part replaces K1404-11161.

K1404-10037

1
Out of stock

39152

WEIGHT-RAMP

K3915-21081

4
Out of stock

49048

SHOE,T=7.2

K4904-81087

1
Out of stock

49048A

SHOE,T=7.3

K4904-81088

1
Out of stock

49048B

SHOE,T=7.4

K4904-81089

1
Out of stock

49048C

SHOE,T=7.5

K4904-81090

1
Out of stock

49048D

SHOE,T=7.6

K4904-81091

1
Out of stock

49048E

SHOE,T=7.7

K4904-81092

1
Out of stock

49048F

SHOE,T=7.8

K4904-81093

1
Out of stock

49048G

SHOE,T=7.9

K4904-81094

1
Out of stock

49048H

SHOE,T=8.0

K4904-81095

1
Out of stock

49050

SPIDER This part replaces K4905-01081.

K4905-00010

1
Out of stock

49093

CONVERTER ASSY, | K4 This part replaces K4909-30002.

K4909-30036

1
Out of stock

49093A

CONVERTER ASSY, | K5 This part replaces K4909-30011.

K4909-30027

1
Out of stock

59301

SHEAVE-MOVABLE

K5930-11070

1
Out of stock

59302

SHEAVE-COMP | K5

K5930-20003

1
Out of stock

59302A

SHEAVE-COMP | K4

K5930-21106

1
Out of stock

92019

NUT,LOCK,6MM

KK920-19008

8
Out of stock

92026

SPACER,39X49.5X1.0

K9202-61603

1
Out of stock

92028

BUSHING

K9202-81975

1
Out of stock

92043

PIN,6.2X8X14

K9204-31263

2
Out of stock

92043A

PIN

K9204-31688

4
Out of stock

92145

SPRING

K9214-50021

1
Out of stock

92151

BOLT

K9215-11393

1
Out of stock

92200

WASHER,SPRING

K9220-01504

2
Out of stock

92200A

WASHER

K9220-01634

1
Out of stock

130

BOLT-FLANGED

KK130-T0630

8
Out of stock
