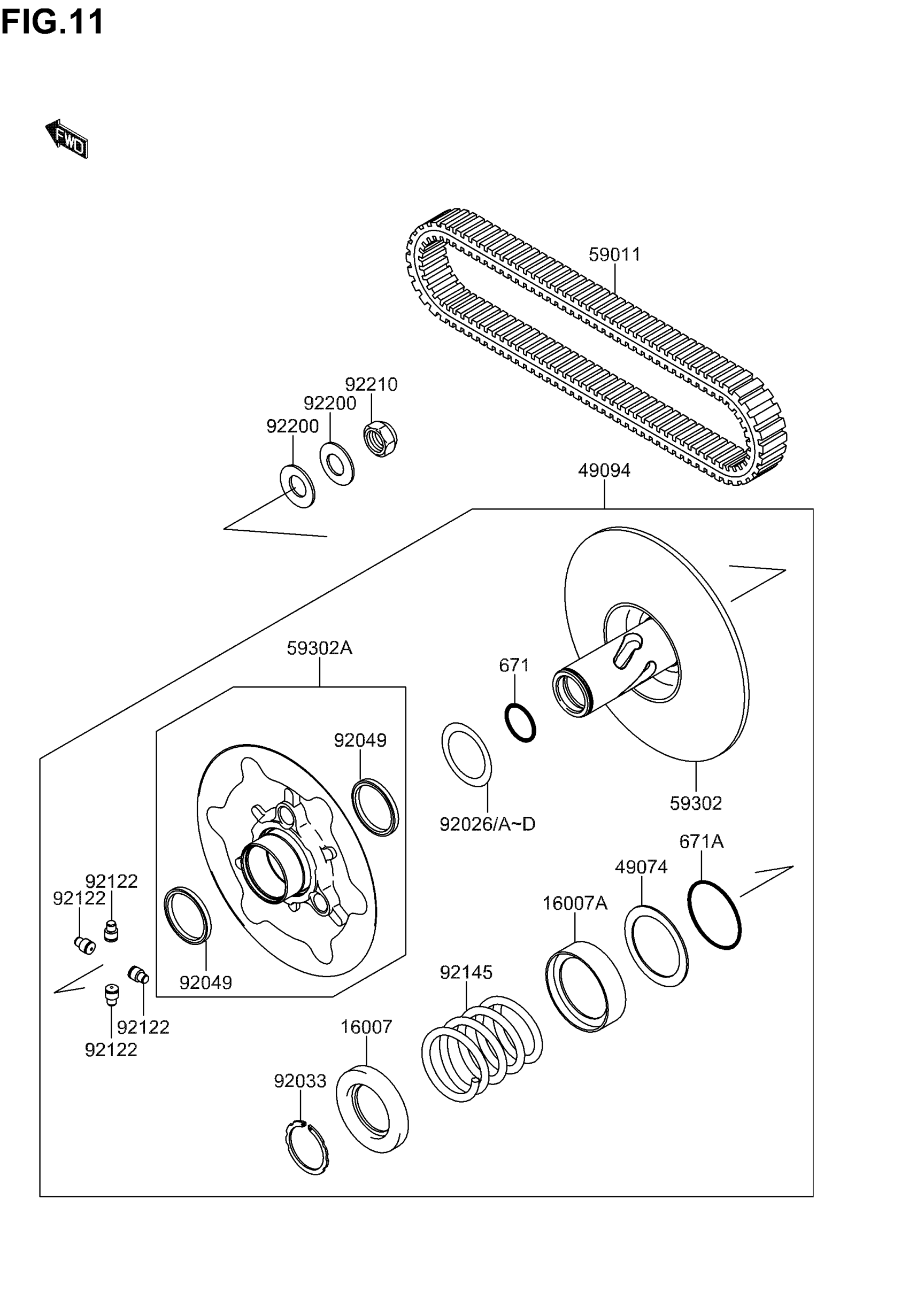

Suzuki LT-V700F (CA) (2005) DRIVEN CONVERTER Diagram

#

Description

Price

16007

SEAT-SPRING

K1600-71203

Unavailable

16007A

SEAT-SPRING,SHEAVE MOVABLE

K1600-71221

Unavailable

49074

PLATE-THRUST

K4907-41055

Unavailable

49094

CONVERTER ASSY, This part replaces K4909-40005.

K4909-40068

Unavailable

59011

BELT

K5901-10003

Unavailable

59302

SHEAVE-COMP,FIXED

K5930-20001

Unavailable

59302A

SHEAVE COMP,MOV This part replaces K5930-20002.

K5930-20039

Unavailable

92026

SPACER,T=0.3

K9202-60034

Unavailable

92026A

SPACER,T=1.00

K9202-61565

Unavailable

92026B

SPACER,T=0.60

K9202-61569

Unavailable

92026C

SPACER,T=1.40

K9202-61570

Unavailable

92026D

SPACER,T=0.8

K9202-61617

Unavailable

92033

RING-SNAP

K9203-31317

Unavailable

92049

SEAL-OIL

K9204-91528

Unavailable

92122

ROLLER

K9212-21209

Unavailable

92145

SPRING,YELLOW

K9214-51462

Unavailable

92200

WASHER

K9220-01505

Unavailable

92210

NUT,18MM

K9221-01367

Unavailable

671

O RING

KK671-D2530

Unavailable

671A

O RING

KK671-D2550

Unavailable
