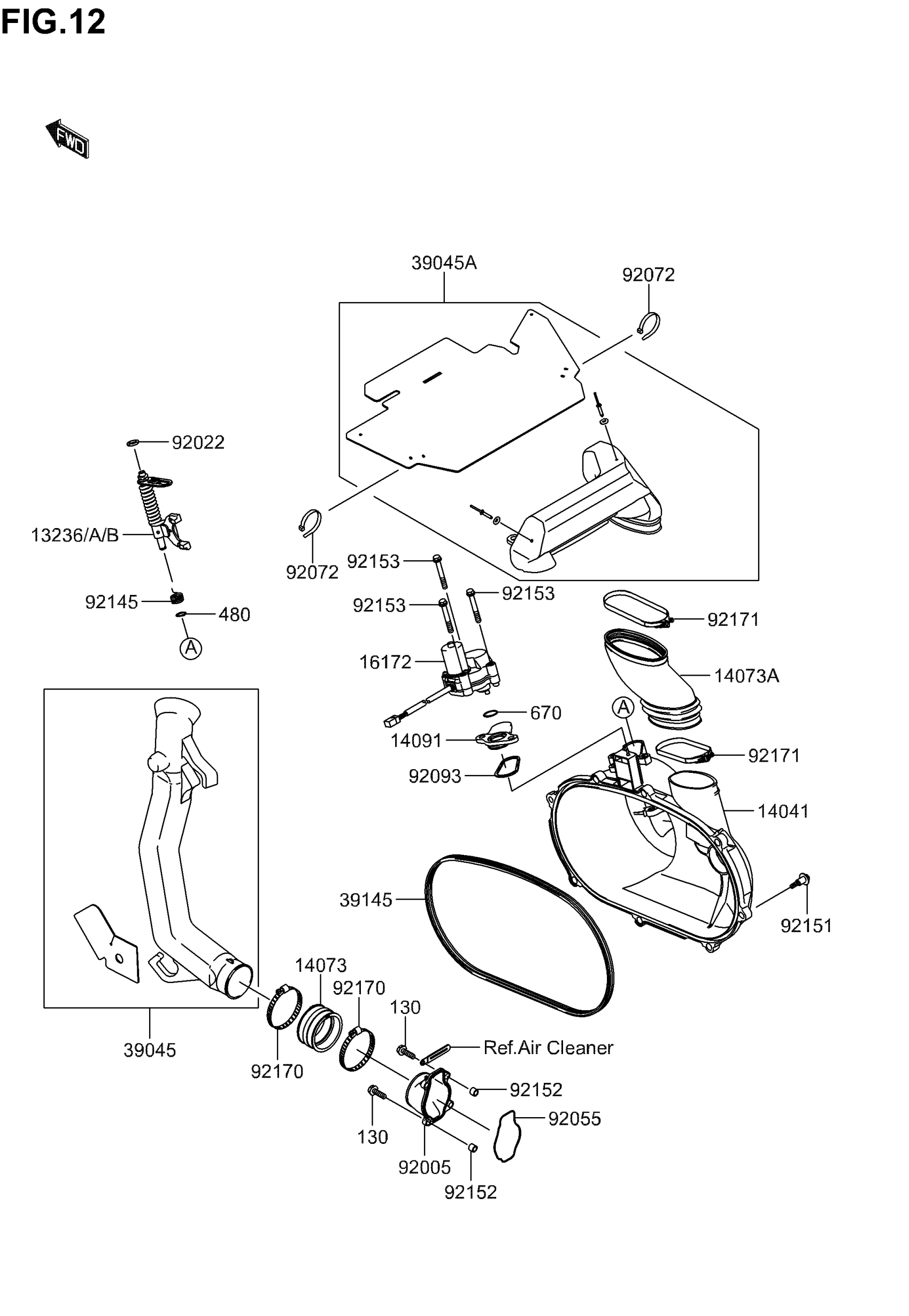

Suzuki LT-V700F (CA) (2005) CONVERTER COVER/DRIVE BELT Diagram

#

Description

Price

13236

LEVER-COMP,YELLOW

K1323-60046

Unavailable

13236A

LEVER-COMP,GREEN

K1323-60047

Unavailable

13236B

LEVER-COMP,PAINT LESS

K1323-60048

Unavailable

14041

COVER-COMP

K1404-10007

Unavailable

14073

DUCT,JOINT

K1407-31775

Unavailable

14073A

DUCT,EXHAUST

K1407-31792

Unavailable

14091

COVER

K1409-11421

Unavailable

16172

ACTUATOR This part replaces K1617-20002.

K1617-20018

Unavailable

39045

DUCT-ASSY,SNORKEL,IN

K3904-50002

Unavailable

39045A

DUCT-ASSY,SNORKEL,EX

K3904-51063

Unavailable

39145

TRIM-SEAL This part replaces K3914-51135.

K3914-50702

Unavailable

92005

FITTING

K9200-51387

Unavailable

92022

WASHER,10.2X16X1

K9202-21829

Unavailable

92055

RING-O

K9205-51630

Unavailable

92072

BAND,L=188

K9207-21239

Unavailable

92093

SEAL

K9209-31548

Unavailable

92145

SPRING

K9214-51567

Unavailable

92151

BOLT

K9215-11686

$7.75

92152

COLLAR

K9215-21332

Unavailable

92153

BOLT,6X47

K9215-30678

Unavailable

92170

CLAMP

K9217-01764

Unavailable

92171

CLAMP

K9217-11336

Unavailable

130

BOLT-FLANGED

KK130-Z0620

Unavailable

480

CIRCLIP-TYPE-C,10MM

KK480-J1000

Unavailable

670

O RING

KK670-D3022

Unavailable
