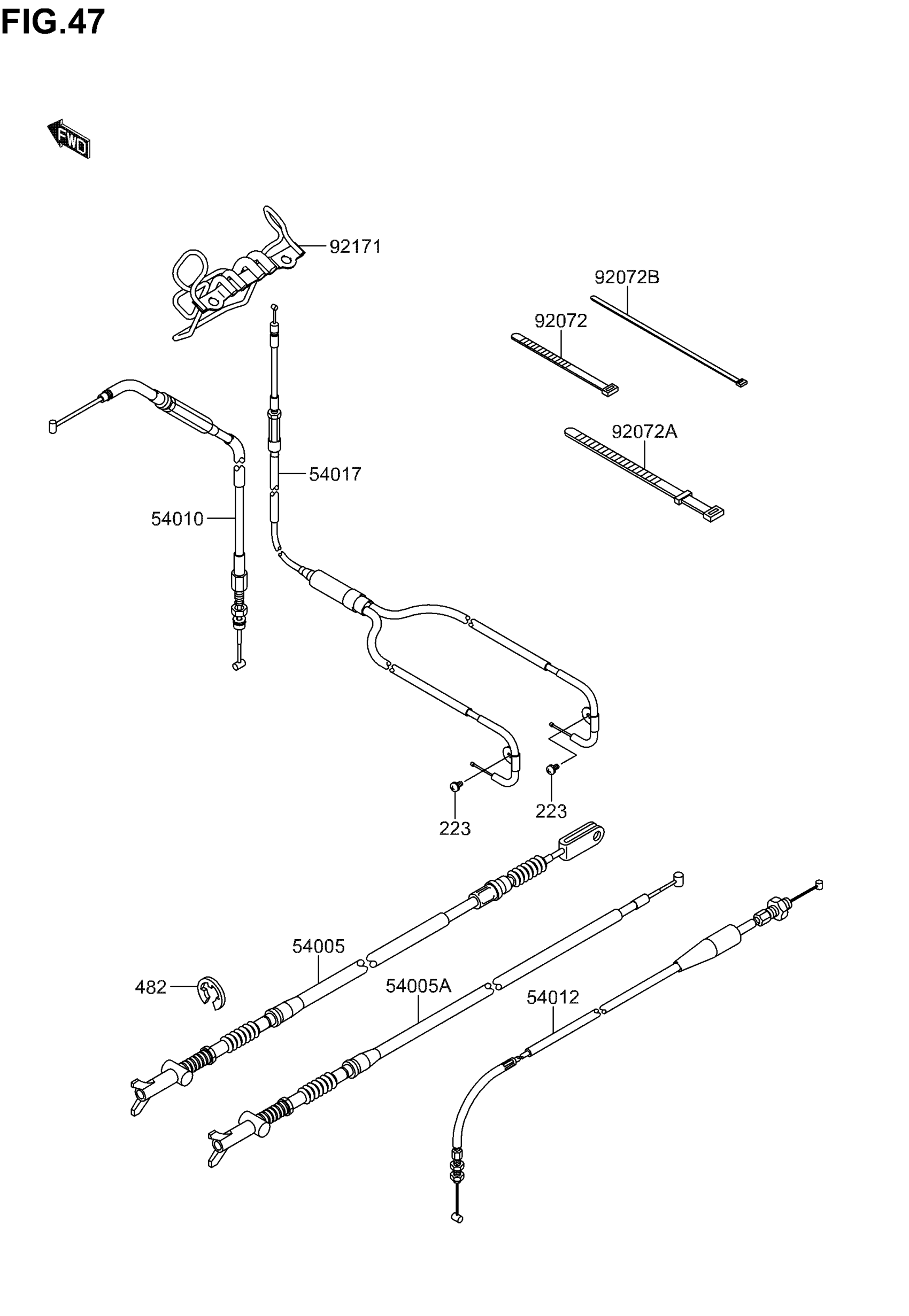

Suzuki LT-V700F (CA) (2005) CABLE Diagram

#

Description

Price

54005

CABLE,BREAK REA This part replaces K5400-50010.

K5400-50019

Unavailable

54005A

CABLE,BRAKE PAR This part replaces K5400-50012.

K5400-50020

$44.97

54010

CABLE,FRONT DIFF LOCK

K5401-00025

Unavailable

54012

CABLE-THROTTLE

K5401-20124

Unavailable

54017

CABLE-STARTER

K5401-70020

Unavailable

92072

BAND,L=123

KK920-72030

Unavailable

92072A

BAND,L=186

KK920-72056

Unavailable

92072B

BAND,L=188

K9207-21239

Unavailable

92171

CLAMP,CABLE

K9217-10001

Unavailable

223

SCREW-PAN-WS-CR This part replaces KK223-D0408.

K223A-A0408

Unavailable

482

CIRCLIP-TYPE-E,8MM

KK482-L8000

Unavailable
