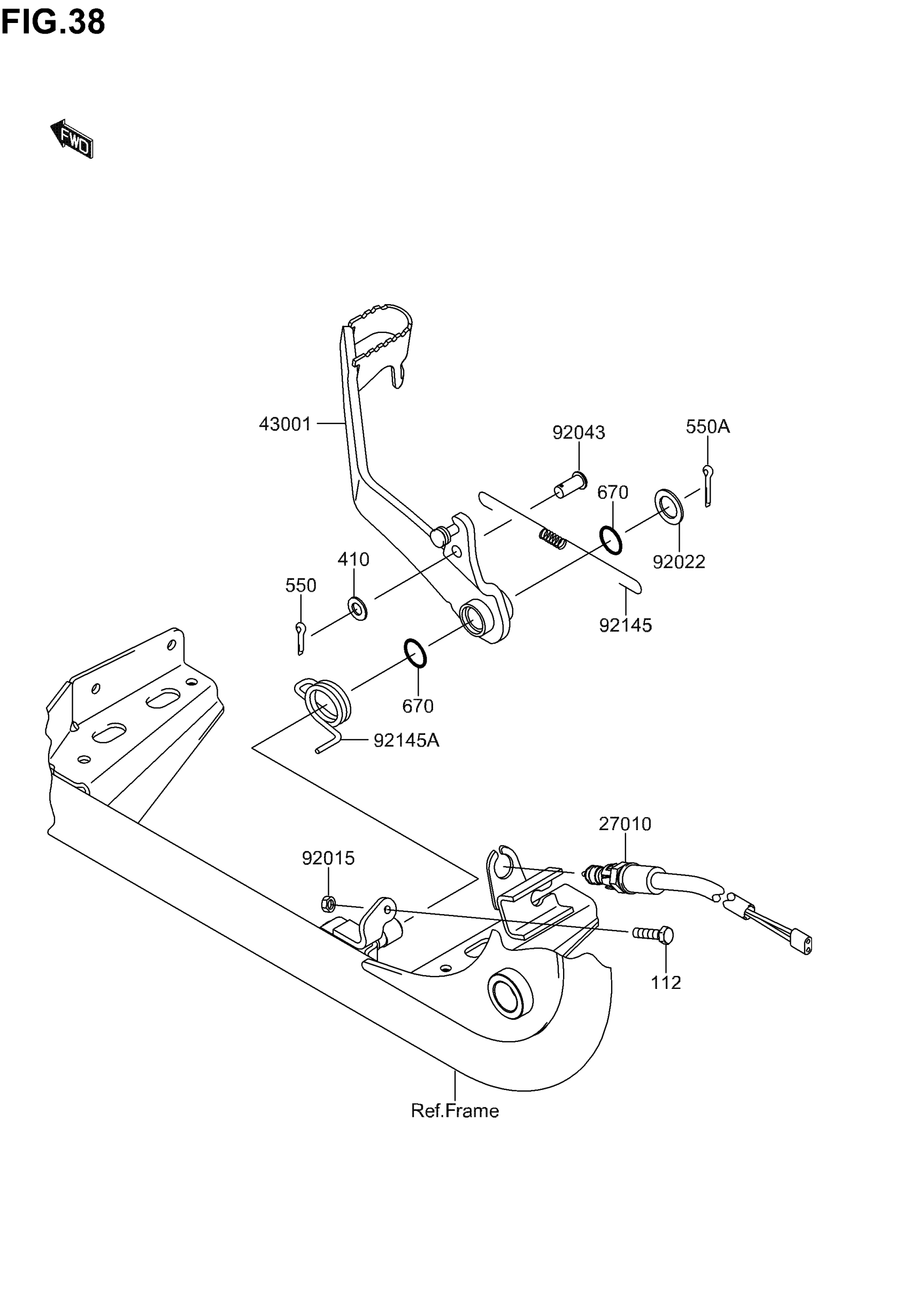

Suzuki LT-V700F (CA) (2005) BRAKE PEDAL Diagram

#

Description

Price

27010

SWITCH,BRAKE

K2701-01494

Unavailable

43001

LEVER-BRAKE,PEDAL

K4300-10036

Unavailable

92015

NUT,6MM

K9201-51410

Unavailable

92022

WASHER,15.5X24X1.6

K9202-21049

Unavailable

92043

PIN,8X16

K9204-31013

Unavailable

92145

SPRING,BRAKE SWITCH

K9214-50056

Unavailable

92145A

SPRING,BRAKE PEDAL RETURN

K9214-51421

Unavailable

112

BOLT-UPSET

KK112-D0622

Unavailable

410

WASHER,PLAIN,SM This part replaces KK410-B0800.

K410A-A0800

$1.49

550

PIN-COTTER,2.0X This part replaces KK550-D2015.

K550A-A2015

$1.49

550A

PIN-COTTER,2.0X This part replaces KK550-D2022.

K550A-A2022

Unavailable

670

O RING,15MM

KK670-B2015

Unavailable
