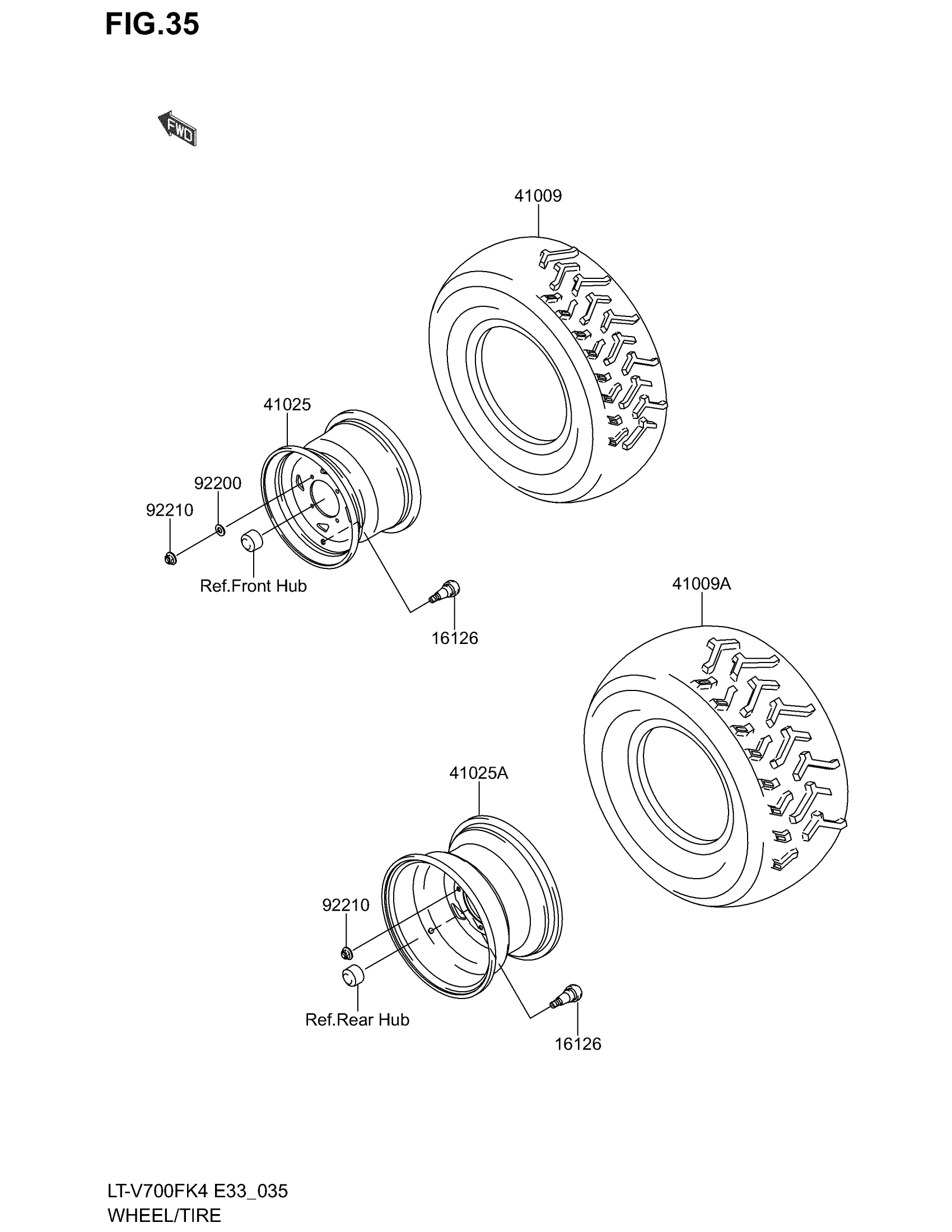

Suzuki LT-V700F (2004) WHEEL/TIRE Diagram

#

Description

Price

16126

VALVE

K1612-64001

Unavailable

41009

NO DESCRIPTION AVAILABLE This part replaces K4100-91117.

K4100-90149

Unavailable

41009A

TIRE,RR,AT25X10-12,KT127A

K4100-91380

Unavailable

41025

RIM,FR,12X6.0,SILVER

KK410-25137-55A

Unavailable

41025A

RIM,RR,12X7.5AT,SILVER

KK410-25142-65A

Unavailable

92200

WASHER,10.5X25X1.6

K9220-01595

Unavailable

92210

NUT,FLANGED,10MM

K9221-01325

Unavailable
