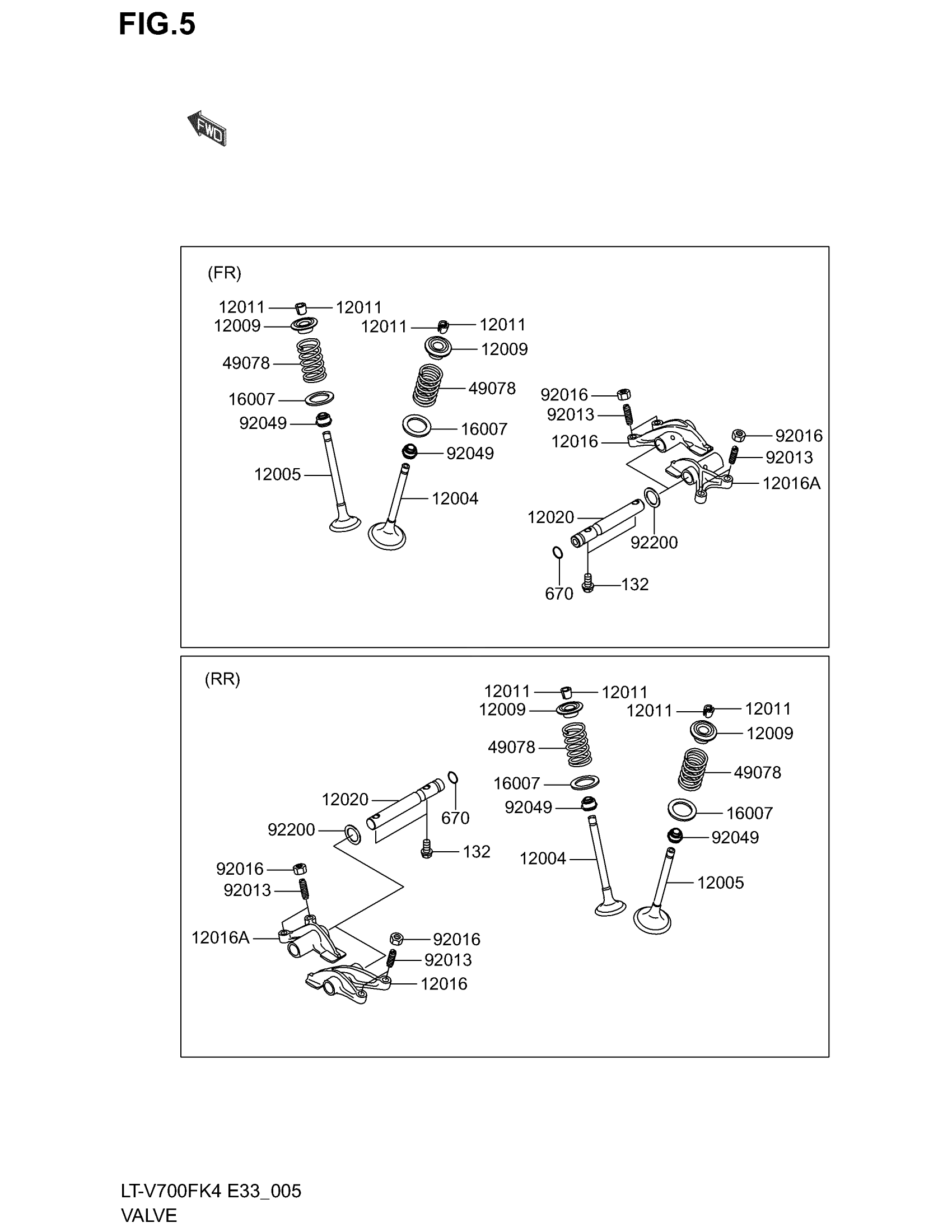

Suzuki LT-V700F (2004) VALVE Diagram

#

Description

Price

12004

VALVE,INTAKE This part replaces K1200-41146.

K1200-40717

Unavailable

12005

VALVE,EXHAUST This part replaces K1200-51349.

K1200-50047

Unavailable

12009

RETAINER-VALVE SPRING

K1200-91056

Unavailable

12011

COLLET

K1201-11051

Unavailable

12016

ARM-ROCKER,EXHAUST

K1201-61128

Unavailable

12016A

ARM-ROCKER,INTAKE

K1201-61129

Unavailable

12020

SHAFT-ROCKER

K1202-01083

Unavailable

16007

SEAT-SPRING,17.5X23.8X0.5

K1600-71178

Unavailable

49078

SPRING-ENGINE VALVE This part replaces K4907-81073.

K4907-80014

Unavailable

92013

SCREW,6MM

KK920-13009

Unavailable

92016

NUT,6MM

KK920-16061

Unavailable

92049

SEAL-OIL,VSB58.558

K9204-91218

Unavailable

92200

WASHER,ROCKER ARM

K9220-01508

Unavailable

132

BOLT-FLANGED-SMALL

KK132-Y0612

Unavailable

670

O RING,9MM

KK670-D1509

$3.92
