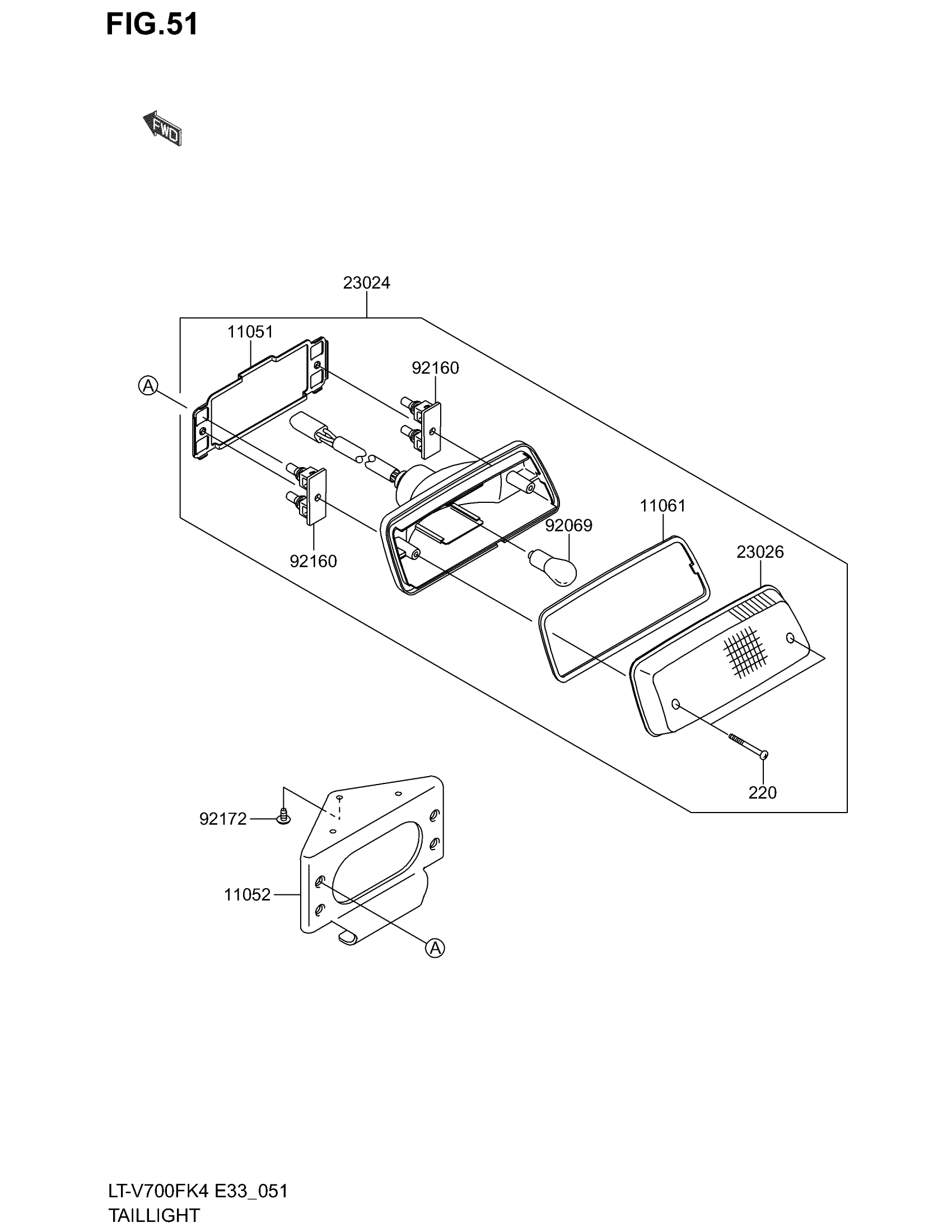

Suzuki LT-V700F (2004) TAILLIGHT Diagram

#

Description

Price

11051

BRACKET,TAIL LAMP

K1105-11870

Unavailable

11052

BRACKET,TAIL LAMP

K1105-21360

Unavailable

11061

GASKET,TAIL LAMP LENS

K1106-10055

Unavailable

23024

LAMP-ASSY-TAIL

K2302-41130

Unavailable

23026

LENS,TAIL LAMP

K2302-61230

Unavailable

92069

BULB,12V 21/5W

KK920-69063

Unavailable

92160

DAMPER,TAIL LAMP

K9216-01053

Unavailable

92172

SCREW,TAPPING,5 This part replaces K9217-21061.

K9217-20262

Unavailable

220

SCREW-PAN-CROS

KK220-B0440

Unavailable
