STARTER MOTOR

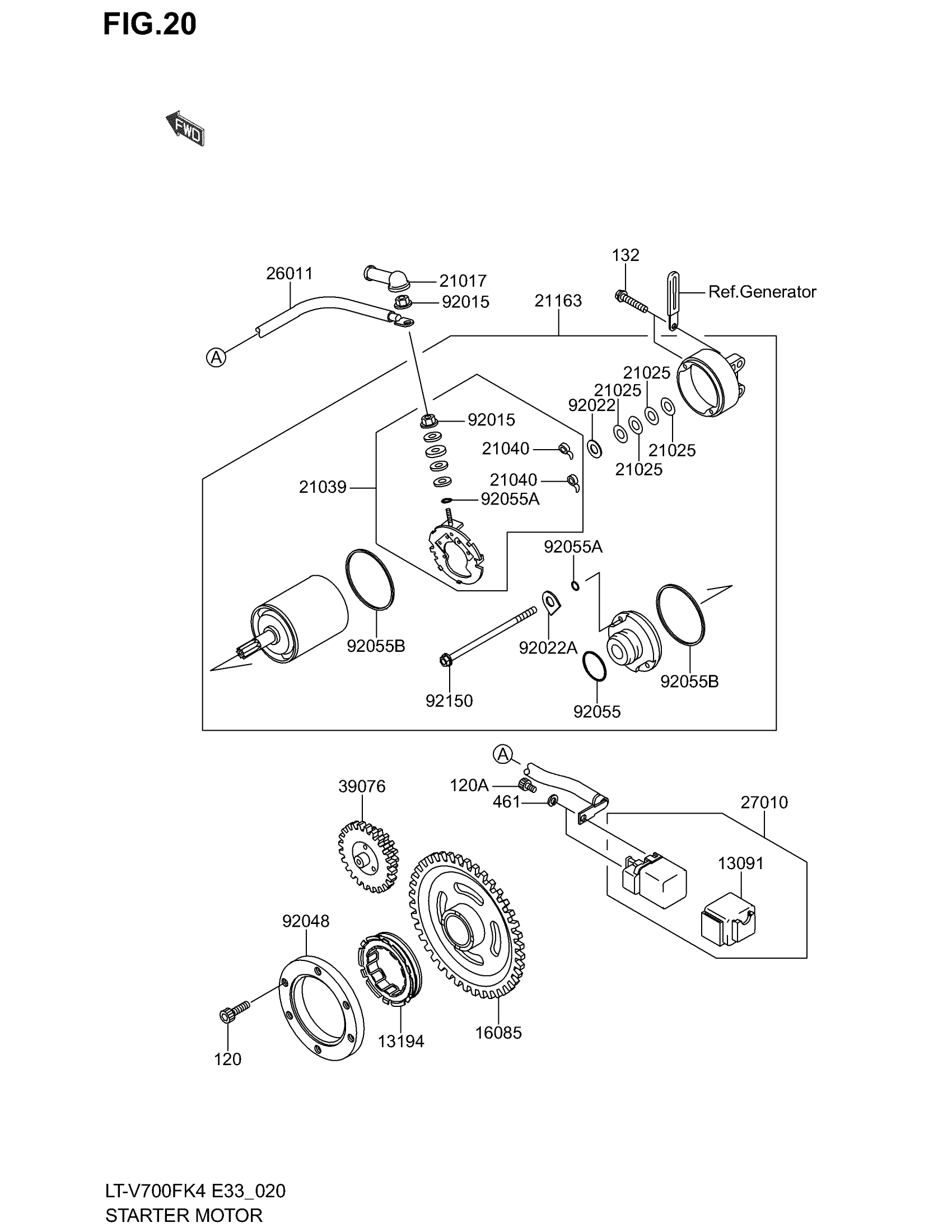

Suzuki LT-V700F (2004) STARTER MOTOR Diagram
#
Description
Price
13091
HOLDER
K1309-11992
Unavailable
13194
CLUTCH-ONEWAY
K1319-41094
Unavailable
16085
GEAR,STARTER
K1608-51238
Unavailable
21017
GROMMET,STARTER TERMINAL
KK210-17017
Unavailable
21025
WASHER,9.1X18X0.2
KK210-25011
Unavailable
21039
BRUSH,CARBON
K2103-91063
Unavailable
21040
SPRING-BRUSH
K2104-01057
Unavailable
21163
STARTER-ELECTRIC
K2116-31320
Unavailable
26011
WIRE-LEAD
K2601-11814
Unavailable
27010
SWITCH,MAGNETIC This part replaces K2701-01376.
K2701-00782
Unavailable
39076
NO DESCRIPTION AVAILABLE This part replaces K3907-61076.
K3907-60005
Unavailable
92015
NUT,STARTER MOTOR
K9201-51476
Unavailable
92022
WASHER,9.1X18X0.8
K9202-21132
Unavailable
92022A
WASHER,LOCK,T=2.0
K9202-21458
Unavailable
92048
RACE,ONE WAY CLUTCH This part replaces K9204-81090.
K9204-80002
Unavailable
92055
RING-O
K9205-51276
Unavailable
92055A
RING-O,4.5X2.0
K9205-51370
Unavailable
92055B
RING-O,STARTER MOTOR
K9205-51381
Unavailable
92150
BOLT
K9215-01243
Unavailable
120
BOLT-SOCKET
KK120-P0816
Unavailable
120A
BOLT-SOCKET
KK120-S0510
Unavailable
461
WASHER-SPRING,5MM,BLACK
KK461-K0500
Unavailable
