2004 Suzuki LT-V700F Recoil Starter Diagram

← All diagrams

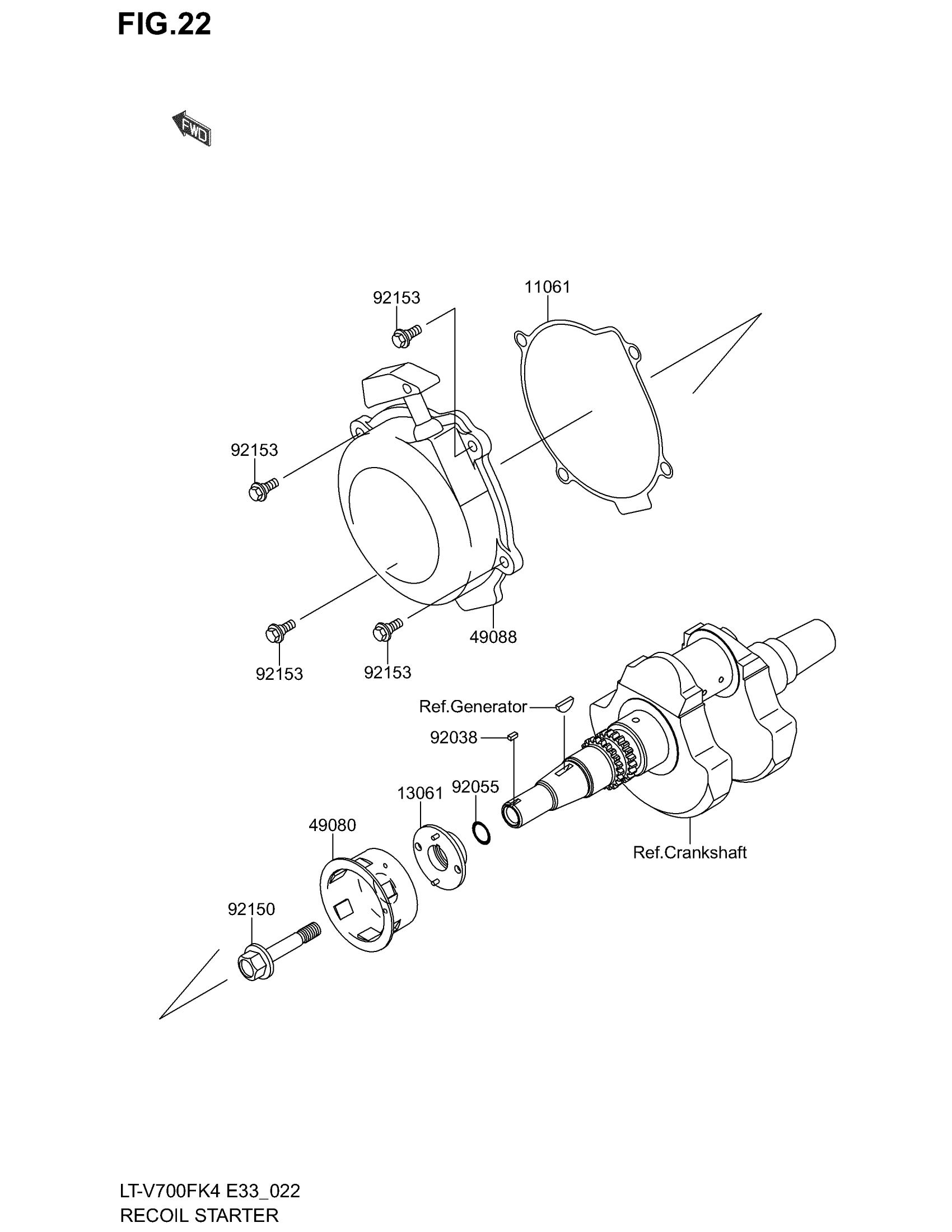

Find the part on the Recoil Starter diagram for your 2004 Suzuki LT-V700F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki LT-V700F Recoil Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,RECOIL STARTER

K1106-11153

1
Out of stock

13061

BOSS

K1306-11873

1
Out of stock

49080

PULLEY-STARTING

K4908-01061

1
Out of stock

49088

STARTER-RECOIL

K4908-80001

1
Out of stock

92038

KEY,SUNK

K9203-81051

1
Out of stock

92055

RING-O,19.8X2.2

K9205-51215

1
Out of stock

92150

BOLT,PULLEY

K9215-01987

1
Out of stock

92153

BOLT,RECOIL STARTER

K9215-37007

4
Out of stock
