2004 Suzuki LT-V700F Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2004 Suzuki LT-V700F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

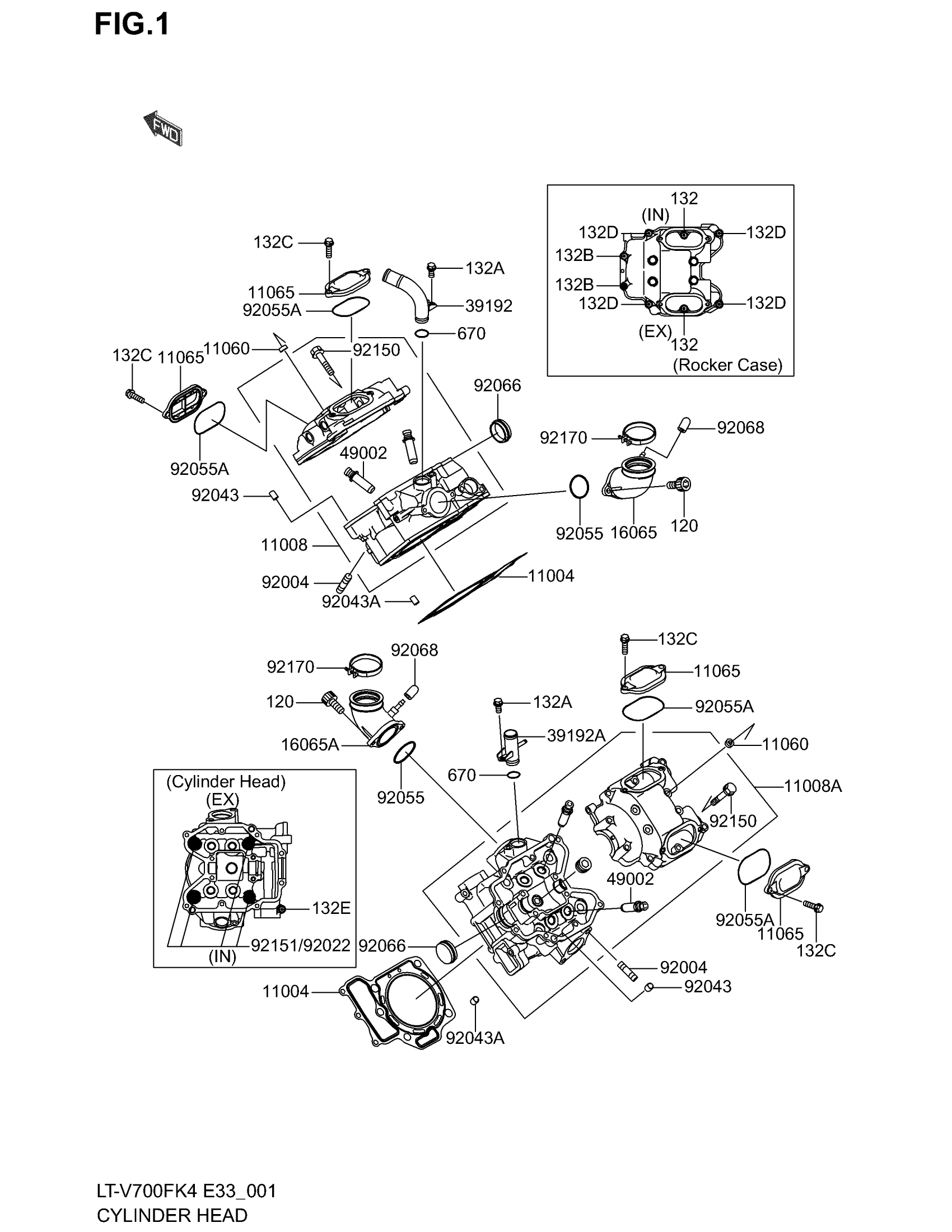

2004 Suzuki LT-V700F Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET,HEAD This part replaces K1100-41384.

K1100-40050

2
Out of stock

11008

HEAD-COMP-CYLINDER,FR

K1100-80016

1
Out of stock

11008A

HEAD-COMP-CYLINDER,RR

K1100-80017

1
Out of stock

11060

GASKET,6.2X12X0.3

K1106-01994

8
Out of stock

11065

CAP,ROCKER CASE

K1106-51152

4
Out of stock

16065

HOLDER-CARBURETOR

K1606-51370

1
Out of stock

16065A

HOLDER-CARBURETOR,RR

K1606-51371

1
Out of stock

39192

PIPE-WATER

K3919-21132

1
Out of stock

39192A

PIPE-WATER

K3919-21133

1
Out of stock

49002

GUIDE-VALVE

K4900-21097

1
Out of stock

92004

STUD,8X22

K9200-41217

4
Out of stock

92022

WASHER,11.5X20.5X1.6

K9202-21720

8
Out of stock

92043

PIN,6.2X8X14

K9204-31263

4
Out of stock

92043A

PIN,10.1X12X14

K9204-34009

4
Out of stock

92055

RING-O,38MM

K9205-51295

2
Out of stock

92055A

O RING,55.6X2.4 This part replaces K9205-51644.

K9205-50112

4
Out of stock

92066

PLUG

K9206-61289

2
Out of stock

92068

PLUG,12X25

KK920-68006

2
Out of stock

92150

BOLT,6X55

K9215-01302

8
Out of stock

92151

BOLT

K9215-11917

8
Out of stock

92170

CLAMP

K9217-01722

2
Out of stock

120

BOLT-SOCKET

KK120-Z0620

4
Out of stock

132

BOLT-FLANGED-SMALL,6X25

KK132-H0625

4
Out of stock

132A

BOLT-FLANGED-SMALL

KK132-Y0612

2
Out of stock

132B

BOLT-FLANGED-SMALL

K132Y-06130

4
Out of stock

132C

BOLT-FLANGED-SM This part replaces KK132-Y0620.

K132B-D0620

8
Out of stock

132D

8

$2.23

In stock

132E

BOLT-FLANGED-SMALL

KK132-Y0695

2
Out of stock

670

O RING,16MM

KK670-B2016

2

$4.52

In stock
