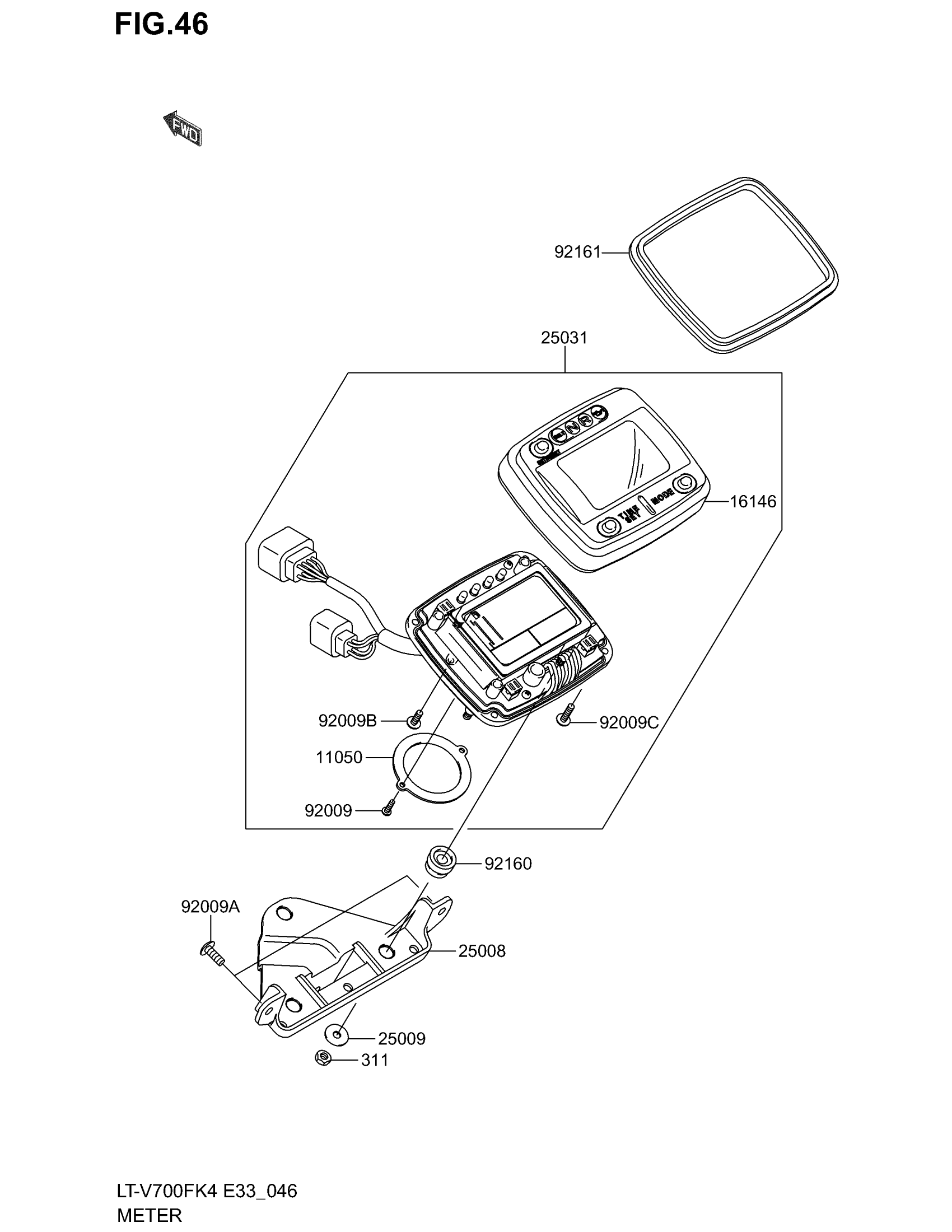

Suzuki LT-V700F (2004) METER Diagram

#

Description

Price

11050

BRACKET,METER

K1105-01932

Unavailable

16146

COVER-ASSY,UPPER

K1614-60015

Unavailable

25008

BRACKET-METER

K2500-81226

Unavailable

25009

WASHER,5.2X16X1.2

KK250-09004

Unavailable

25031

METER-ASSY,MPH

K2503-10039

Unavailable

92009

SCREW,TAPPING,3X12

K9200-91028

Unavailable

92009A

SCREW,TAPPING,5X14

K9200-91197

Unavailable

92009B

SCREW,TAPPING,4X12

K9200-91254

Unavailable

92009C

SCREW,6X18

K9200-93805

Unavailable

92160

DAMPER

K9216-01460

Unavailable

92161

DAMPER,METER,UPP

K9216-11114

Unavailable

311

NUT,HEX This part replaces KK311-C0500.

K311A-B0500

$1.49
