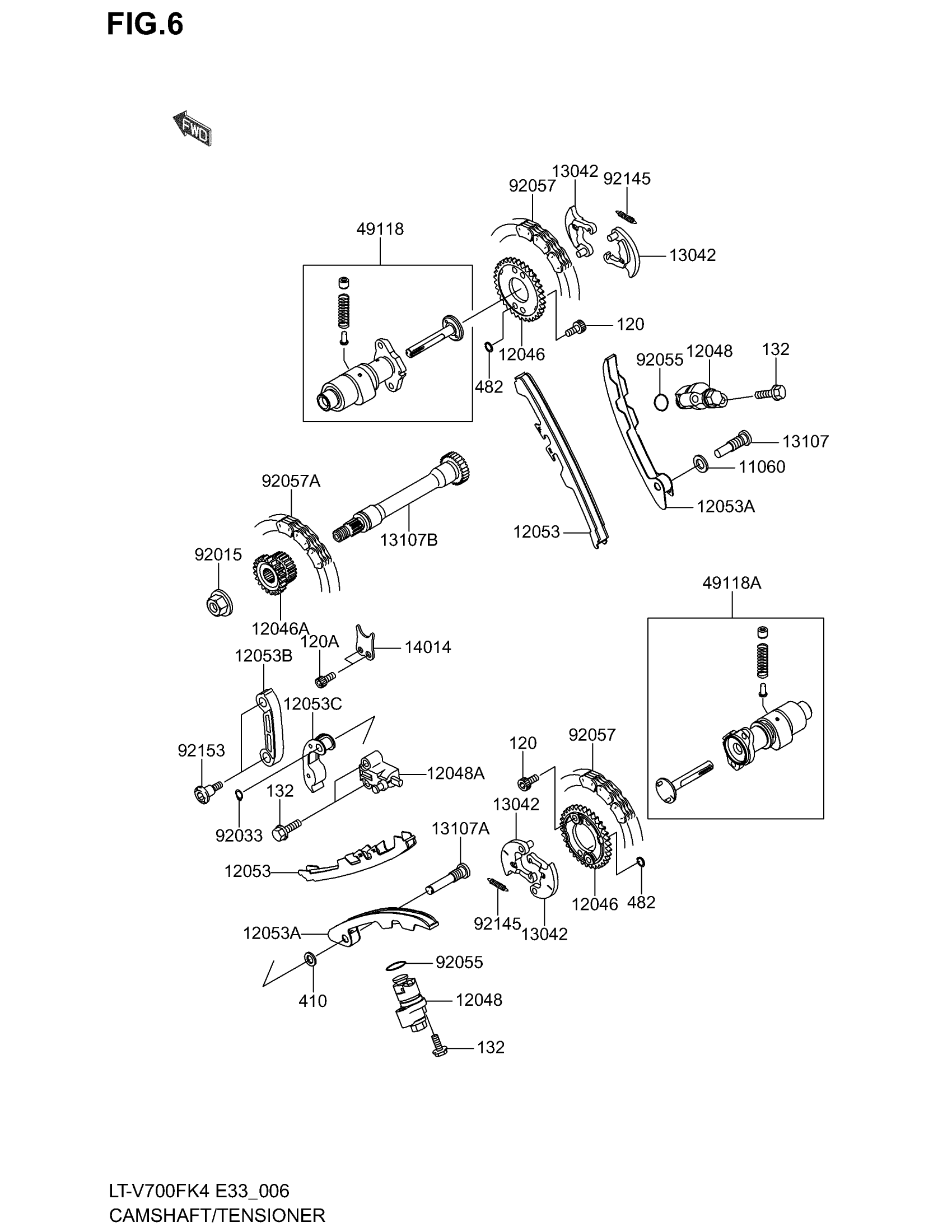

Suzuki LT-V700F (2004) CAMSHAFT/TENSIONER Diagram

GASKET

K1106-01966

Unavailable

SPROCKET,CAMSHAFT,34T

K1204-61203

Unavailable

SPROCKET,2ND SHAFT,21T&17T

K1204-61207

Unavailable

TENSIONER-ASSY,CAM

K1204-81176

Unavailable

TENSIONER-ASSY,SECONDARY

K1204-81177

Unavailable

GUIDE-CHAIN,CAMSHAFT,TENSION

K1205-31441

Unavailable

GUIDE-CHAIN,CAMSHAFT,SLACK

K1205-31442

Unavailable

GUIDE-CHAIN,TENSION

K1205-31443

Unavailable

GUIDE-CHAIN,SLACK

K1205-31444

Unavailable

WEIGHT,DECOMP

K1304-21141

Unavailable

SHAFT,CHAIN GUIDE,FR

K1310-71443

Unavailable

SHAFT,CHAIN GUIDE,RR

K1310-71444

Unavailable

SHAFT,SECONDARY

K1310-71514

Unavailable

PLATE-POSITION,DRIVE

K1401-41148

Unavailable

CAMSHAFT COMP,F This part replaces K4911-81193.

K4911-81238

$255.85

CAMSHAFT COMP,R This part replaces K4911-81194.

K4911-81239

$220.50

NUT,FLANGED,12MM

K9201-51433

Unavailable

RING-SNAP,8MM

K9203-31039

Unavailable

RING-O

KK920-55086

$3.52

CHAIN,CAM SHAFT

K9205-71487

Unavailable

CHAIN,SECONDARY SHAFT

K9205-71488

Unavailable

SPRING,DECOMP

K9214-51303

Unavailable

BOLT

K9215-31200

Unavailable

BOLT-SOCKET,6X10

KK120-P0610

Unavailable

NO DESCRIPTION AVAILABLE This part replaces KK120-S0614.

K120C-B0614

Unavailable

BOLT-FLANGED-SM This part replaces KK132-Y0630.

K132B-D0630

$1.97

WASHER,PLAIN,SM This part replaces KK410-B0800.

K410A-A0800

$1.49

CIRCLIP-TYPE-E

KK482-J5000

Unavailable
