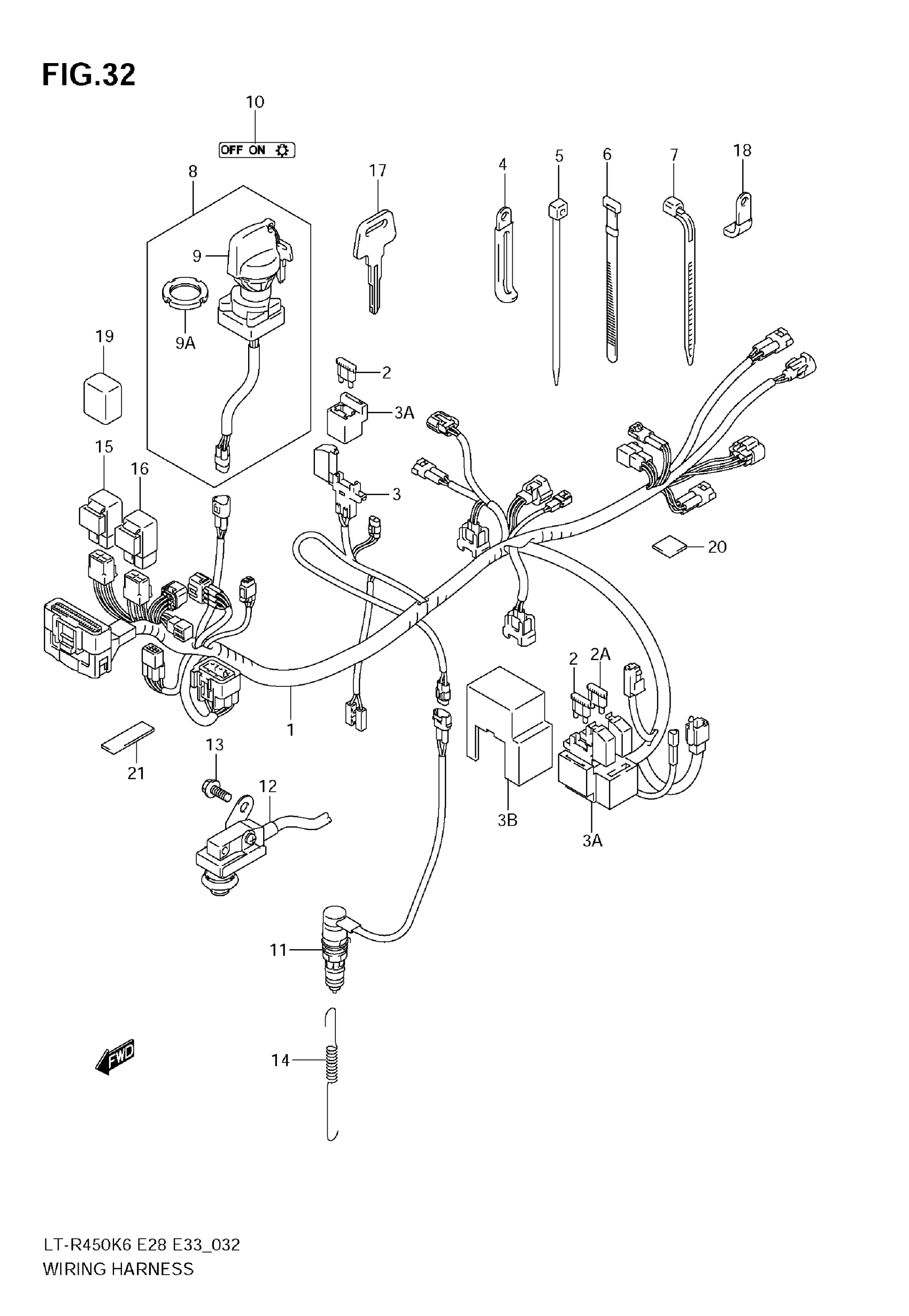

Suzuki LT-R450 (2009) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL K6/K7/K8

36610-45G00

$471.18

1

HARNESS, WIRING | MODEL K9; Includes Item(s) 2 - 3A

36610-45G10

$597.83

2

FUSE (10A)

09481-10101

$2.07

2A

FUSE (20A)

09481-20101

$2.12

3

HOLDER

36742-39D00

$19.15

3A

HOLDER

36742-45G00

$23.63

3B

COVER, FUSE

36717-45G00

$10.47

4

CLAMP (L:45)

09404-06429

$1.83

5

CLAMP (L:170)

09407-17403

$4.91

6

CLAMP (L:120)

09407-12402

$3.04

7

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP (L:165)

09407-18402

$2.19

8

SWITCH ASSY,IGN | Includes Item(s) 9 - 9A This part replaces 37110-45G00.

37110-45G01

$80.75

9

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

9A

.NUT,IGNITION SWITCH

37112-24500

$11.48

10

PLATE,CONTROL I This part replaces 37139-45G00.

37139-45G01

$3.10

11

SWITCH ASSY, STOP LAMP | MODEL K6/K7/K8

37740-45G00

Unavailable

12

SWITCH ASSY, STOP LAMP | MODEL K9

37740-45G10

Unavailable

13

SCREW, SWITCH | MODEL K9

02162-0608A

Unavailable

14

SPRING

09443-06088

$4.86

15

RELAY ASSY, FAN MOTOR

38740-24X50

$45.20

16

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

17

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

17

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

17

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

17

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07

18

CLAMP | MODEL K6/K7/K8

36651-24B00

Unavailable

19

COVER, CONNECTOR

36618-45G10

$9.90

20

PROTECTOR, HARNESS (30X80X1.0) | CUT AS REQUIRED (30X30)

33652-29F00

$3.03

21

PROTECTOR, HARNESS (20X50X2.0)

36920-45G00

$3.03
