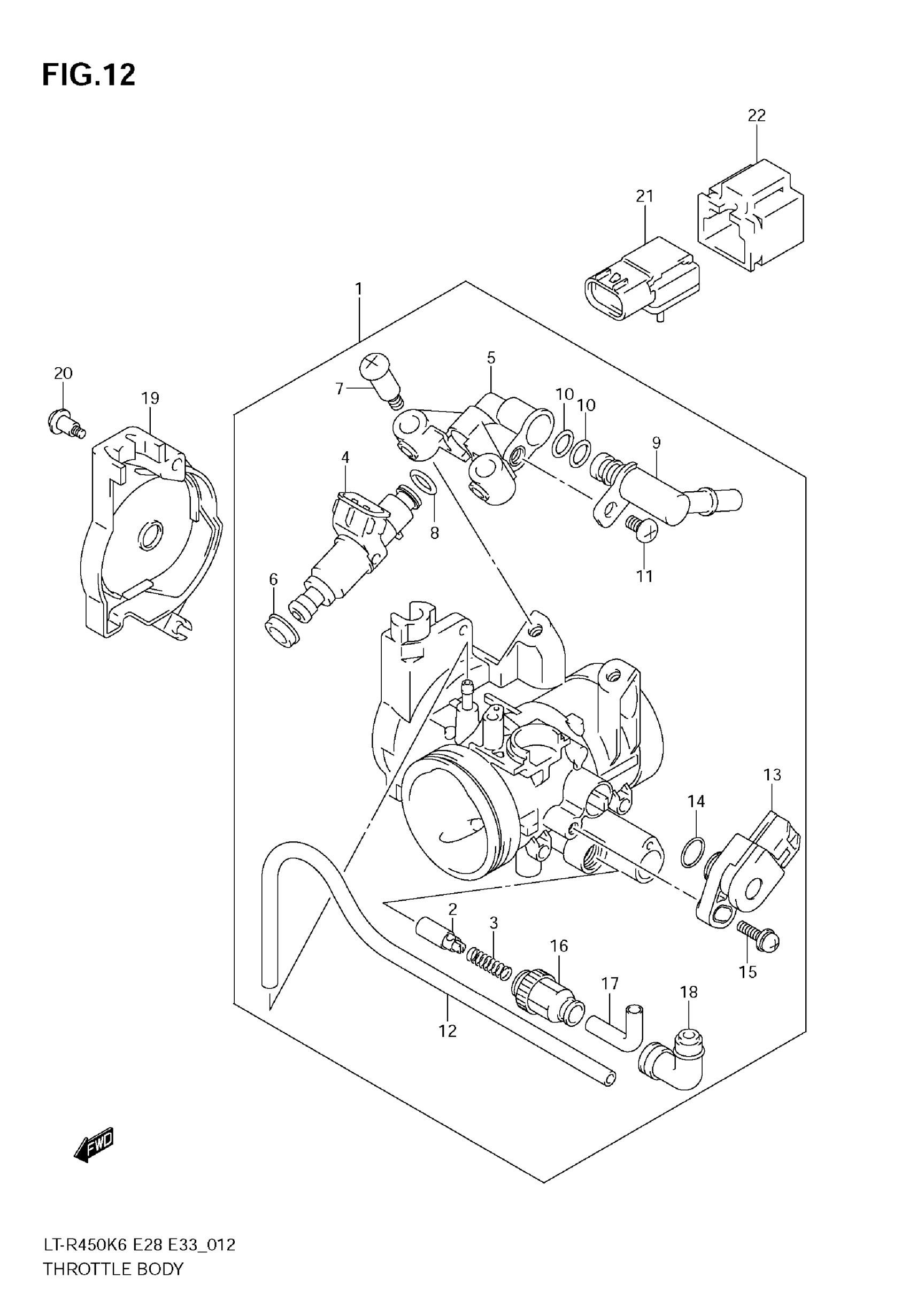

Suzuki LT-R450 (2009) THROTTLE BODY (MODEL K6/K7/K8) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE | MODEL K6/K7 This part replaces 13400-45G00.

13400-45G01

$602.53

1

BODY ASSY, THROTTLE | MODEL K8; Includes Item(s) 2 - 18

13400-45G01

$602.53

2

VALVE, STARTER | MODEL K6/K7 This part replaces 13410-45G00.

13410-45G01

$85.65

2

VALVE, STARTER | MODEL K8

13410-45G01

$85.65

3

SPRING

13271-45G00

$6.17

4

INJECTOR ASSY This part replaces 15710-45G00.

15710-45G01

$255.33

5

PIPE, FUEL

13471-45G00

$33.37

6

RING, SEAL

15722-45G00

$13.23

7

SCREW

13601-45G00

$3.25

8

O RING

15721-45G00

$10.68

9

JOINT

13685-45G00

$36.08

10

.O-RING

15721-24F00

$9.09

11

SCREW

13452-45G00

$3.58

12

HOSE This part replaces 13475-45G00.

13475-45G01

$12.77

13

SENSOR ASSY

13580-18G00

$205.80

14

O RING

13575-40F00

$4.09

15

SCREW

13605-40F00

$3.71

16

HOLDER, CABLE

13581-45G00

$3.62

17

GUIDE, CABLE

13579-45G00

$12.72

18

CAP

13681-45G00

$5.67

19

COVER

13484-45G00

$34.85

20

SCREW

13601-11F00

$2.93

21

SENSOR, AIR PRESSURE

15620-10G00

$225.50

22

HOLDER

15625-10G00

$12.40
