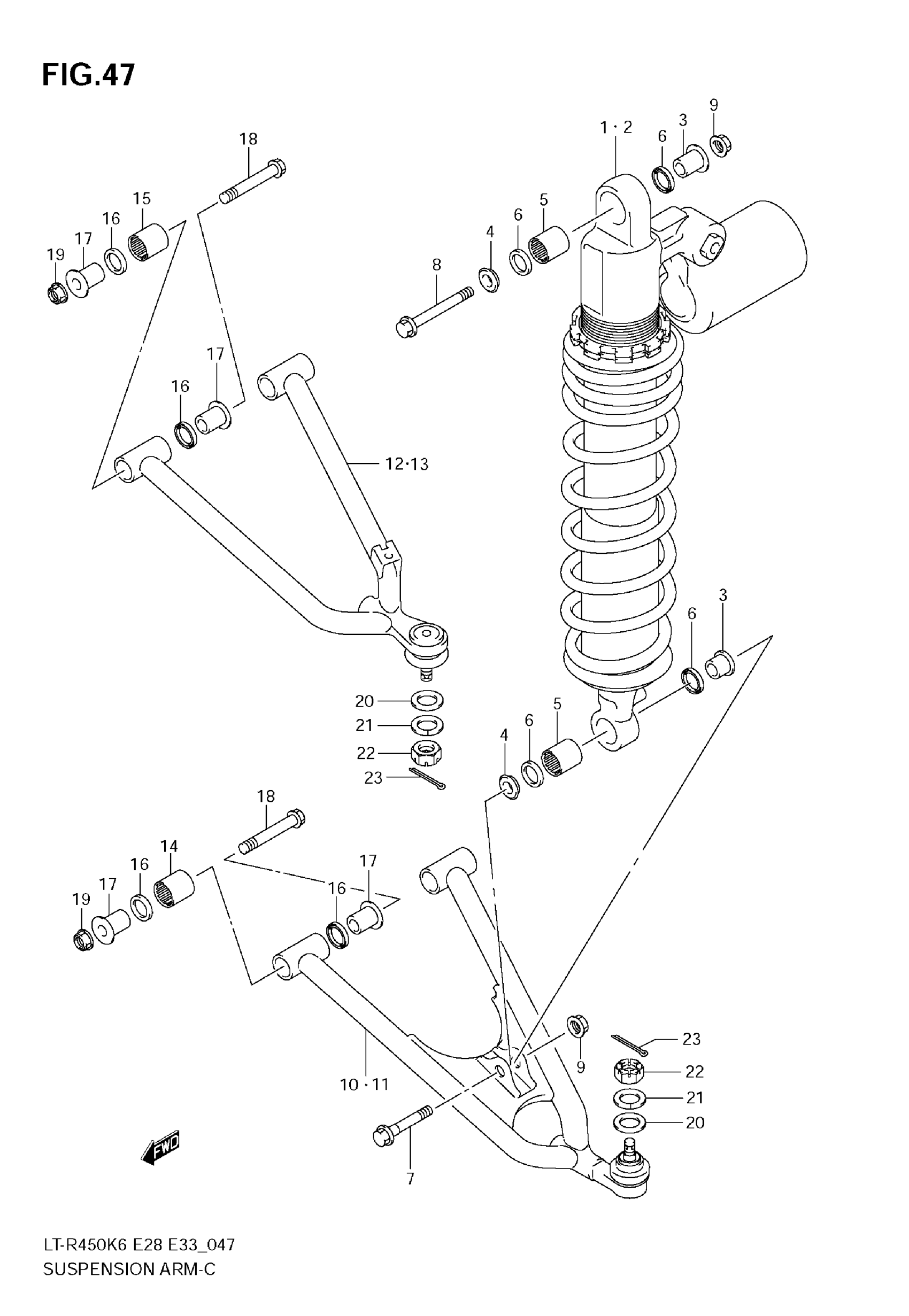

Suzuki LT-R450 (2009) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK, R (RED) | MODEL K6/K7 E33 FOR YU1

52103-45G00-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK, R (WHITE) | MODEL K6/K7 E33 FOR 30H

52103-45G00-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK, R (RED) | MODEL K6/K7 E28 FOR YU1

52103-45G10-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK, R (WHITE) | MODEL K6/K7 E28 FOR 30H

52103-45G10-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK, R (RED) | MODEL K8 E33 FOR YU1

52103-45G20-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK, R (WHITE) | MODEL K8 E33 FOR 30H,019

52103-45G20-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK, R (RED) | MODEL K8 E28 FOR YU1

52103-45G30-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK, R (WHITE) | MODEL K8 E28 FOR 30H,019

52103-45G30-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK, R (RED) | MODEL K9 E33 FOR YU1,ANT

52103-45G40-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK, R (WHITE) | MODEL K8 E33 FOR 019

52103-45G40-28W

Unavailable

1

ABSORBER ASSY, FRONT SHOCK, R (RED) | MODEL K9 E28 FOR YU1,ANT

52103-45G50-YKS

Unavailable

1

ABSORBER ASSY, FRONT SHOCK, R (WHITE) | MODEL K8 E28 FOR 019

52103-45G50-28W

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (RED) | MODEL K6/K7 E33 FOR YU1

52104-45G00-YKS

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (WHITE) | MODEL K6/K7 E33 FOR 30H

52104-45G00-28W

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (RED) | MODEL K6/K7 E28 FOR YU1

52104-45G10-YKS

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (WHITE) | MODEL K6/K7 E28 FOR 30H

52104-45G10-28W

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (RED) | MODEL K8 FOR YU1

52104-45G20-YKS

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (WHITE) | MODEL K8 E33 FOR 30H,019

52104-45G20-28W

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (RED) | MODEL K8 E28 FOR YU1

52104-45G30-YKS

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (WHITE) | MODEL K8 E28 FOR 30H,019

52104-45G30-28W

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (RED) | MODEL K9 E33 FOR YU1,ANT

52104-45G40-YKS

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (WHITE) | MODEL K9 E33 FOR 019

52104-45G40-28W

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (RED) | MODEL K9 E28 FOR YU1,ANT

52104-45G50-YKS

Unavailable

2

ABSORBER ASSY, FRONT SHOCK, L (WHITE) | MODEL K9 E28 FOR 019; Includes Item(s) 3 - 6

52104-45G50-28W

Unavailable

3

.SPACER,UPPER BRG,R

62684-36F00

$23.07

4

.SPACER,UPPER BRG,L

62685-36F00

$13.36

5

BEARING

09263-16033

$20.26

6

OIL SEAL (16X22X2.5)

09284-16005

$6.95

7

BOLT, LOWER

09103-10116

$6.02

8

BOLT, UPPER

09103-10352

$5.88

9

NUT

09159-10115

$3.55

10

ARM ASSY, SUSPENSION LOWER RH | MODEL K6/K7 This part replaces 52410-45G00-YBA.

52410-45G10-YBA

Unavailable

10

ARM ASSY, SUSPENSION LOWER RH | LT-R450K8/K9

52410-45G10-YBA

Unavailable

10

ARM ASSY, SUSPENSION LOWER RH (BLACK) | LT-R450ZK8/ZK9

52410-45G10-019

Unavailable

10

ARM ASSY, SUSPENSION LOWER RH (GOLD) | LT-R450ZK9

52410-45G10-YLC

Unavailable

11

ARM ASSY, SUSPENSION LOWER LH | MODEL K6/K7 This part replaces 52420-45G00-YBA.

52420-45G10-YBA

Unavailable

11

ARM ASSY, SUSPENSION LOWER LH | LT-R450K8/K9

52420-45G10-YBA

Unavailable

11

ARM ASSY, SUSPENSION LOWER LH (BLACK) | LT-R450ZK8/ZK9

52420-45G10-019

Unavailable

11

ARM ASSY, SUSPENSION LOWER LH (GOLD) | LT-R450ZK9

52420-45G10-YLC

Unavailable

12

ARM ASSY, SUSPENSION UPPER RH | MODEL K6/K7 This part replaces 52430-45G00-YBA.

52430-45G10-YBA

Unavailable

12

ARM ASSY, SUSPENSION UPPER RH | LT-R450K8/K9

52430-45G10-YBA

Unavailable

12

ARM ASSY, SUSPENSION UPPER RH (BLACK) | LT-R450ZK8/ZK9

52430-45G10-019

Unavailable

12

ARM ASSY, SUSPENSION UPPER RH (GOLD) | LT-R450ZK9

52430-45G10-YLC

Unavailable

13

ARM ASSY, SUSPENSION UPPER LH | MODEL K6/K7 This part replaces 52440-45G00-YBA.

52440-45G10-YBA

Unavailable

13

ARM ASSY, SUSPENSION UPPER LH | LT-R450K8/K9

52440-45G10-YBA

Unavailable

13

ARM ASSY, SUSPENSION UPPER LH (BLACK) | LT-R450ZK8/ZK9

52440-45G10-019

Unavailable

13

ARM ASSY, SUSPENSION UPPER LH (GOLD) | LT-R450ZK9

52440-45G10-YLC

Unavailable

14

BEARING, SUSPENSION ARM PIVOT

09263-17046

$41.45

15

BEARING, UPPER

09263-17046

$41.45

16

SEAL, PIVOT INNER DUST

52454-45G00

$7.44

17

SPACER

52455-45G00

$26.88

18

BOLT

09103-10033

$6.17

19

NUT

09159-10115

$3.55

20

WASHER, KNUCKLE END | MODEL K6/K7/K8

08322-0110A

$1.84

21

WASHER, KNUCKLE END LOCK | MODEL K6/K7/K8

09162-10008

$3.04

21

WASHER, KNUCKLE END LOCK | MODEL K9

09160-10082

$1.61

22

NUT, KNUCKLE END

08314-4010A

$2.71

23

COTTER PIN, KNUCKLE END

04111-2020A

$1.49
