Description

Price

1

TIE ROD, STEERING

51281-45G00

$34.55

2

KNUCKLE, STEERING RH | MODEL K6/K7/K8 This part replaces 51230-45G00.

51230-45G10

$320.88

2

KNUCKLE, STEERING RH | MODEL K9

51230-45G10

$320.88

3

KNUCKLE, STEERING LH | MODEL K6/K7/K8 This part replaces 51240-45G00.

51240-45G10

$322.47

3

KNUCKLE, STEERING LH | MODEL K9

51240-45G10

$322.47

4

ROD, END RH

51260-45G00

$57.71

5

ROD, END LH

51270-45G00

$57.71

6

NUT, TIE ROD RH

51283-09F00

$4.12

7

NUT, ROD END

08314-4010A

$2.71

8

NUT, TIE ROD LH

09140-12035

$2.92

9

COTTER PIN, ROD END

04111-2020A

$1.49

10

WASHER, ROD END LOCK | MODEL K6/K7/K8

09162-10008

$3.04

10

WASHER, ROD END LOCK | MODEL K9

09160-10082

$1.61

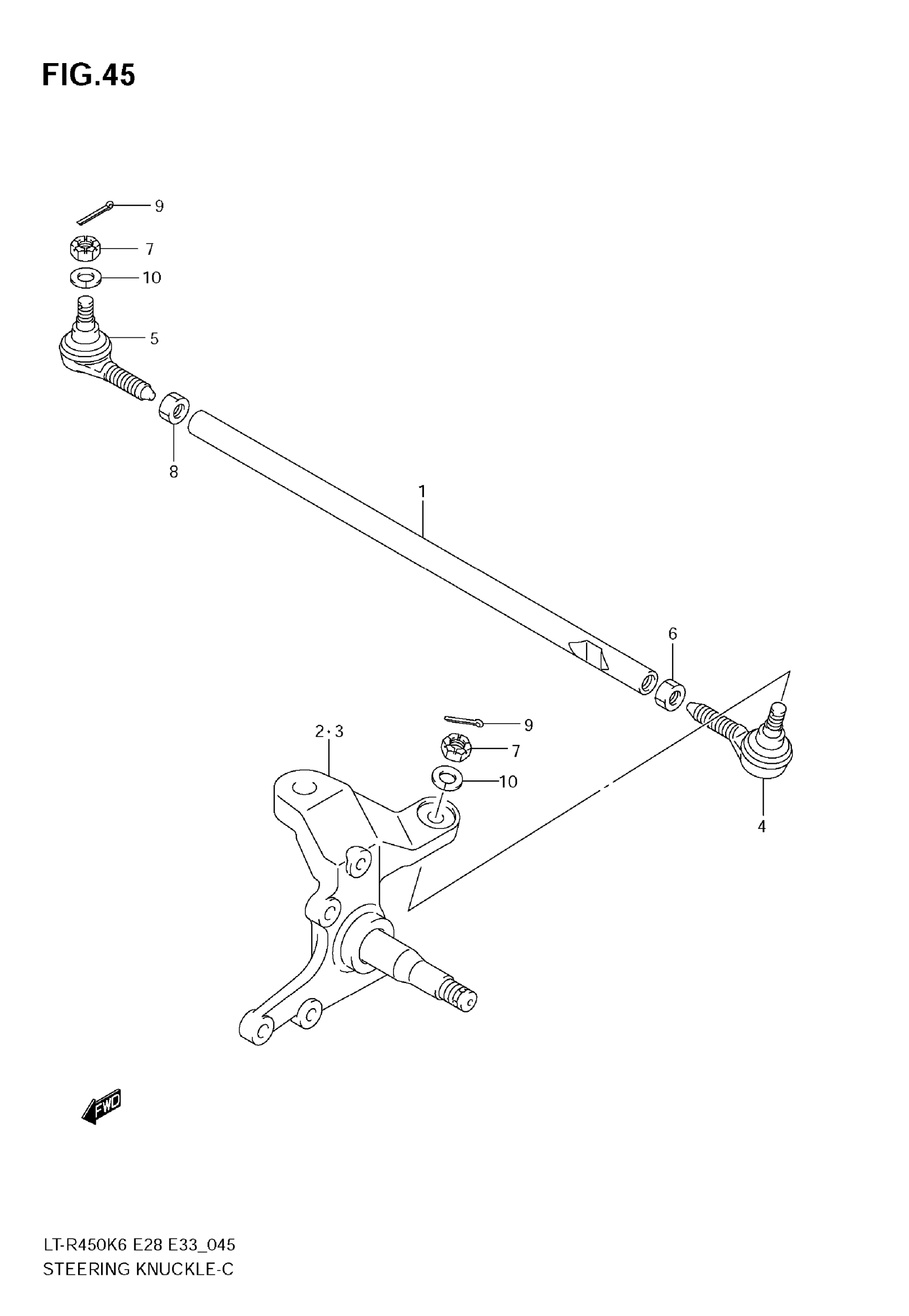

Suzuki LT-R450 (2009) STEERING KNUCKLE Diagram
