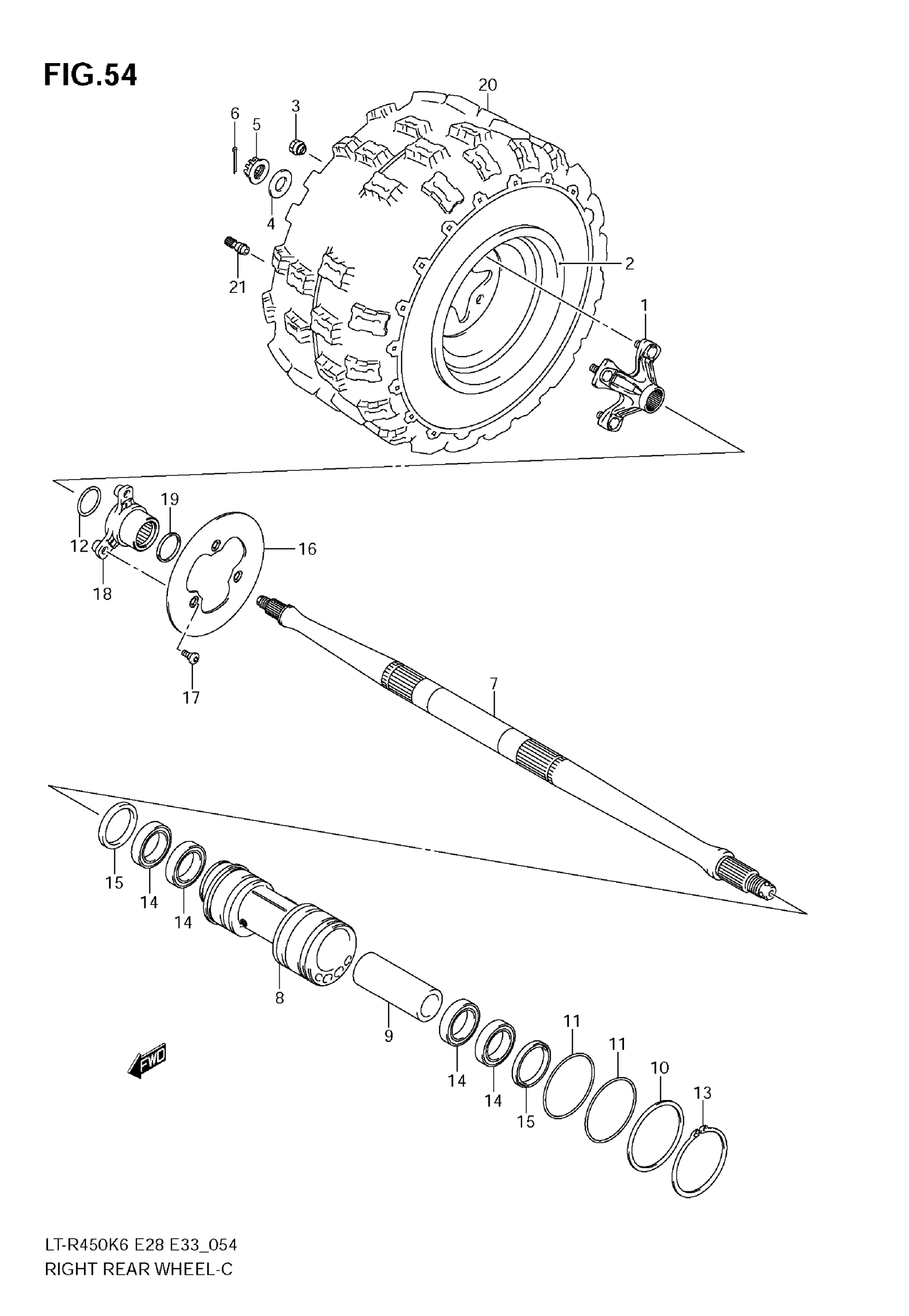

Suzuki LT-R450 (2009) RIGHT REAR WHEEL (MODEL K6/K7) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-45G01

$273.25

2

RIM, REAR WHEEL (8X8.0AT)

65310-45G00

Unavailable

3

NUT

09159-10114

$4.67

4

WASHER

09164-20002

$3.33

5

NUT, HUB This part replaces 09141-20007.

09141-20009

$30.90

6

COTTER PIN

04111-4035A

$1.37

7

AXLE, REAR

64711-45G00

Unavailable

8

HOUSING, RR AXLE BEARING

64715-45G00

$345.75

9

SPACER, RR AXLE BEARING

64731-45G00

$82.83

10

WASHER, RR AXLE HOUSING

64725-45G00

$20.60

11

SEAL, RR AXLE BRG HOUSING DUST

09281-89001

$8.60

12

RING, STOPPER

09380-40004

$3.48

13

CIRCLIP

09380-90001

$22.30

14

BRG,RR AXLE,40X This part replaces 09262-40015.

09262-40020

$25.08

15

SEAL, RR AXLE BEARING DUST

09283-52005

$13.99

16

DISC, REAR BRAKE

69211-45G00

$326.10

17

BOLT, DISC

09106-08160

$3.22

18

HOUSING, RR DISC PLATE

69212-45G01

$280.18

19

SEAL, RR DISC HOUSING DUST

09281-40001

$5.67

20

TIRE, REAR

65110-45G00

Unavailable

21

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10
