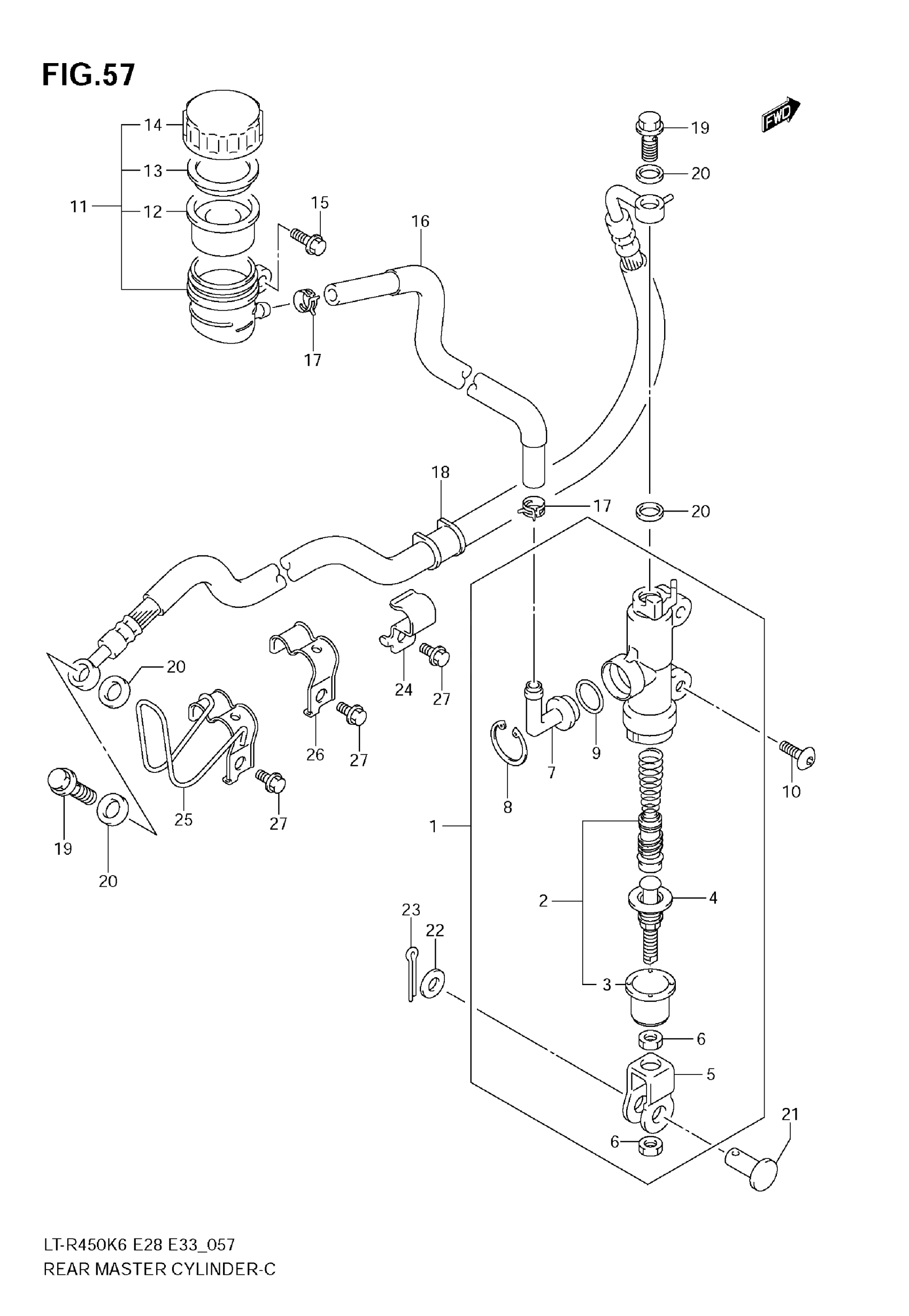

Suzuki LT-R450 (2009) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-45G00

$312.98

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

ROD, PUSH

69670-36E00

$29.65

5

YOKE

69692-29F00

$21.77

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

CIRCLIP

69674-00B20

$3.97

9

O RING

69686-34200

$2.93

10

BOLT

09139-06139

$3.23

11

TANK ASSY, REAR RESERVOIR | Includes Item(s) 12 - 14

69740-03D00

$75.90

12

DIAPHRAGM

69667-00B20

$15.68

13

PLATE

69668-00B20

$7.67

14

CAP

69669-03D00

$22.65

15

BOLT

01547-0616A

$2.03

16

HOSE, REAR RESERVOIR TANK

69730-45G00

$40.22

17

CLIP

09401-12404

$2.34

18

HOSE COMP,REAR This part replaces 69480-45G00.

69480-45G01

$117.85

19

BOLT, UNION, 10X1.25X22

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

PIN

09200-08048

$2.92

22

WASHER

09160-08090

$2.39

23

PIN, COTTER

04111-2015A

$1.49

24

CLAMP, RR BRAKE HOSE

69261-45G00

Unavailable

25

GUIDE, RR BRAKE HOSE

69270-45G00

Unavailable

26

GUIDE, RR BRAKE HOSE

69271-45G00

$12.82

27

BOLT

01547-0612A

$2.03
