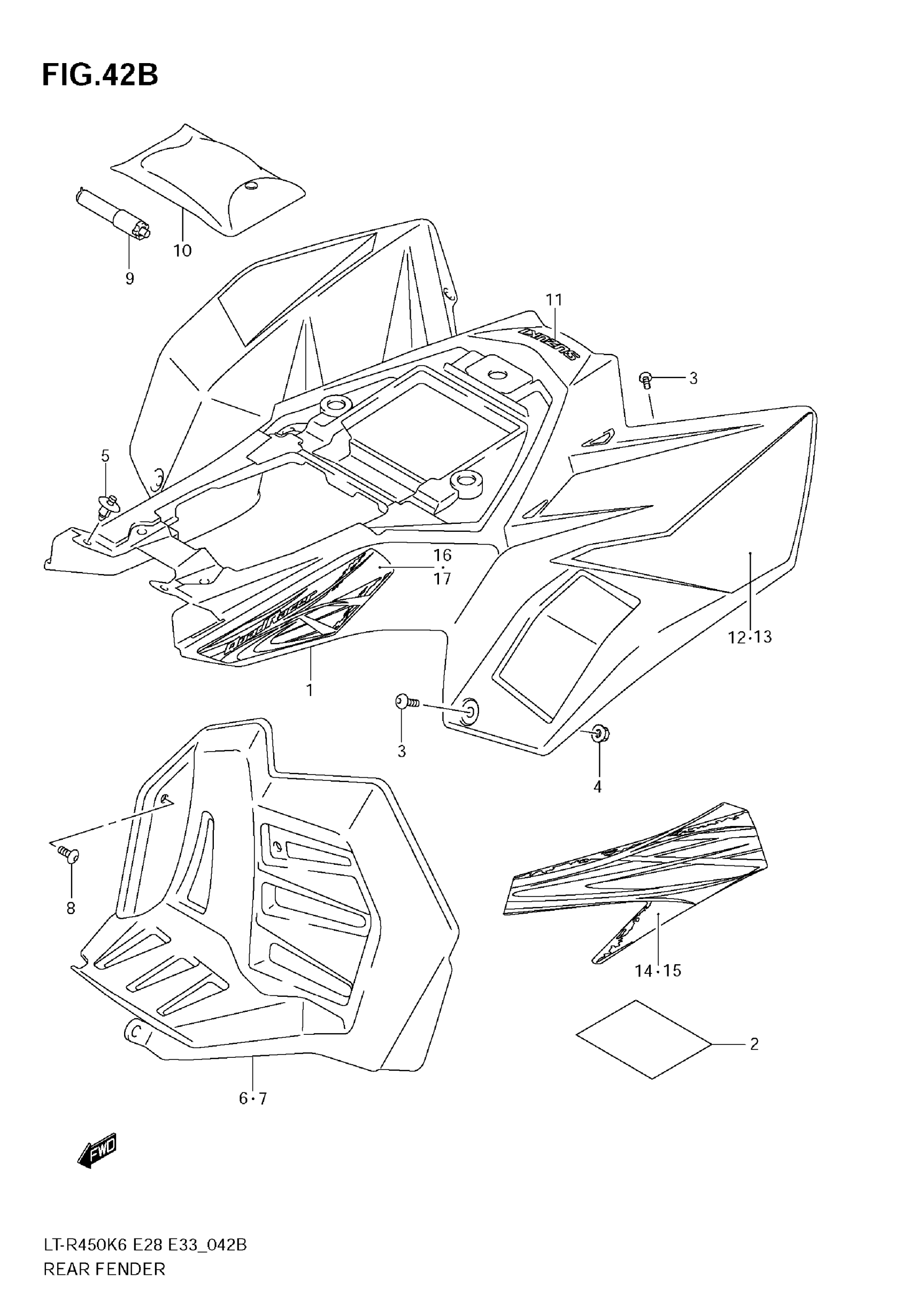

Suzuki LT-R450 (2009) REAR FENDER (MODEL K9) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-45G02-YU1

$697.98

1

FENDER, REAR (BLACK) | LT-R450Z FOR 019

63111-45G02-019

$1,276.94

1

FENDER, REAR (RED) | LT-R450Z FOR ANT

63111-45G02-YT9

$697.98

2

CUSHION

44545-45G00

Unavailable

3

SCREW

09139-06158

$4.90

4

NUT

08319-3106A

$2.03

5

CLIP

09409-07333

$2.31

6

MUDGUARD, RH (BLACK)

63331-45G00-291

$114.48

7

MUDGUARD, LH (BLACK)

63341-45G00-291

$114.48

8

BOLT

09139-06158

$4.90

9

GUAGE, AIR

96200-05G10

Unavailable

10

TOOL ASSY This part replaces 09800-21055.

09800-21102

$20.21

11

EMBLEM | LT-R450

68171-44B00-GY8

$12.73

11

EMBLEM | LT-R450Z FOR 019

68171-44B00-CT5

Unavailable

11

EMBLEM | LT-R450Z FOR ANT

68171-44B00-ANT

Unavailable

12

TAPE, RH | LT-R450

68175-45G40-GTD

Unavailable

13

TAPE, LH | LT-R450

68176-45G40-GTD

Unavailable

14

TAPE, RH | LT-R450Z FOR 019

68175-45GA0-GVL

Unavailable

14

TAPE, RH | LT-R450Z FOR ANT

68175-45GA0-GVM

Unavailable

15

TAPE, LH | LT-R450Z FOR 019

68176-45GA0-GVL

Unavailable

15

TAPE, LH | LT-R450Z FOR ANT

68176-45GA0-GVM

Unavailable

16

TAPE, SIDE RH | LT-R450Z FOR 019

68175-45GB0-GVZ

Unavailable

16

TAPE, SIDE RH | LT-R450Z FOR ANT

68175-45GB0-GWA

Unavailable

17

TAPE, SIDE LH | LT-R450Z FOR 019

68176-45GB0-GVZ

Unavailable

17

TAPE, SIDE LH | LT-R450Z FOR ANT

68176-45GB0-GWA

Unavailable
