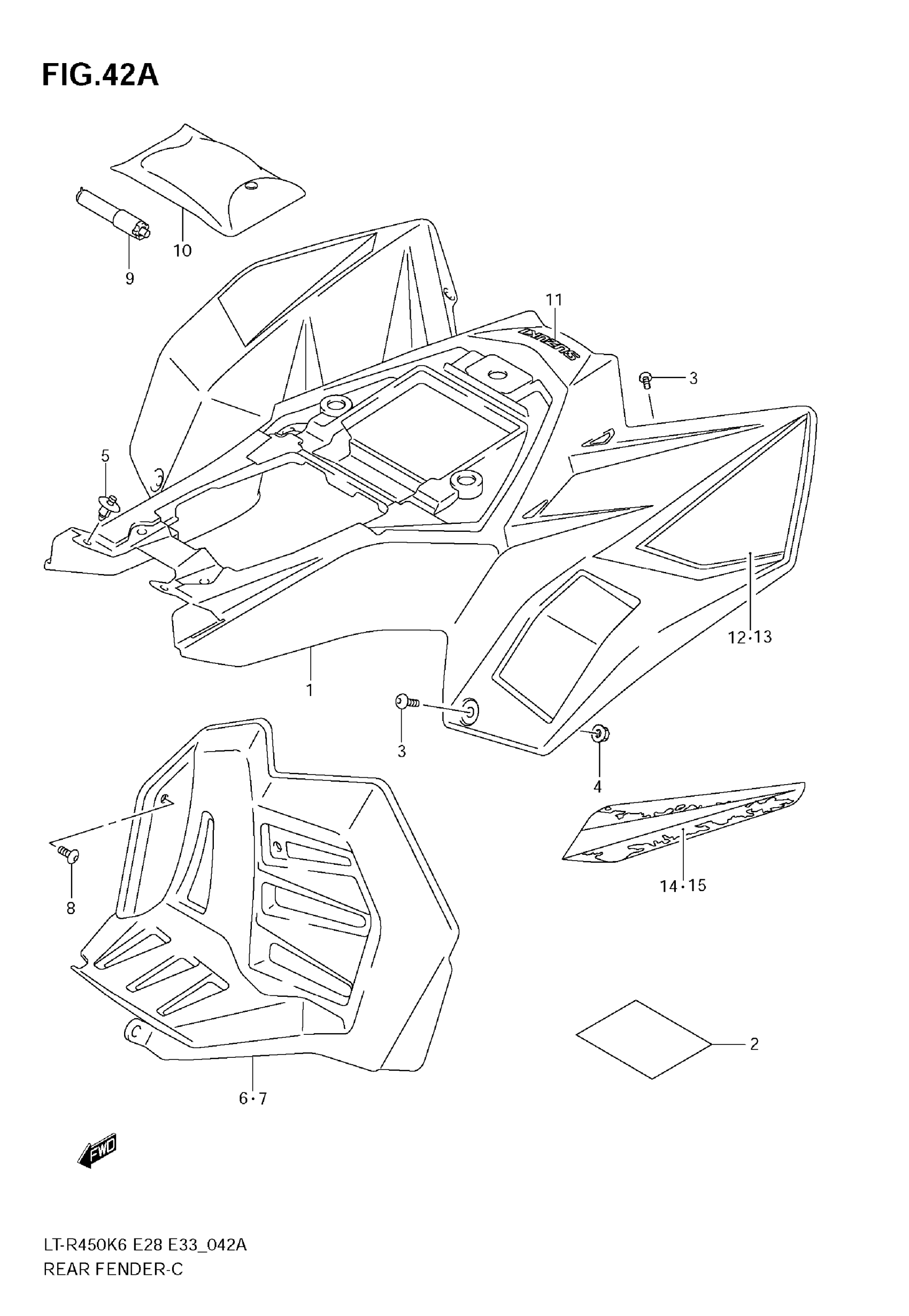

Suzuki LT-R450 (2009) REAR FENDER (MODEL K8) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW) This part replaces 63111-45G00-YU1.

63111-45G02-YU1

$697.98

1

FENDER,REAR This part replaces 63111-45G00-30H.

63111-45G02-30H

$685.07

1

FENDER, REAR (BLACK) | LT-R450Z This part replaces 63111-45G00-019.

63111-45G02-019

$1,276.94

2

CUSHION

44545-45G00

Unavailable

3

SCREW

09139-06158

$4.90

4

NUT This part replaces 08319-31068.

08319-31067

$2.03

5

CLIP

09409-07333

$2.31

6

MUDGUARD, RH (BLACK)

63331-45G00-291

$114.48

7

MUDGUARD, LH (BLACK)

63341-45G00-291

$114.48

8

BOLT

09139-06158

$4.90

9

GUAGE, AIR

96200-05G10

Unavailable

10

TOOL ASSY This part replaces 09800-21055.

09800-21102

$20.21

11

EMBLEM | FOR YU1

68171-44B00-GY8

$12.73

11

EMBLEM | FOR 30H

68171-44B00-8YM

$12.48

11

EMBLEM | LT-R450Z

68171-44B00-BJB

Unavailable

12

TAPE, RH | FOR YU1

68175-45G20-ENF

$64.78

12

TAPE, RH | FOR 30H

68175-45G20-ENE

Unavailable

13

TAPE, LH | FOR YU1

68176-45G20-ENF

Unavailable

13

TAPE, LH | FOR 30H

68176-45G20-ENE

Unavailable

14

TAPE, RH | LT-R450Z

68175-45G30-EUS

$57.77

15

TAPE, LH | LT-R450Z

68176-45G30-EUS

$57.77
