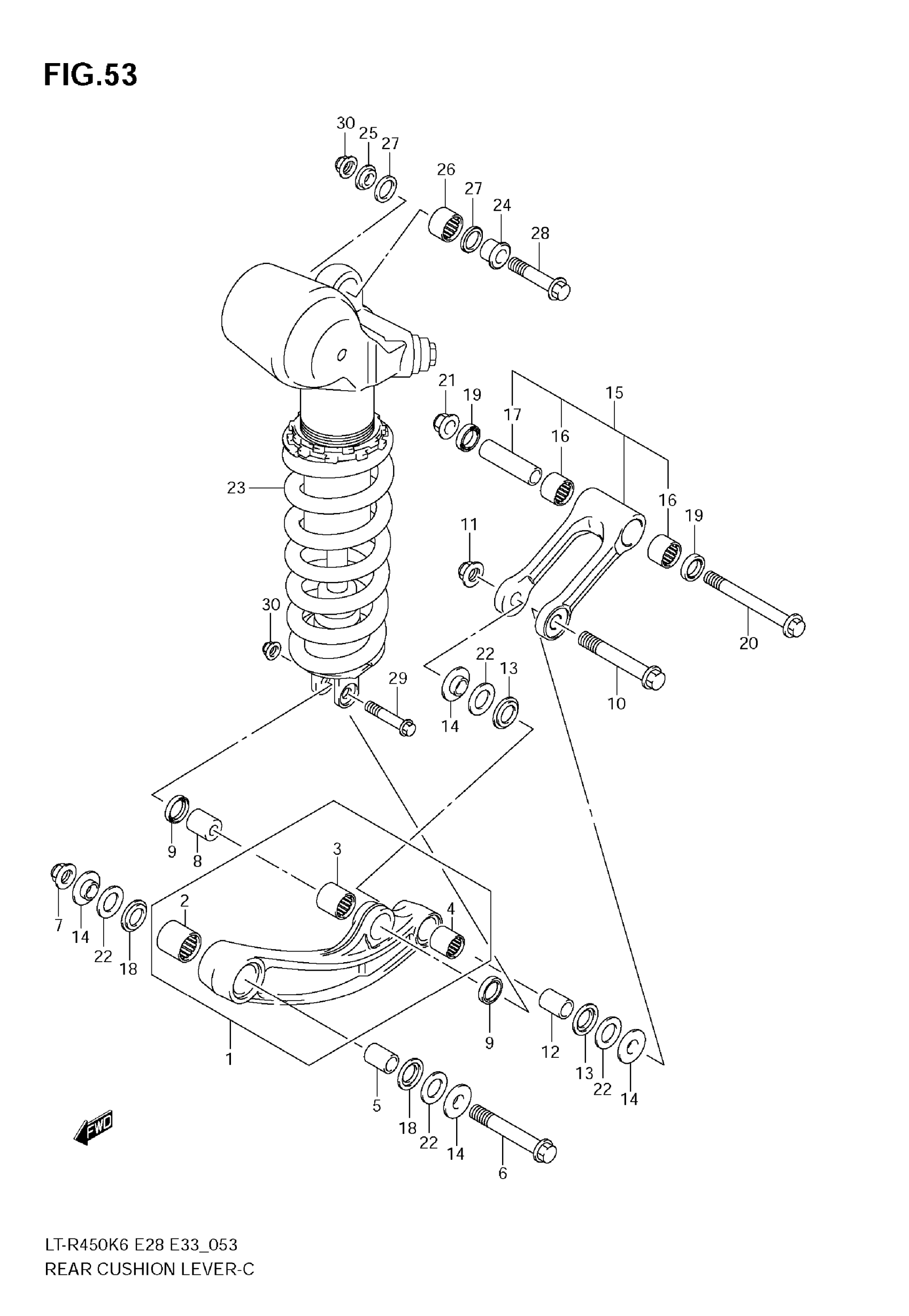

Suzuki LT-R450 (2009) REAR CUSHION LEVER (MODEL K6/K7) Diagram

#

Description
Price

1

LEVER SET, CUSHION | Includes Item(s) 2 - 4

62600-45810

Unavailable

2

BEARING, FRONT (17X24X25)

09263-17033

$28.08

3

BEARING, CENTER (20X26X12)

09263-20083

$24.56

4

BEARING, REAR (17X24X25)

09263-17033

$28.08

5

SPACER, FRONT

62626-45G00

$24.52

6

BOLT, FRONT

62668-27A00

$12.28

7

NUT

09159-12056

$7.37

8

SPACER, CENTER

62684-36E00

$16.57

9

SEAL, CENTER DUST

09284-20001

$4.71

10

BOLT, REAR | MODEL K6

62668-27A00

$12.28

10

BOLT, REAR | MODEL K7

62658-45G00

$10.55

11

NUT

09159-12056

$7.37

12

SPACER, REAR

62626-45G00

$24.52

13

SEAL, REAR

62624-13E00

$10.28

14

SPACER, CUSHION LEVER SIDE

62647-45G00

$27.40

15

ROD SET,REAR CU | Includes Item(s) 16 - 17 This part replaces 62600-45820.

62600-45830

$341.08

16

BEARING, ROD (20X24X15)

09263-17032

$27.45

17

SPACER, ROD

62646-45G00

$24.52

18

SEAL, DUST

62624-13E00

$10.28

19

SEAL, ROD INNER

52454-45G00

$7.44

20

BOLT, ROD This part replaces 62657-37F10-A05.

62657-37F10

$10.65

21

NUT

09159-12056

$7.37

22

WASHER, RR CUSHION, LEVER

62625-45G00

$5.50

23

ABSORBER ASSY, REAR SHOCK (RED) | E33 FOR YU1

62100-45G00-YKS

Unavailable

23

ABSORBER ASSY, REAR SHOCK (WHITE) | E33 FOR 30H

62100-45G00-28W

Unavailable

23

ABSORBER ASSY, REAR SHOCK (RED) | E28 FOR YU1

62100-45G10-YKS

Unavailable

23

ABSORBER ASSY, REAR SHOCK (WHITE) | E28 FOR 30H; Includes Item(s) 24 - 27

62100-45G10-28W

Unavailable

24

.SPACER,UPPER BRG,R

62684-36F00

$23.07

25

.SPACER,UPPER BRG,L

62685-36F00

$13.36

26

BEARING

09263-16033

$20.26

27

OIL SEAL (16X22X2.5)

09284-16005

$6.95

28

BOLT, UPPER

09103-10030

$6.45

29

BOLT, LOWER

09103-10149

$3.70

30

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55
