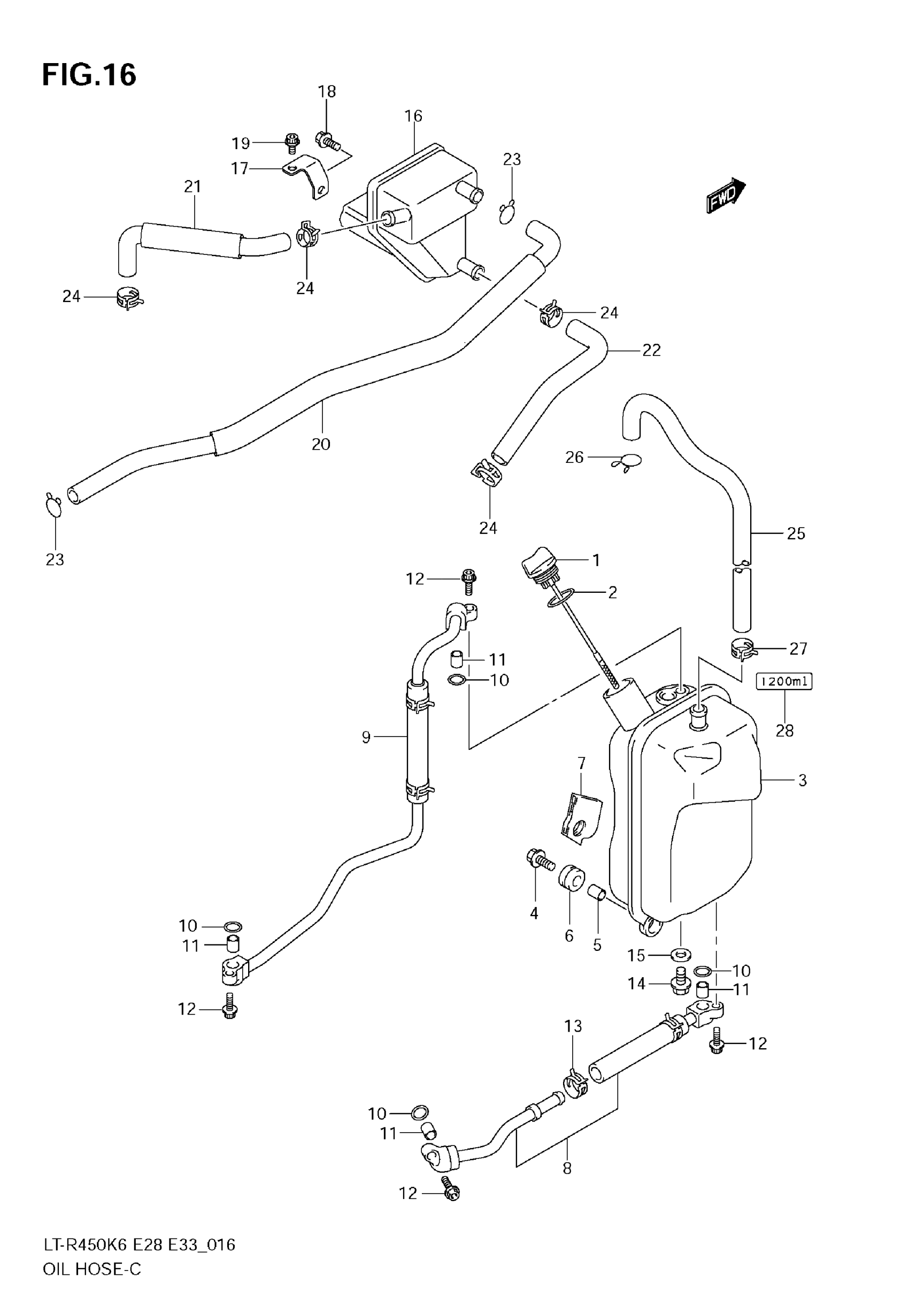

Suzuki LT-R450 (2009) OIL HOSE Diagram

#

Description
Price

1

GAUGE, OIL LEVEL

11971-45G01

$13.35

2

O-RING

09280-17003

$1.65

3

TANK, OIL

16450-45G00

$322.47

4

BOLT

09118-06097

$2.50

5

SPACER

09180-06290

$2.35

6

CUSHION

09320-10042

$3.12

7

CUSHION,OIL TAN This part replaces 16482-45G00.

16482-45G01

$25.53

8

HOSE, OIL TANK RH

16460-45G00

$137.57

9

HOSE, OIL TANK LH | MODEL K6/K7/K8

16470-45G00

$175.18

9

HOSE, OIL TANK LH | MODEL K9

16470-45G10

$175.18

10

O-RING

09280-11005

$4.36

11

PIN

04211-11129

$1.76

12

BOLT | MODEL K6/K7/K8

07120-0620B

$3.04

12

BOLT | MODEL K9

07120-0620A

$2.72

13

CLIP

09401-16405

$4.00

14

PLUG, OIL DRAIN | MODEL K6/K7/K8

01550-0812B

$2.73

14

BOLT (8X12) | MODEL K9

01550-0812A

$2.32

15

GASKET (8.2X14X1)

09168-08016

$1.65

16

TANK, OIL RETURN

11330-45G00

$67.88

17

BRACKET,OIL RET This part replaces 11335-45G00-A05.

11335-45G00

$6.80

18

BOLT

01547-0612A

$2.03

19

BOLT

07120-0612A

$2.50

20

HOSE

11332-45G00

$34.28

21

HOSE

11333-45G00

$18.87

22

HOSE | MODEL K6/K7/K8 This part replaces 11334-45G00.

11334-45G10

$17.90

22

HOSE | MODEL K9

11334-45G10

$17.90

23

CLIP

09401-15101

$2.26

24

CLIP

09401-15404

$2.26

25

HOSE

16481-45G00

$38.55

26

CLIP

09401-12403

$1.96

27

CLIP

09401-12405

$2.26

28

NOTE, ENGINE OIL

68322-45G00

Unavailable
