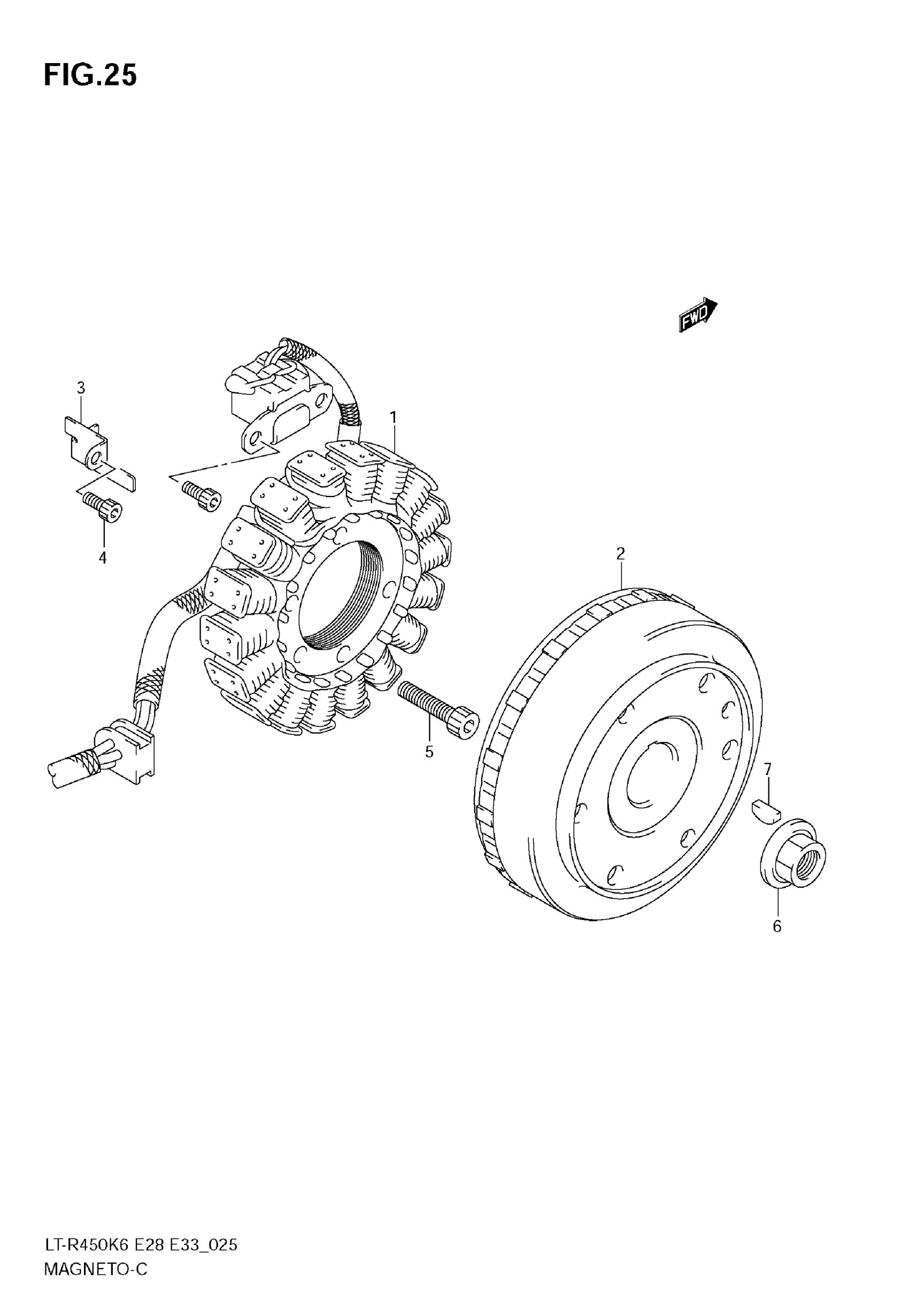

Suzuki LT-R450 (2009) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY | MODEL K6/K7/K8

32101-45G00

$598.83

1

STATOR ASSY | MODEL K9 This part replaces 32101-45G10.

32101-45G11

$631.88

2

ROTOR ASSY

32102-45G00

$562.43

3

CLAMP, MAGNETO LEAD NO.1 | MODEL K6/K7/K8

32371-13E20

$5.17

3

CLAMP, MAGNETO LEAD NO.1 | MODEL K9

32371-33H00

Unavailable

4

BOLT, PULSER/CLAMP

07130-0512A

$2.19

5

BOLT, STATOR (6X25)

09106-06118

$3.85

6

NUT, MAGNETO ROTOR

31792-07G00

$12.38

7

KEY

09420-04008

$3.42
